Description
Content Volume: 1 piece
Axis Diameter (mm): 60
Load Type: Light Load

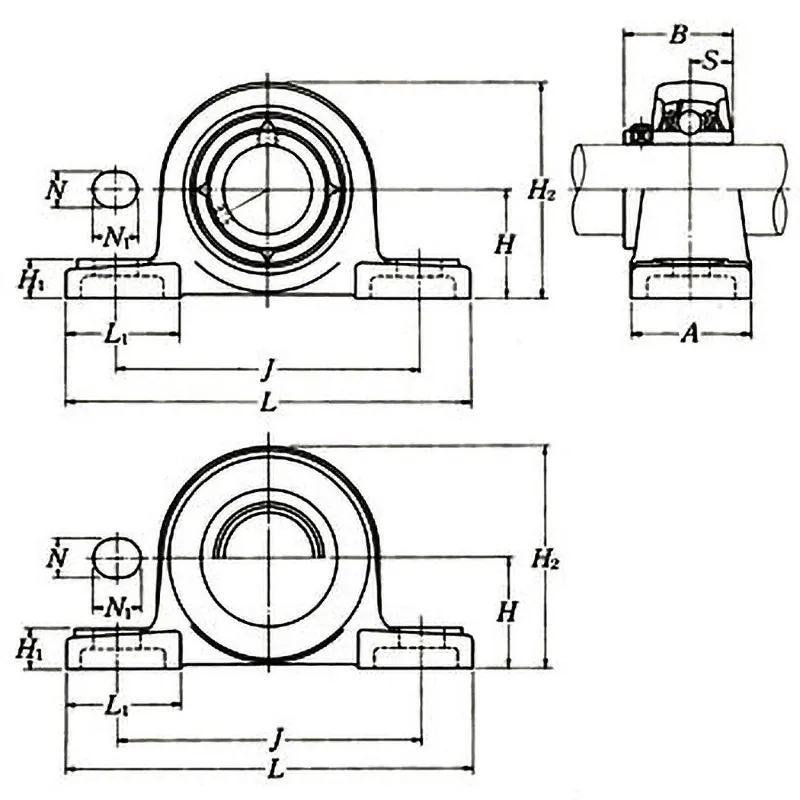

Dimension A (mm): 70
Dimension B (mm): 65.1
Dimension H (mm): 69.8
Dimension H1 (mm): 25
Dimension H2 (mm): 138
Dimension J (mm): 184
Dimension L (mm): 241
Dimension L1 (mm): 70
Dimension N (mm): 20
Dimension N1 (mm): 23
Dimension S (mm): 25.4
Axis Diameter (mm): 60

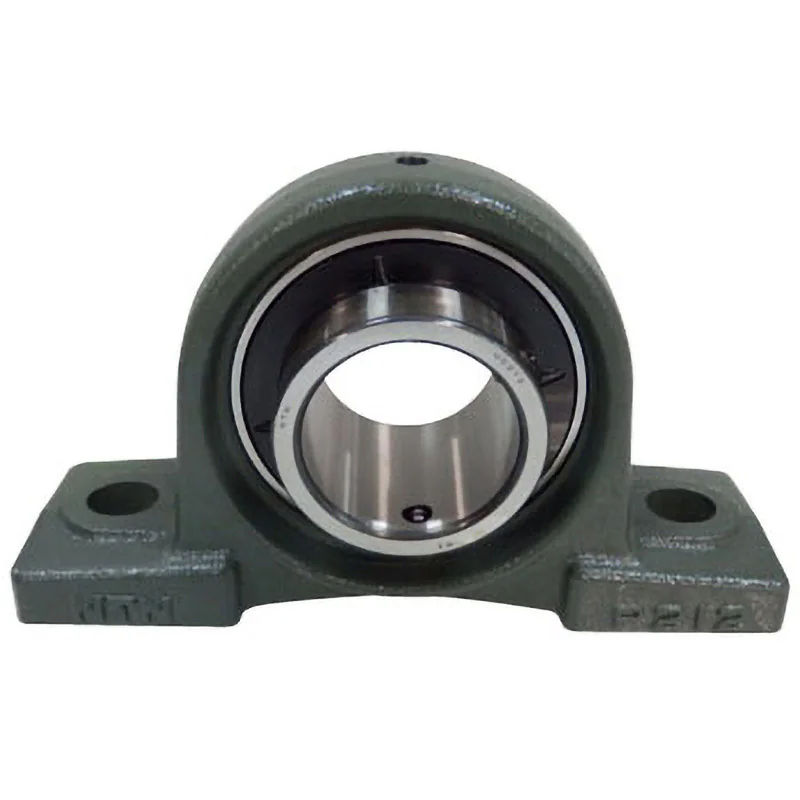

Shape: Pillow Block Unit
Trusco

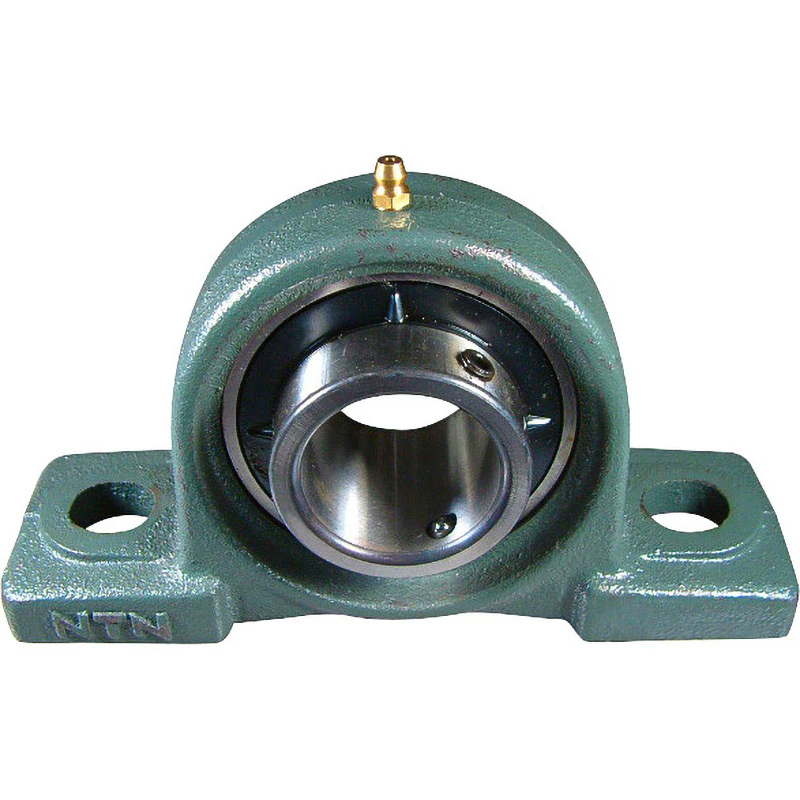

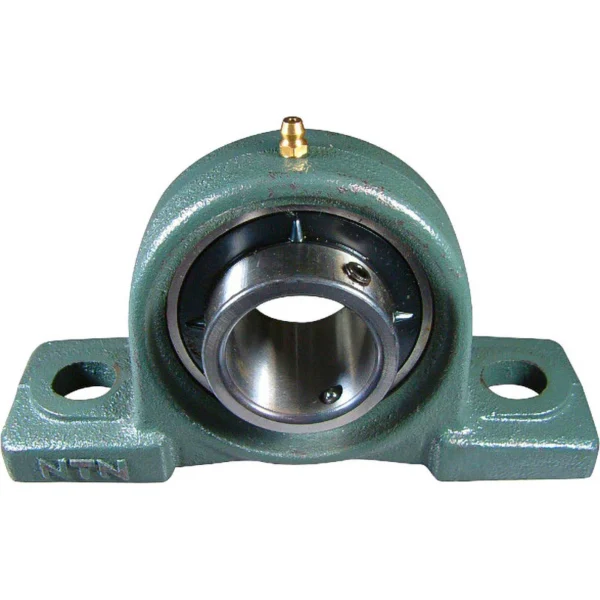

Grease Nipple: With Grease Nipple
Load Type: Light Load
Cover: No Cover
Axis Hole Type: Cylindrical Hole Type (with Set Screw)
Weight (kg): 4.6 (Reference)
Seal Standard: Nitrile Rubber Seal
Basic Static Load Rating (kN): 36
Basic Dynamic Load Rating (kN): 52.5
Mounting Bolt Specification: M16
This is a representative type of bearing unit, corresponding to the combination of the traditionally widely used Plummer Block and self-aligning ball bearings, allowing for easy installation onto the shaft by simply tightening the set screw with a ball. It is most commonly used in transmission devices and general machinery.
