Description
Dimension B (mm): 12
Dimension C1 (mm): 9
Dimension G (mm): M8*1.25
Dimension d (mm): 8
Dimension d1 (mm): 10.4
Dimension d2 (mm): 22
Dimension h (mm): 42
Dimension l1 (mm): 25
Dimension l2 (mm): 53
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 32
Type: Male Threaded
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 14000
Static Load Capacity (N): 7760
Ball Diameter (mm): 15.875

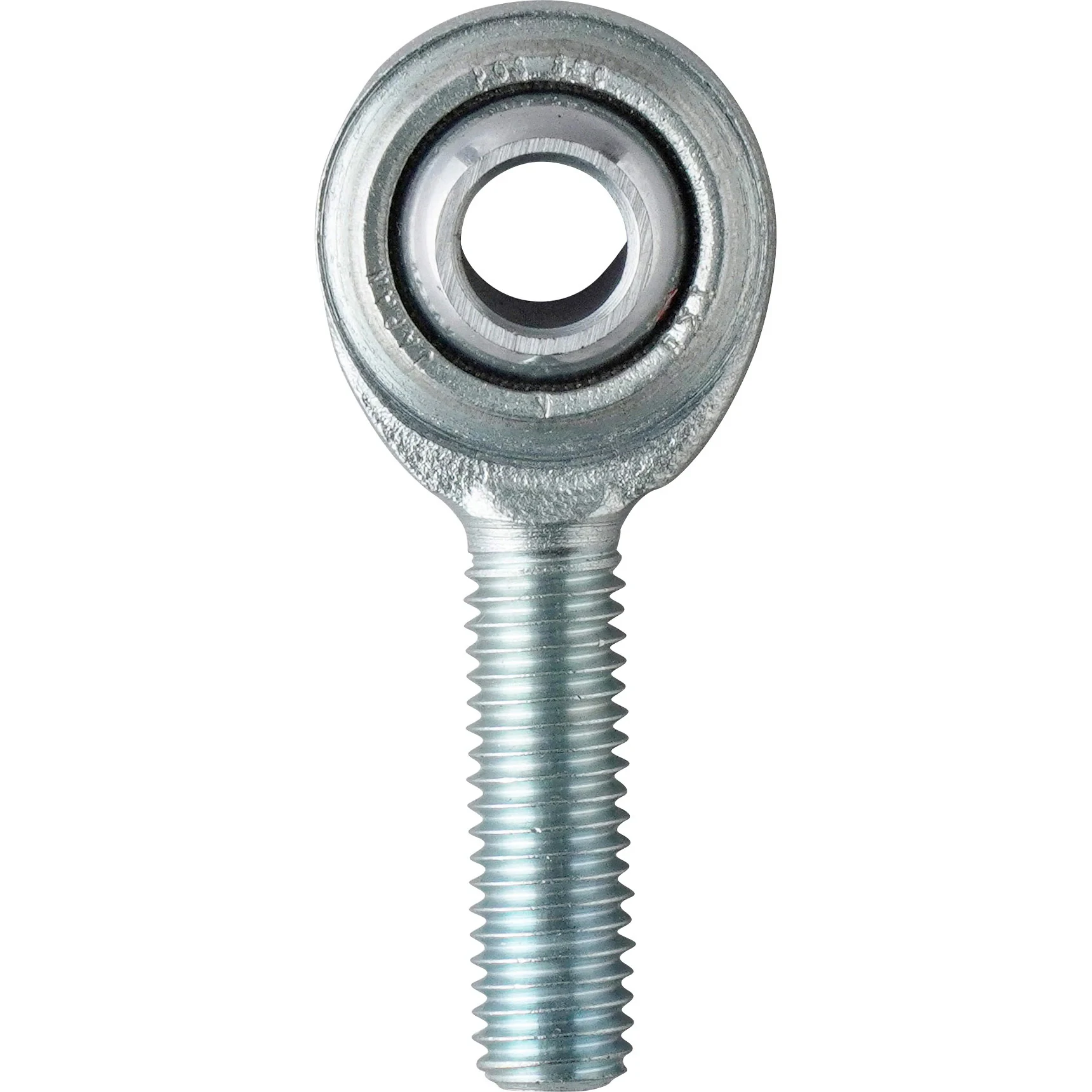

This is a self-aligning spherical sliding bearing that can handle large radial loads and bi-directional axial loads simultaneously with a small capacity.
The pillow ball Rod End｣ｬ is easy to install as it has either internal or external threads machined into the body.
It is used in control mechanisms and link mechanisms in machine tools｣ｬ textile machines｣ｬ and packaging machines.
