Osaka Soul 」ャT-slot nut(Square) 1814-TN

¥599

SKU: r2213553683fd Category:

Description

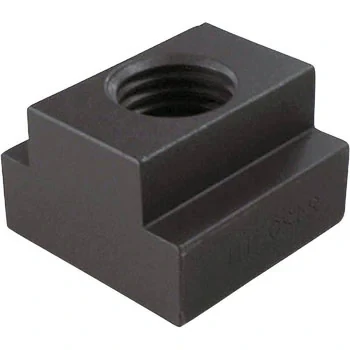

T-slot nut (Square) 1814-TN
T-slot width (mm): 17.5
Compatible bolt diameter: M14*2.0
Height (mm): (protruding width part) 11.1
Overall height (mm): 19.0
Usage: For fixing workpieces on milling machines and drilling machines. For securing bolts in T-slots.
TRUSCO Part No. 398-7116
Material: S45C
Length (mm): 30
Width (mm): 28.5
Weight (g): 86
Surface treatment: Black Oxide
Hardness HRC: 30

The bolt does not penetrate, so it will not damage the bed.
