Description
Dimension B (mm): 9
Dimension C1 (mm): 6.75
Dimension G (mm): M6*1
Dimension d (mm): 6
Dimension d1 (mm): 9
Dimension d2 (mm): 18
Dimension h (mm): 36
Dimension l1 (mm): 22
Dimension l2 (mm): 45
Chamfer Dimension r1 (mm): 0.2
Note: 1 N is approximately equal to 0.102 kgf
Material: Chrome plating (spherical inner ring)
Material (Body): Zinc chromate
Mass (g): 19
Type: With male thread
Material (Bushing): Special copper alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 8410
Static Load Capacity (N): 4730
Ball Diameter (mm): 12.700
This is a self-aligning spherical sliding bearing capable of simultaneously bearing large radial loads and axial loads in both directions with a small capacity.

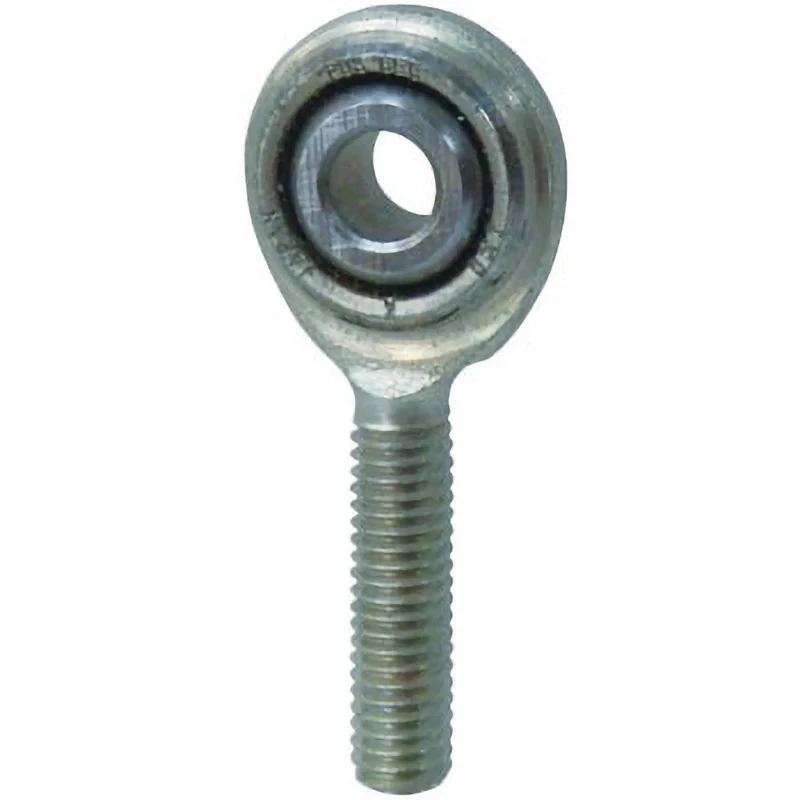

The Pillow Ball Rod End｣ｬ has either a female or male thread processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ packaging machines｣ｬ and others.
