Description
Description
Quantity: 1 piece
Coil Rated Voltage (V): AC100
Compatible Motor Capacity (200闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
Compatible Motor Capacity (380闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 4
Compatible Motor Capacity (500闂?50V) (kW): Three-phase squirrel cage motor (AC-3 class): 5.5
Compatible Motor Capacity (200闂?20V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7

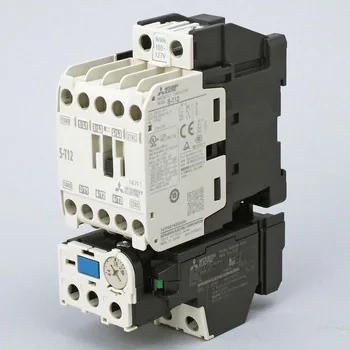

Part Number: MSO-T12 0.75KW 200V AC100V
Motor Capacity (kW): 0.75
Auxiliary Contacts: 1a1b
Frame: T12
Compatible Thermal Relay: 2-element thermal relay included, Model: TH-T18
Heater Rating (A): 3.6
Heater Element Rated Adjustment Range (A): 2.8闂?.4
Coil Rated Voltage (V): AC100
Type: Open type
Type: Electromagnetic Contactor
Operating Mode: Non-reversible
Main Circuit Voltage (V): 200
Specifications: Terminal Section Standard Specification, Operation Coil Input: Continuous/7VA, Inrush Instantaneous/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.38
Mounting Method: IEC 35mm rail, screw
Series: MSO-T
Rated Insulation Voltage (V): 690
Rated Operating Current (A): Three-phase squirrel cage motor (AC-3 class): (200闂?20V) 13 / (380闂?40V) 9 / (500闂?50V) 9, Resistance load (AC-1 class): (200闂?20V) 20 / (380闂?40V) 13
Mechanical Durability: 10 million operations
Electrical Durability: AC-3 class: 2 million operations, AC-4 class: 30,000, AC-1 class: 500,000
Rated Impulse Voltage (kV): 6
Contamination Degree (Operating Environment): 3
Switching Frequency (times/hour): AC-3 class: 1800, AC-4 class: 300, AC-1 class: 1200
Open Heat Current (A): 20
Operation Method: Operation coil, Operation circuit: Standard specification
Compatible Motor Capacity (200闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
Compatible Motor Capacity (380闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 4
Compatible Motor Capacity (500闂?50V) (kW): Three-phase squirrel cage motor (AC-3 class): 5.5
Compatible Motor Capacity (200闂?20V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
Miniaturization of Electromagnetic Contactor has achieved reduction in size across many rated specifications.
