Description
Contents: 1 piece
Axis diameter (mm): 55
Load type: Light load

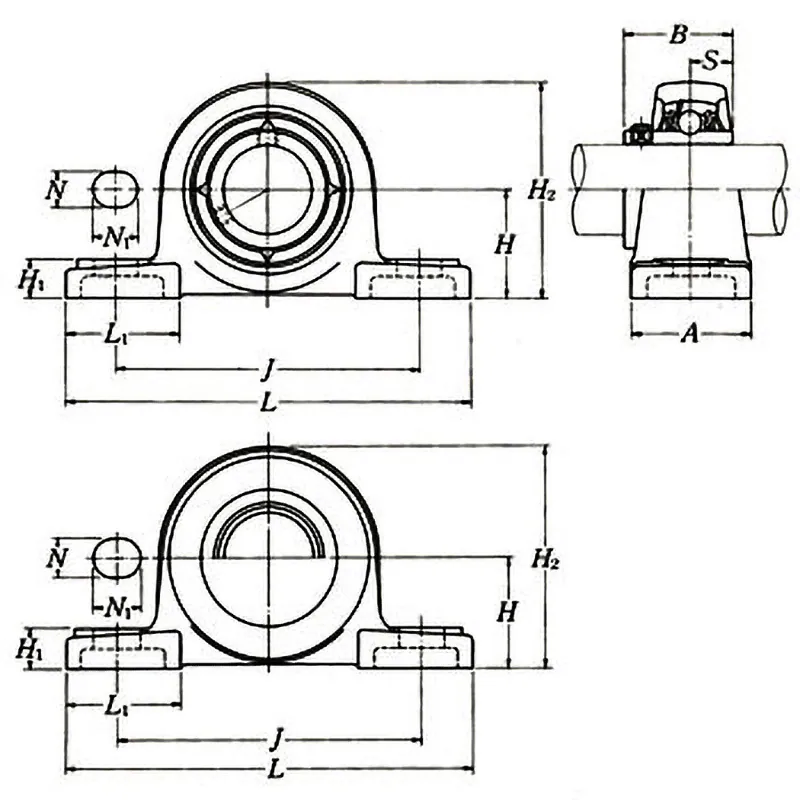

Dimension A (mm): 60
Dimension B (mm): 55.6
Dimension H (mm): 63.5
Dimension H1 (mm): 23
Dimension H2 (mm): 126
Dimension J (mm): 171
Dimension L (mm): 219
Dimension L1 (mm): 65
Dimension N (mm): 20
Dimension N1 (mm): 23
Dimension S (mm): 22.2
Axis diameter (mm): 55

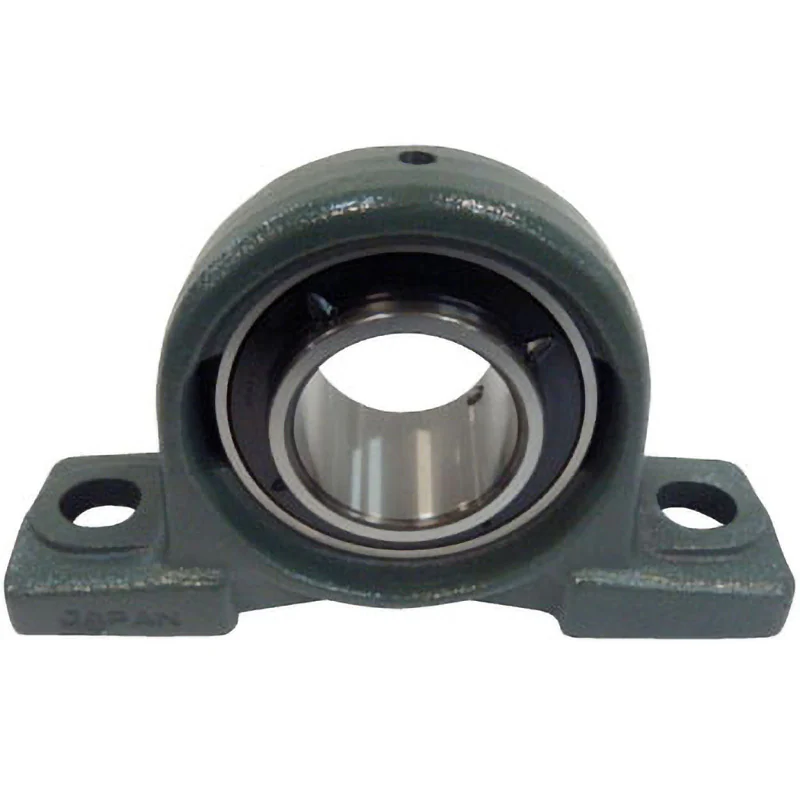

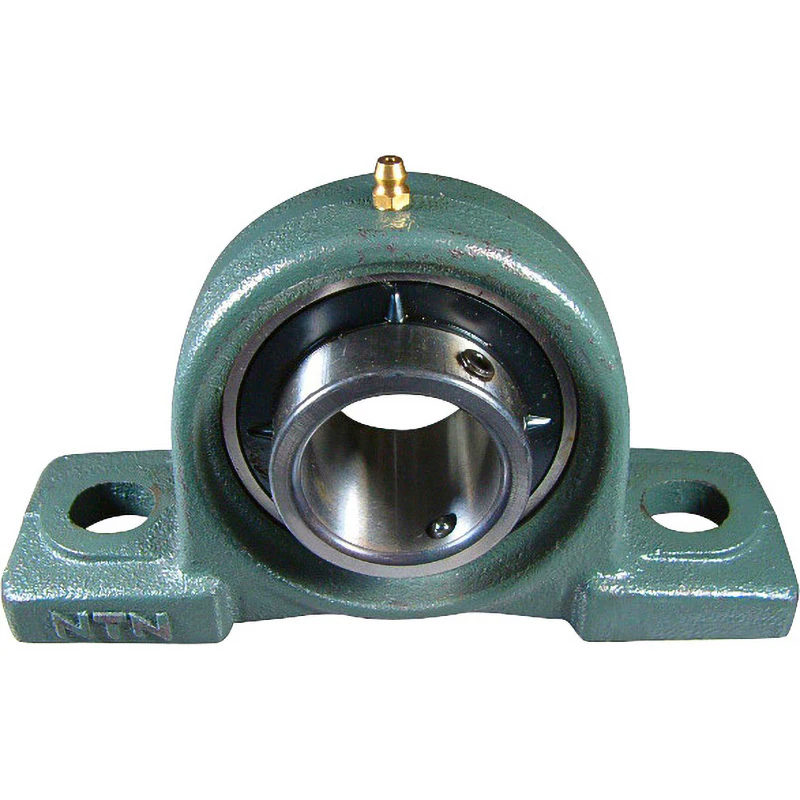

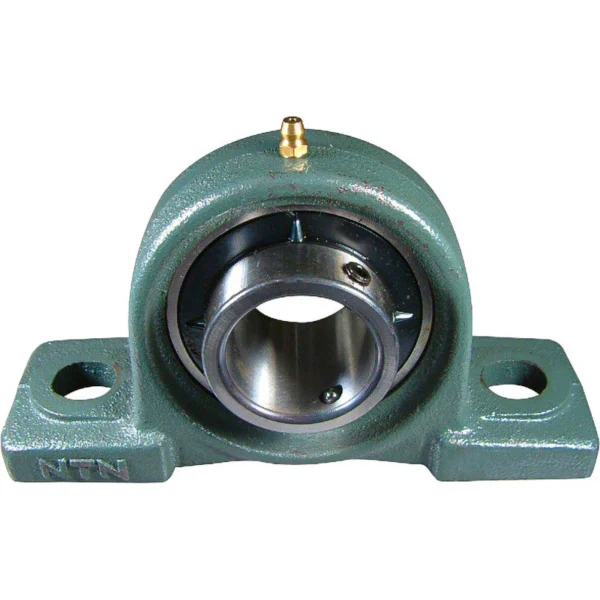

Shape: Pillow shape unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 3.3 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 29.2
Basic dynamic load rating (kN): 43.5
Mounting bolt specification: M16
This is a representative type of bearing unit, equivalent to the conventional widely used plummer block and the automatically widely used self-aligning ball bearing combination. Mounting on the shaft can be easily done by simply tightening the set screw with the ball, and it is most commonly used in transmission devices and general machinery.
