Description
Description: Quantity: 1 piece
Overall dimension D (mm): 55
Material (Cover): ABS resin UL94HB
Material (Body): ABS resin (UL94HB)
Part number: SW-55B
Trusco part number: 375-3611
Type: Type B
Operating temperature range (Celsius degrees): -10 to 60
Overall dimension D (mm): 55
Overall dimension W (mm): 40
Overall dimension H (mm): 20
Finish: Fully textured finish
Material (Cover): ABS resin UL94HB
Flame retardancy: –
Material (Body): ABS resin (UL94HB)

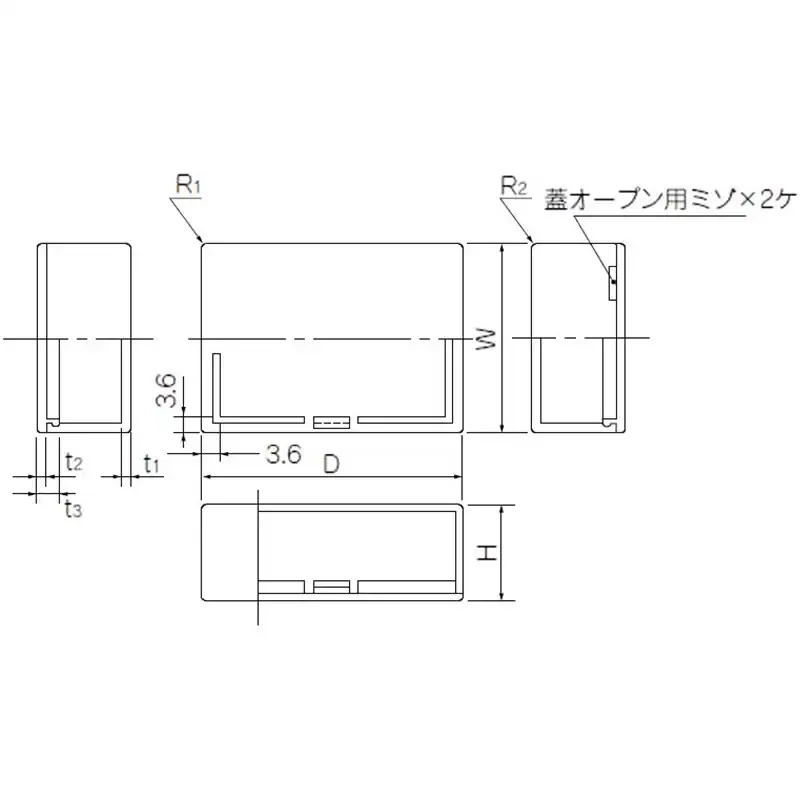

Dimension R1 (mm): 1.5
Dimension R2 (mm): 0.3
Dimension t1 (mm): 2
Dimension t2 (mm): 2
Dimension t3 (mm): 5
Color (Cover): Black
Corresponding body color: Black
RoHS Directive (compliant with 10 substances): Compliant
Characteristic: General-Purpose type
Weight (g): 17
Effective dimension (Width) (mm): 32.8 (internal)
Effective dimension (Depth) (mm): 47.8 (internal)
Effective dimension (Height) (mm): 13 (internal)
One-touch Open-Close structure.
Internal space is wide and usable.
Small case with multi-purpose type.
