Description
Dimension B (mm): 8
Dimension C1 (mm): 6
Dimension G (mm): M5*0.8
Dimension d (mm): 5
Dimension d1 (mm): 7.7
Dimension d2 (mm): 16
Dimension h (mm): 33
Dimension l1 (mm): 20
Dimension l2 (mm): 41
Chamfer Dimension r1 (mm): 0.2
Specification 1N is approximately equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 12.5
Type: Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 6540
Static Load Capacity (N): 3340
Ball Diameter (mm): 11.112

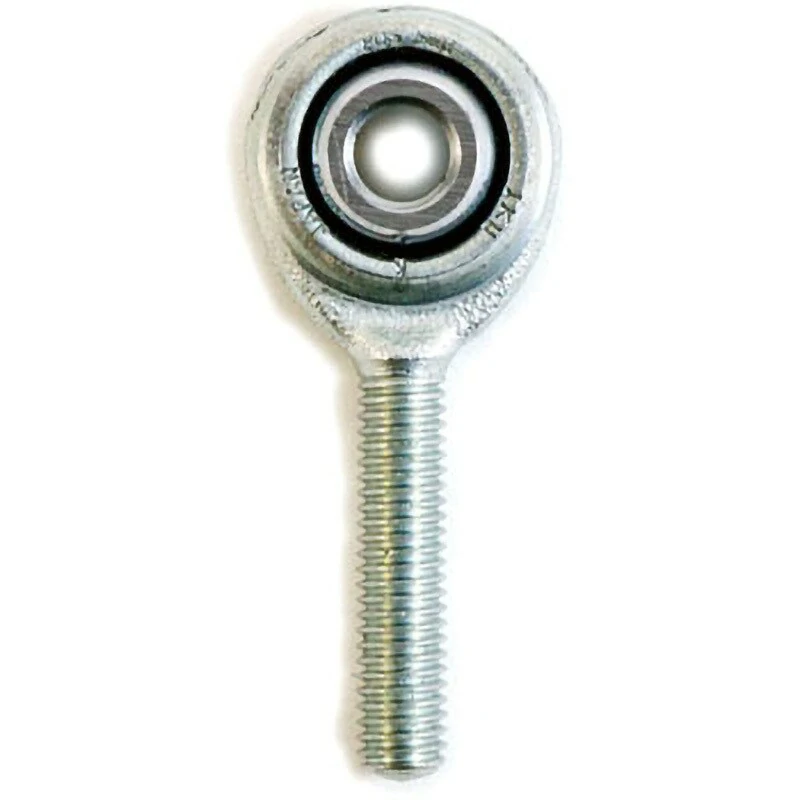

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
Pillow ball Rod End｣ｬs have either internal or external threads processed on the main body｣ｬ making installation easy.
Used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
