Description
Description
Quantity
1 piece
External dimensions D (mm)
53
Material (Cover)
ABS resin UL94HB
Material (Body)
ABS resin (UL94HB)
Part number
SW-53S
Type
S type
Operating temperature range (Celsius degrees)
-10 to 60
External dimensions D (mm)
53
External dimensions W (mm)
36
External dimensions H (mm)
11
Finish
Full surface texture finish
Material (Cover)
ABS resin UL94HB
Flame resistance
–
Material (Body)
ABS resin (UL94HB)

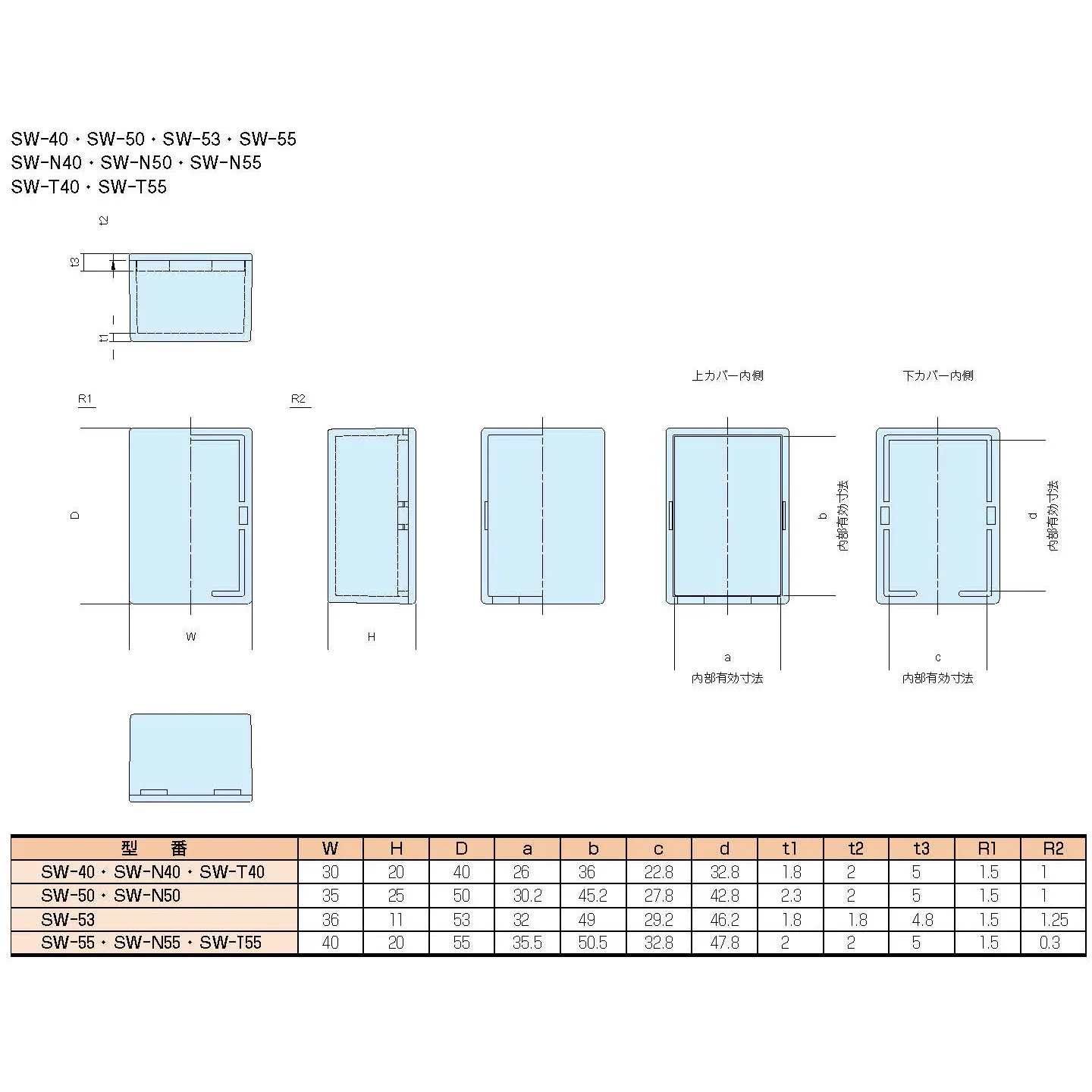

Dimension R1 (mm)
–
Dimension R2 (mm)
–
Dimension t1 (mm)
–
Dimension t2 (mm)
–
Dimension t3 (mm)
–
Color (Cover)
Light gray
Corresponding body color
Light gray
RoHS directive (10 substances compliant)
Compliant
Characteristics
General-Purpose type
Self weight (g)
10
Effective dimensions (width) (mm)
29.2 (internal)
Effective dimensions (depth) (mm)
46.2 (internal)
Effective dimensions (height) (mm)
5.9 (internal)

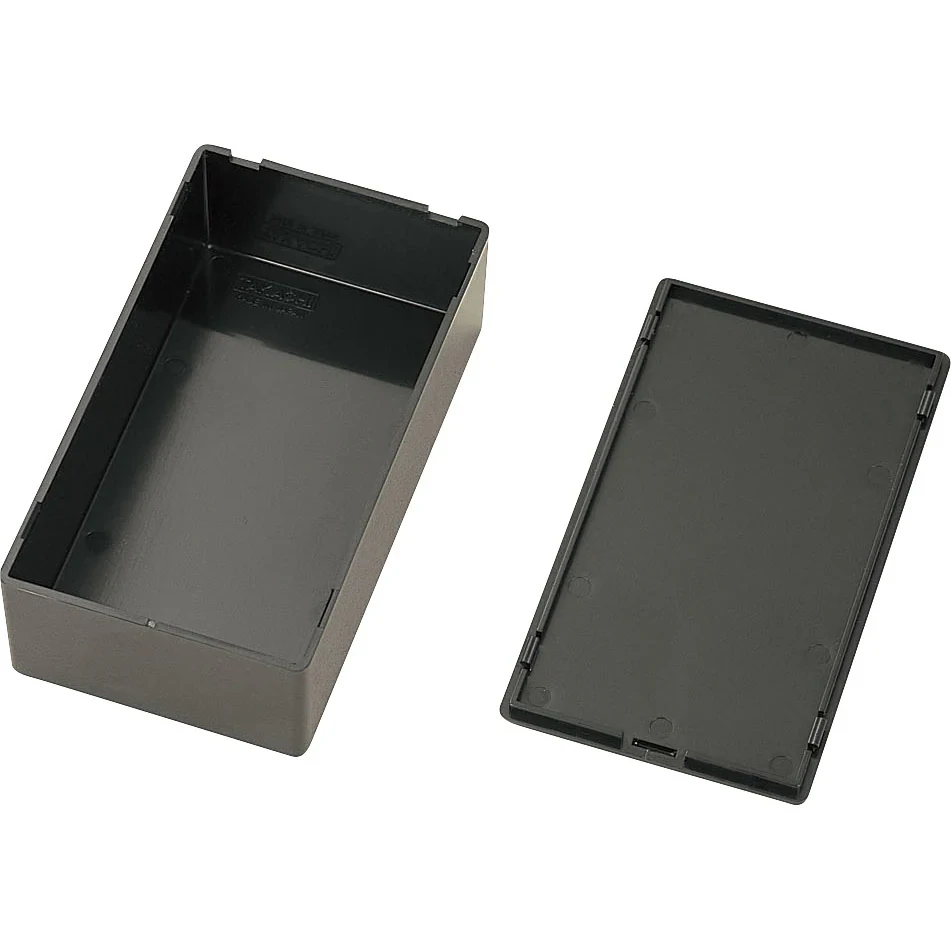

One-touch Open-Close structure
The internal space is wide and usable
Compact case, multipurpose type
