Description
Contents: 1 piece
Axis diameter (mm): 50
Load type: Light load
Dimension A (mm): 60
Dimension B (mm): 51.6
Dimension H (mm): 57.2
Dimension H1 (mm): 21
Dimension H2 (mm): 114
Dimension J (mm): 159
Dimension L (mm): 206
Dimension L1 (mm): 65
Dimension N (mm): 20
Dimension N1 (mm): 23
Dimension S (mm): 19
Axis diameter (mm): 50

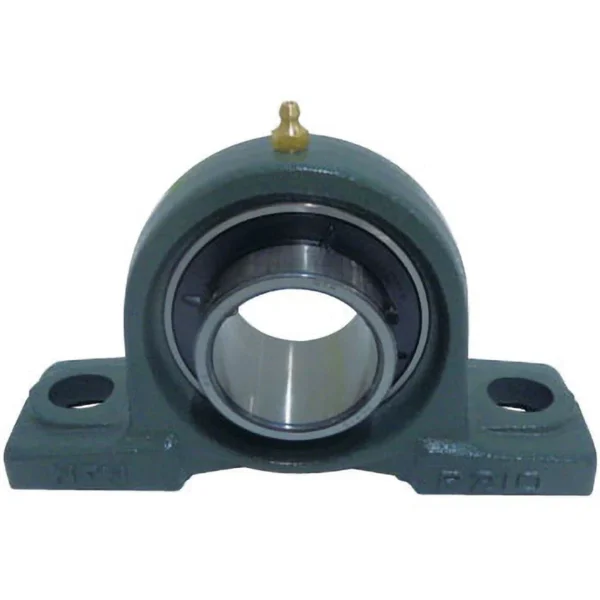

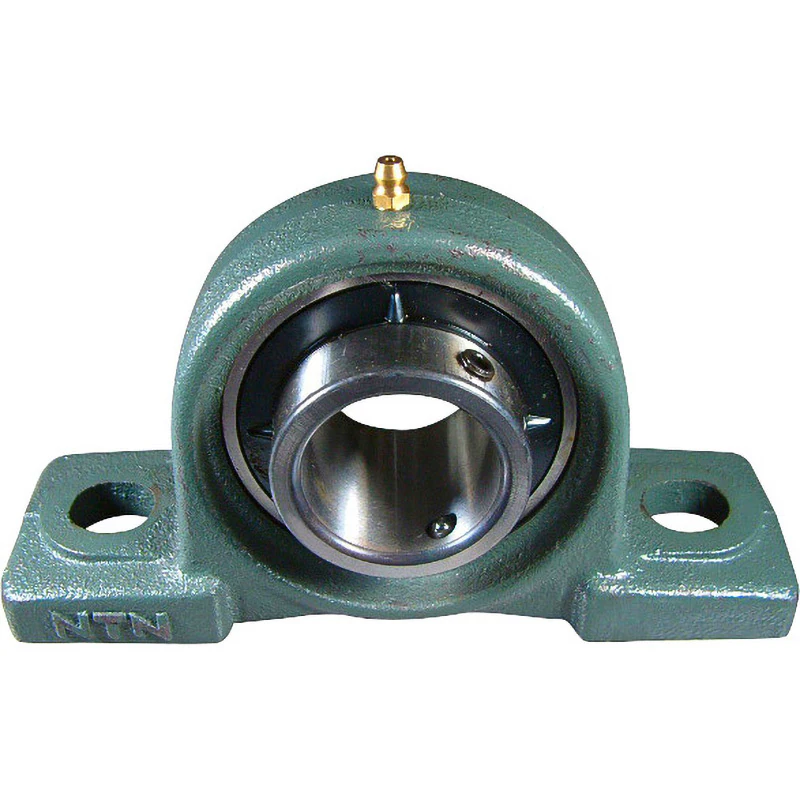

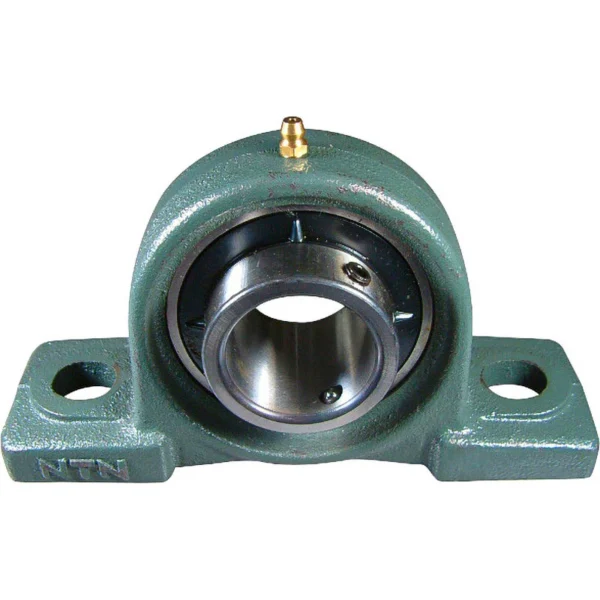

Shape: Pillow block unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 2.6 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 23.2
Basic dynamic load rating (kN): 35.0
Mounting bolt size: M16
This is a typical type of bearing unit, corresponding to the combination of the traditionally widely used plummer block and the self-aligning ball bearing, making it easy to install onto the shaft simply by tightening the set screw with a ball. It is most commonly used in transmission devices and general machinery.
