Description
Contents: 1 piece
Axis diameter (mm): 45
Load type: Light load
Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 54
Dimension H1 (mm): 20
Dimension H2 (mm): 106
Dimension J (mm): 146
Dimension L (mm): 190
Dimension L1 (mm): 60
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 19
Axis diameter (mm): 45

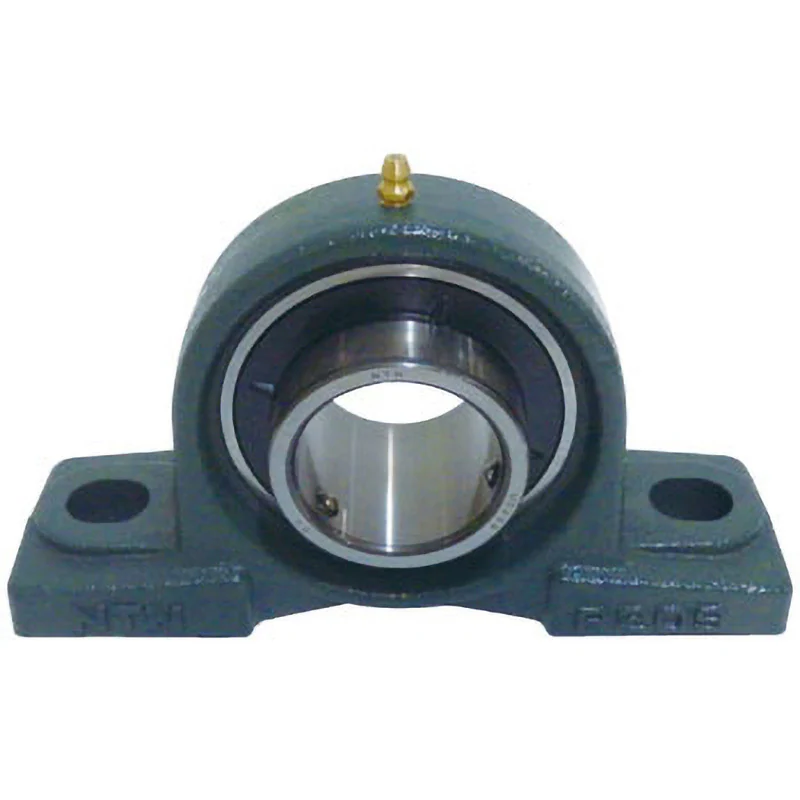

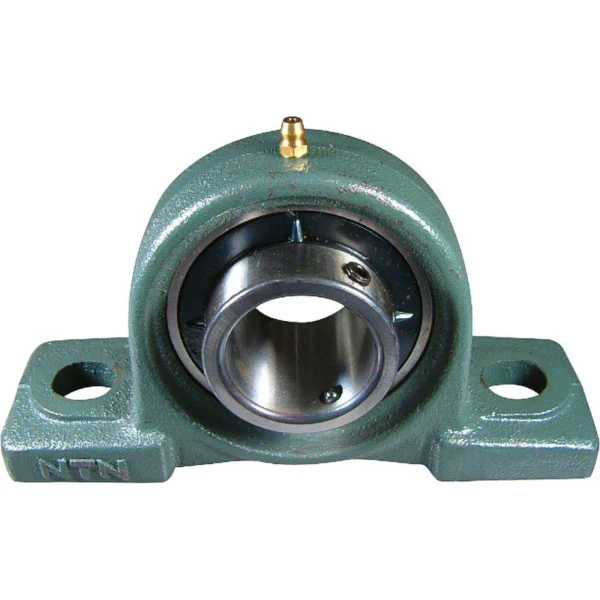

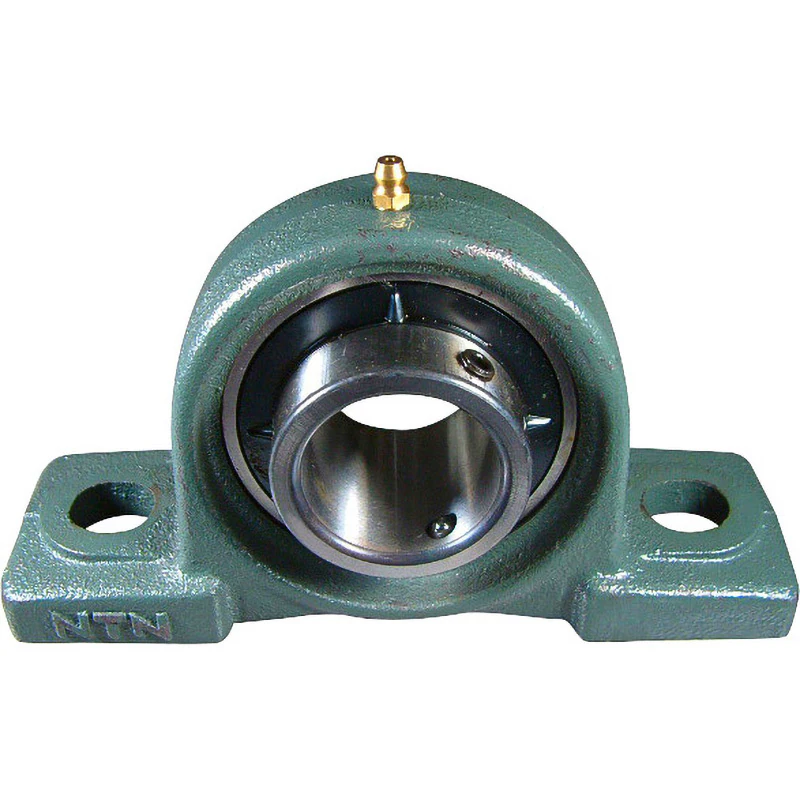

Shape: Pillow type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 2.2 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 20.4
Basic dynamic load rating (kN): 32.5
Mounting bolt nominal: M14
This is a typical form of bearing unit, equivalent to a combination of the traditionally widely used plummer block and self-aligning ball bearing, making installation on the shaft simple by just tightening the set screw with a ball, and it is most commonly used in transmission devices and general machinery.
