Description
Content Volume: 1 piece
Axis Diameter (mm): 40
Load Type: Light Load
Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 49.2
Dimension H1 (mm): 18
Dimension H2 (mm): 98
Dimension J (mm): 137
Dimension L (mm): 184
Dimension L1 (mm): 52
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 19
Axis Diameter (mm): 40

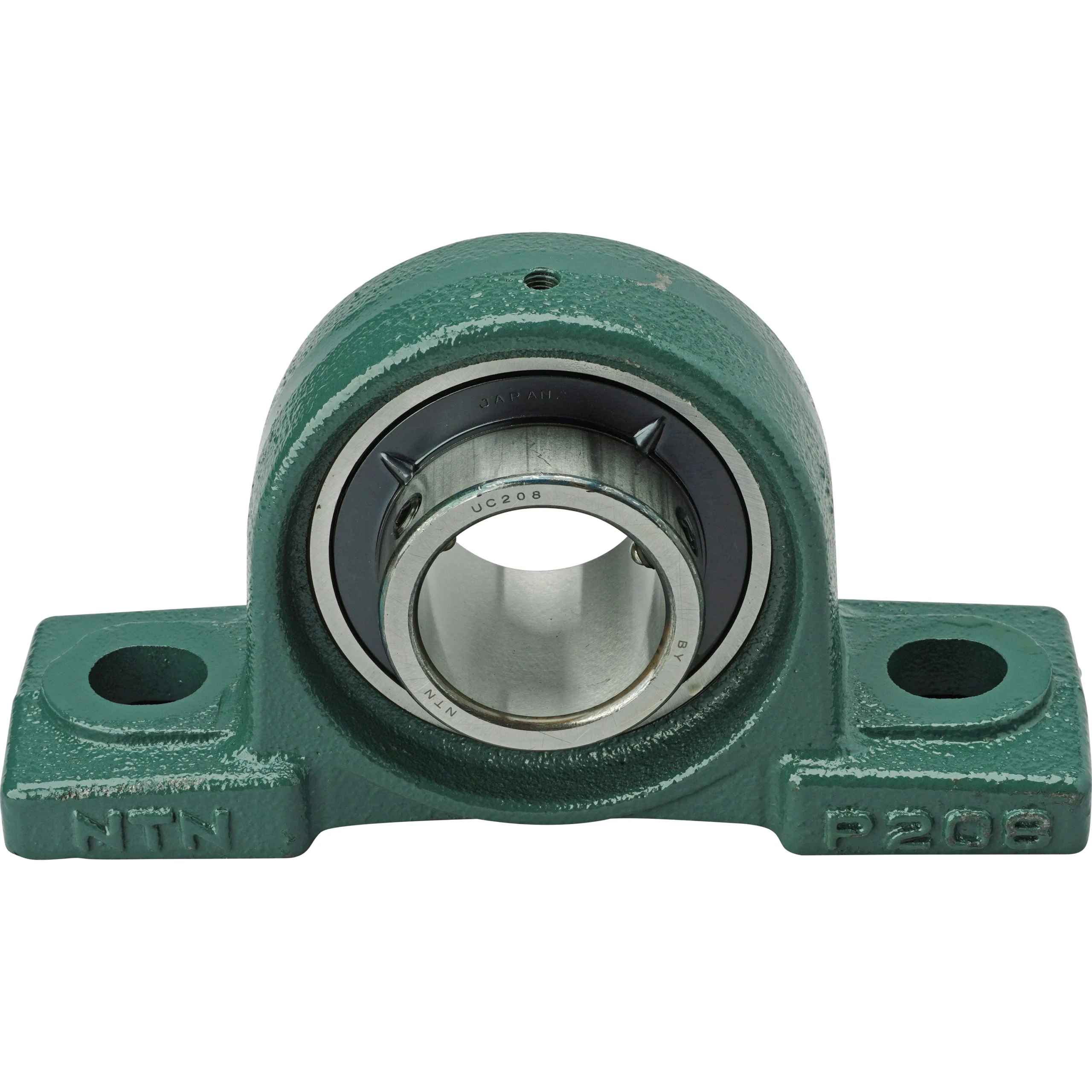

Shape: Pillow Block Unit
Trusco
Grease Nipple: With Grease Nipple
Load Type: Light Load
Cover: No Cover
Axis Hole Type: Cylindrical Hole Type (With Set Screw)
Weight (kg): 1.9 (Reference)
Seal Standard: Nitrile Rubber Seal
Basic Static Load Rating (kN): 17.8
Basic Dynamic Load Rating (kN): 29.1
Mounting Bolt Specification: M14
This is a representative type of bearing unit, equivalent to the commonly used pillow block and automatic self-aligning ball bearing combination. It can be easily mounted onto the shaft simply by tightening the ball-included set screw, and is most widely used in transmission devices and general machinery.
