Description
Dimensions B (mm): 6
Dimensions C1 (mm): 4.5
Dimensions G (mm): M3*0.5
Dimensions d (mm): 3
Dimensions d1 (mm): 5.2
Dimensions d2 (mm): 12
Dimensions h (mm): 27
Dimensions l1 (mm): 15
Dimensions l2 (mm): 33
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plating (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 5.0
Type: With Male Thread
Material (Bush): Special Brass Alloy
Thread Direction: Right Thread
Oil Supply Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 3500
Static Load Capacity (N): 1220
Ball Diameter (mm): 7.938

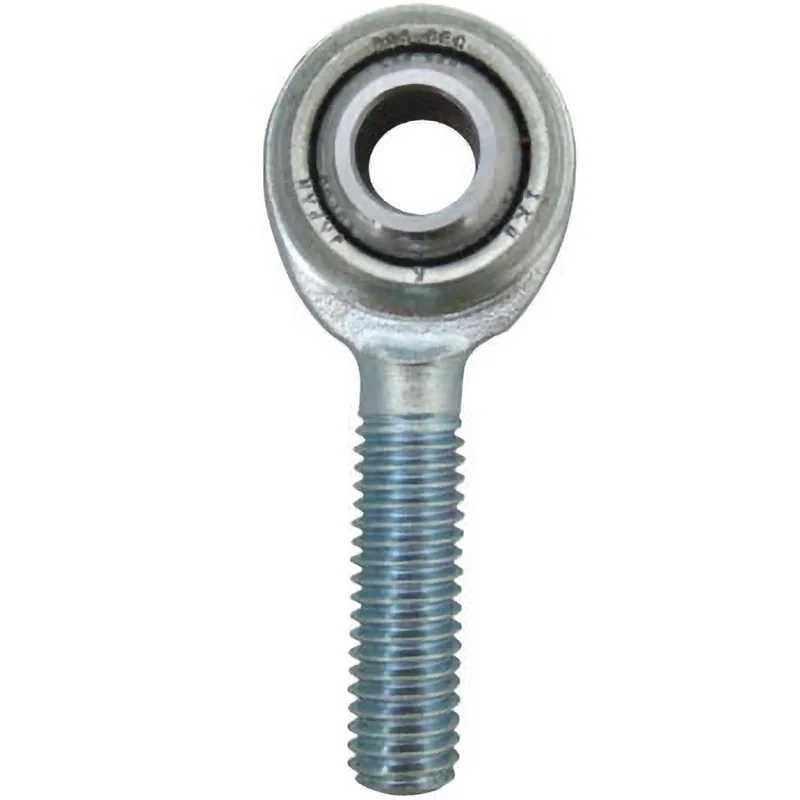

This is a self-aligning spherical sliding bearing that can simultaneously support large radial loads and bidirectional axial loads in a small capacity.
The pillow ball Rod End｣ｬ has a male or female thread machined into the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms in machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
