Description

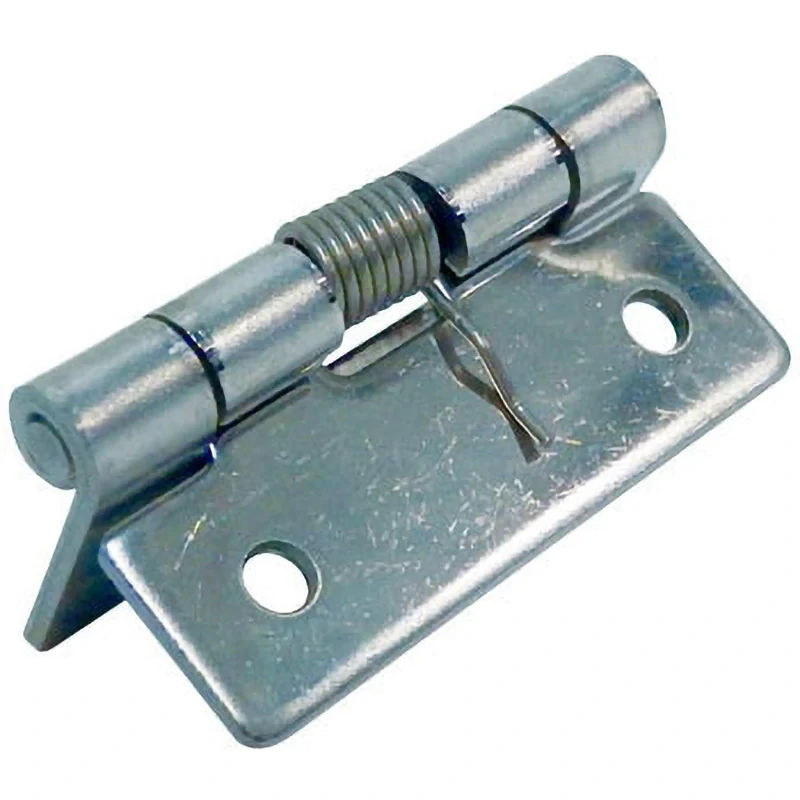

Description: Quantity: 1 piece
Material/Treatment: SUS304/-

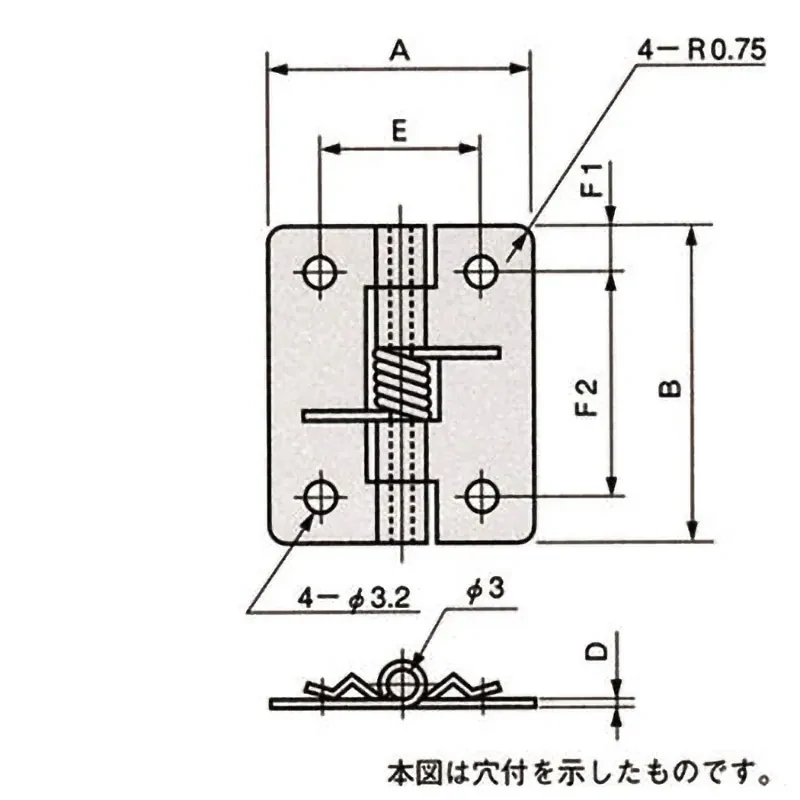

Dimension A (mm): 32
Item number: TH-61SUS-2

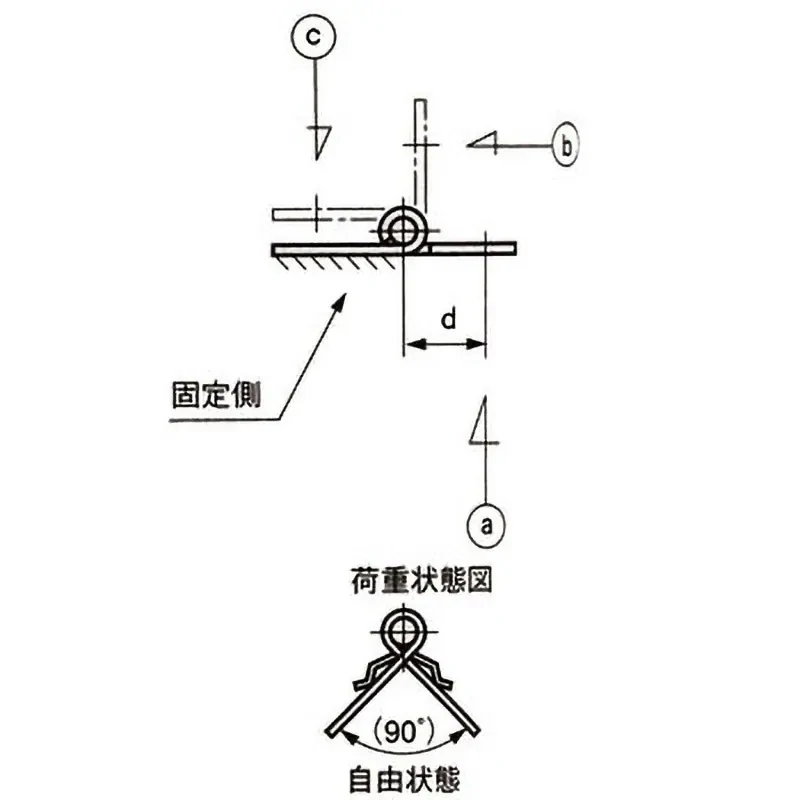

Reference spring load (N[gf])
a/3.92[400]
b/6.87[700]
c/7.85[800]
The spring is inside the core rod. The spring load is measured at the mounting hole position of the hinge.
