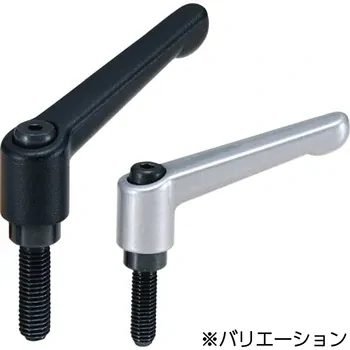

GEO.PRINCE TAKESHITA Clamp Lever LDM-5-40-BK

¥863

SKU: r22130538e0af Category:

Description

Content: 1 piece
Mounting hole Diameter (mm): M5
Mounting length (mm): 40
Part number: LDM-5-40-BK
Dimension D (mm): 13
Dimension H’ (mm): 37.5
Dimension H (mm): 34
Dimension Lm (mm): 40
Dimension R (mm): 45
Dimension d (mm): 10
Dimension h (mm): 24.5
Dimension s (mm): 4
Type: Clamp Lever
Shape: L-shaped
Mounting part: Male Thread
Mounting hole Diameter (mm): M5
Mounting length (mm): 40
Rotation radius (mm): 45
Material (main body): Zinc die-cast
Number of teeth: 18
Material (thread part): SUM22L
Surface treatment (lever part): Electrostatic coating
Maximum load (N): 60
Maximum tightening force (kN): 3.9
Lever color: Matte Black
Material (spring): Stainless steel wire or SWPB
As a mechanical assembly part
As a replacement part for existing machinery
