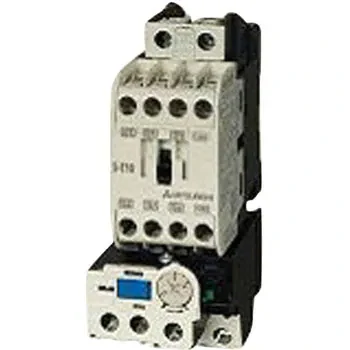

Mitsubishi Electric Open-Type Electromagnetic Contactor AC Operated Type MSO-T Series >MSO-T12 1KW 200V AC200V

¥5,038

999 in stock

SKU: r22130303279d Category:

Description

Description: Quantity: 1 piece
Coil rated voltage (V): AC200
Applicable motor capacity (200-240V) (kW): Three-phase squirrel-cage motor (AC-3 class): 2.7
Applicable motor capacity (380-440V) (kW): Three-phase squirrel-cage motor (AC-3 class): 4
Applicable motor capacity (500-550V) (kW): Three-phase squirrel-cage motor (AC-3 class): 5.5
Applicable motor capacity (200-220V) (kW): Three-phase squirrel-cage motor (AC-3 class): 2.7

Part number: MSO-T12 1KW 200V AC200V

Motor capacity (kW): 1
Auxiliary contacts: 1a1b
Frame: T12
Compatible thermal relay: 2-element thermal relay included, (model name): TH-T18
Heater call (A): 5
Heat element rated setting range (A): 4-6
Coil rated voltage (V): AC200
Type: Open type
Category: Electromagnetic Contactor
Operating method: Non-reversible
Main circuit voltage (V) 200
Specification: Terminal part specification: Standard specification, operating coil input: Continuous/7VA, instantaneous input/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.38
Mounting method: IEC 35mm rail, screw
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated insulation voltage (V): 690
Rated usage current (A): Three-phase squirrel-cage motor (AC-3 class): (200-220V) 13/(380-440V) 9/(500-550V) 9, resistive load (AC-1 class) (200-220V) 20/(380-440V) 13
Mechanical durability: 10 million times
Electrical durability: AC-3 class: 2 million times, AC-4 class: 30,000 times, AC-1 class: 500,000 times
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Opening and closing frequency (times/hour): AC-3 class: 1800, AC-4 class: 300, AC-1 class: 1200
Open thermal current (A): 20
Operation method: Operating coil, operating circuit: Standard specification
Applicable motor capacity (200-240V) (kW): Three-phase squirrel-cage motor (AC-3 class): 2.7
Applicable motor capacity (380-440V) (kW): Three-phase squirrel-cage motor (AC-3 class): 4
Applicable motor capacity (500-550V) (kW): Three-phase squirrel-cage motor (AC-3 class): 5.5
Applicable motor capacity (200-220V) (kW): Three-phase squirrel-cage motor (AC-3 class): 2.7

The miniaturization of Electromagnetic Contactors has been realized for many ratings.

By equipping a terminal cover as standard, the effort of specifying different model names and arranging options for customers is reduced, leading to inventory reduction and cost-down effects from the cover. Of course, safety is also improved as protection for the charging parts.

In the old series, the number of operating coil ratings, which was 14 types, has been reduced to 8 types, expanding the applicable voltage range. This not only reduces customer inventory but also realizes shorter lead times by consolidating coil manufacturing types.

It is suitable for motor overload and constraint protection.
