Description

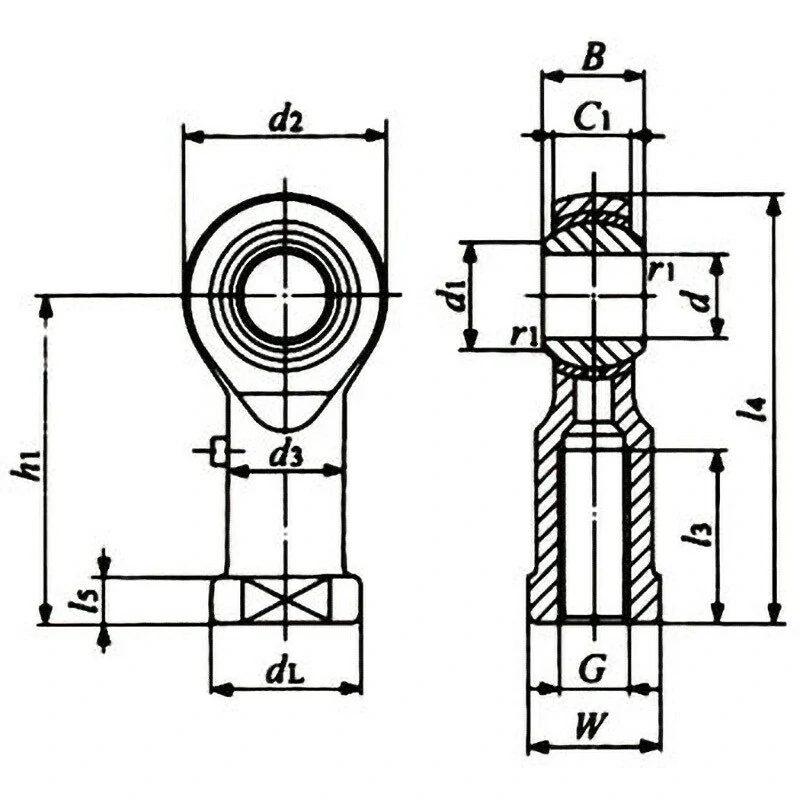

Dimensions B (mm): 28
Dimensions C1 (mm): 20
Dimensions G (mm): M22*1.5
Dimensions W (mm): 32
Dimensions d (mm): 22
Dimensions d1 (mm): 25.8
Dimensions d2 (mm): 50
Dimensions d3 (mm): 30
Dimensions dL (mm): 37
Dimensions h1 (mm): 84
Dimensions l3 (mm): 43
Dimensions l4 (mm): 109
Dimensions l5 (mm): 22
Chamfer Dimension r1 (mm): 0.2
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 490
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 74700
Static Load Capacity (N): 36400
Ball Diameter (mm): 38.100

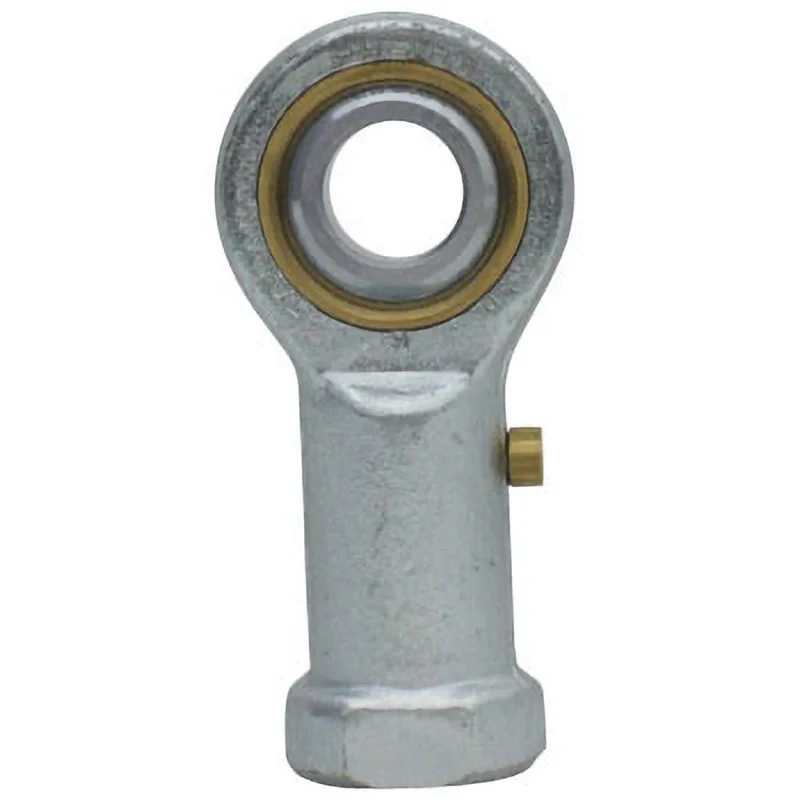

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has male or female threads processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
