Description

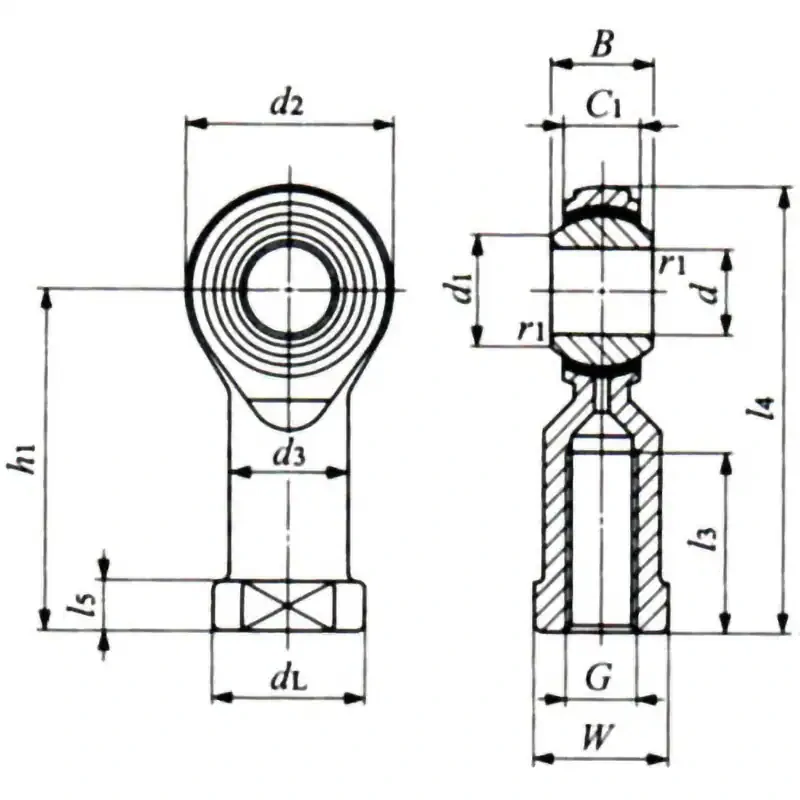

Dimensions B (mm): 25
Dimensions C1 (mm): 18
Dimensions G (mm): M20*1.5
Dimensions W (mm): 30
Dimensions d (mm): 20
Dimensions d1 (mm): 24.4
Dimensions d2 (mm): 46
Dimensions d3 (mm): 27.5
Dimensions dL (mm): 34
Dimensions h1 (mm): 77
Dimensions l3 (mm): 40
Dimensions l4 (mm): 100
Dimensions l5 (mm): 10
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome plating (spherical inner ring)
Material (main body): Zinc chromate
Weight (g): 380
Type: With male thread
Material (bushing): Special copper alloy
Thread direction: Right thread
Lubrication type: Lubrication-Free｣ｬtype
Dynamic load capacity (N): 61600
Static load capacity (N): 30000
Ball diameter (mm): 34.925

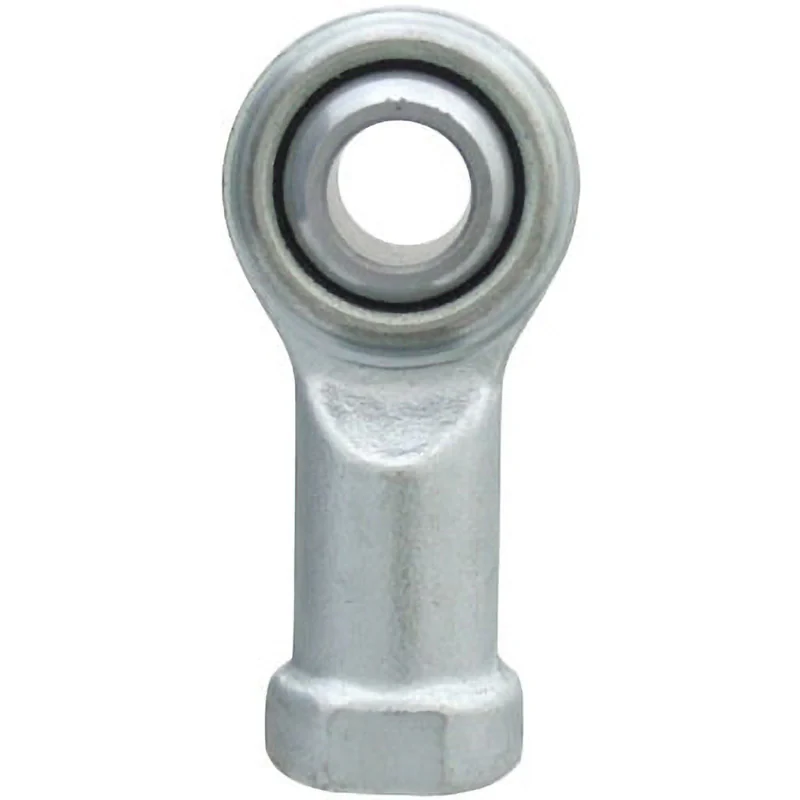

This is a self-aligning spherical sliding bearing that can simultaneously support large radial loads and bi-directional axial loads in a small capacity.
The pillow ball Rod End｣ｬ has a male or female thread processed into the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms for machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
