Description
Contents: 1 piece
Axis diameter (mm): 30
Load type: Light load
Dimension A (mm): 48
Dimension B (mm): 38.1
Dimension H (mm): 42.9
Dimension H1 (mm): 17
Dimension H2 (mm): 83
Dimension J (mm): 121
Dimension L (mm): 165
Dimension L1 (mm): 54
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 15.9
Axis diameter (mm): 30

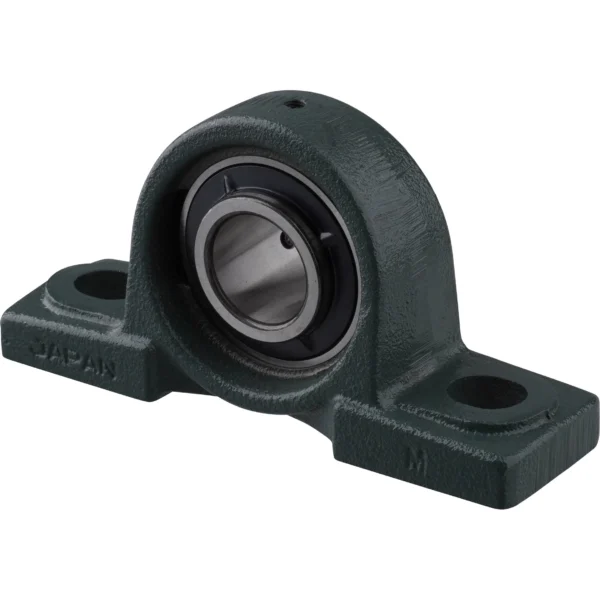

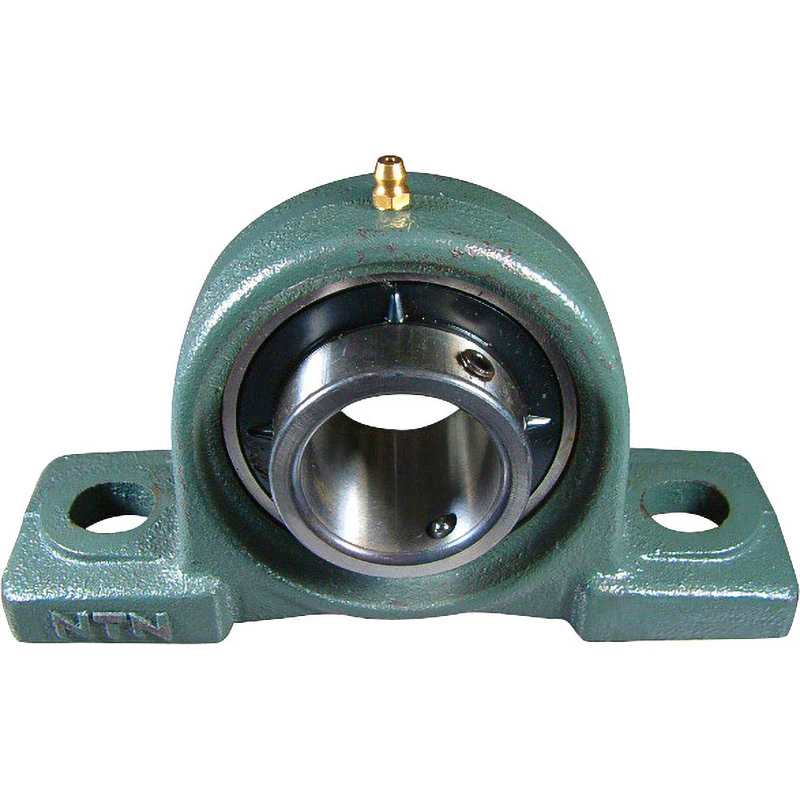

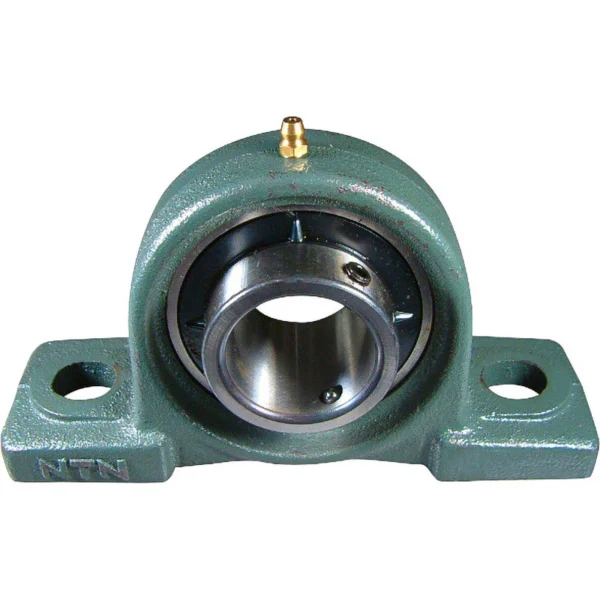

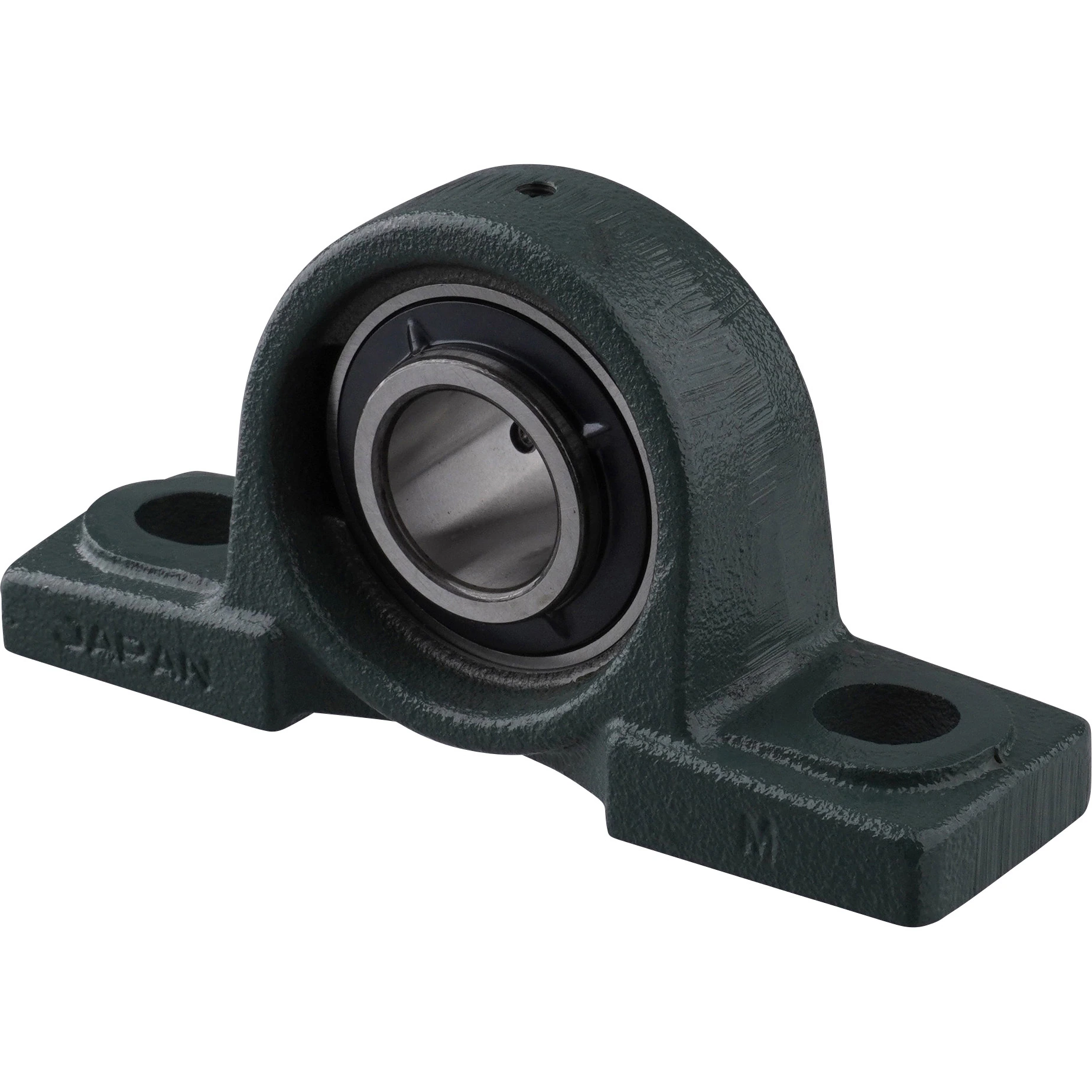

Shape: Pillow block unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 1.3 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 11.3
Basic dynamic load rating (kN): 19.5
Mounting bolt size: M14
This is a representative type of bearing unit, which corresponds to a combination of the traditionally widely used Plummer block and self-aligning ball bearing. It can be easily mounted onto the shaft by tightening the set screw with the ball, and is most commonly used in transmission equipment and general machinery.
