Description

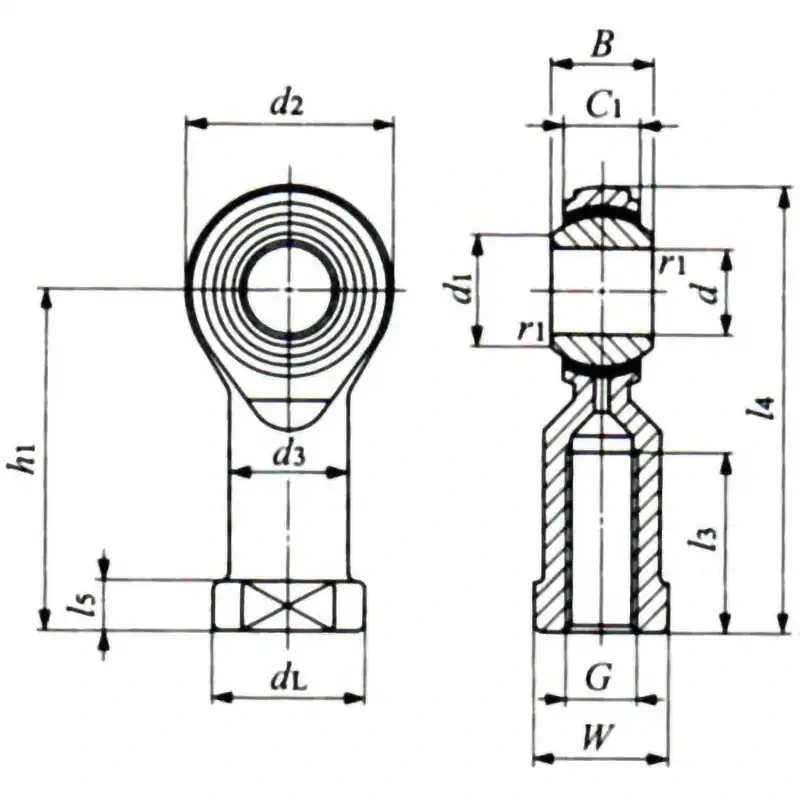

Dimension B (mm): 23
Dimension C1 (mm): 16.5
Dimension G (mm): M18*1.5
Dimension W (mm): 27
Dimension d (mm): 18
Dimension d1 (mm): 21.9
Dimension d2 (mm): 42
Dimension d3 (mm): 25
Dimension dL (mm): 31
Dimension h1 (mm): 71
Dimension l3 (mm): 36
Dimension l4 (mm): 92
Dimension l5 (mm): 10
Chamfer Dimension r1 (mm): 0.2
Specification: 1 N is approximately equal to 0.102 kgf
Material: Chrome Plating (Spherical Inner Ring)
Material (Body): Zinc Chromate
Mass (g): 295
Type: With Female Thread
Material (Bushing): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 51400
Static Load Capacity (N): 25100
Ball Diameter (mm): 31.750

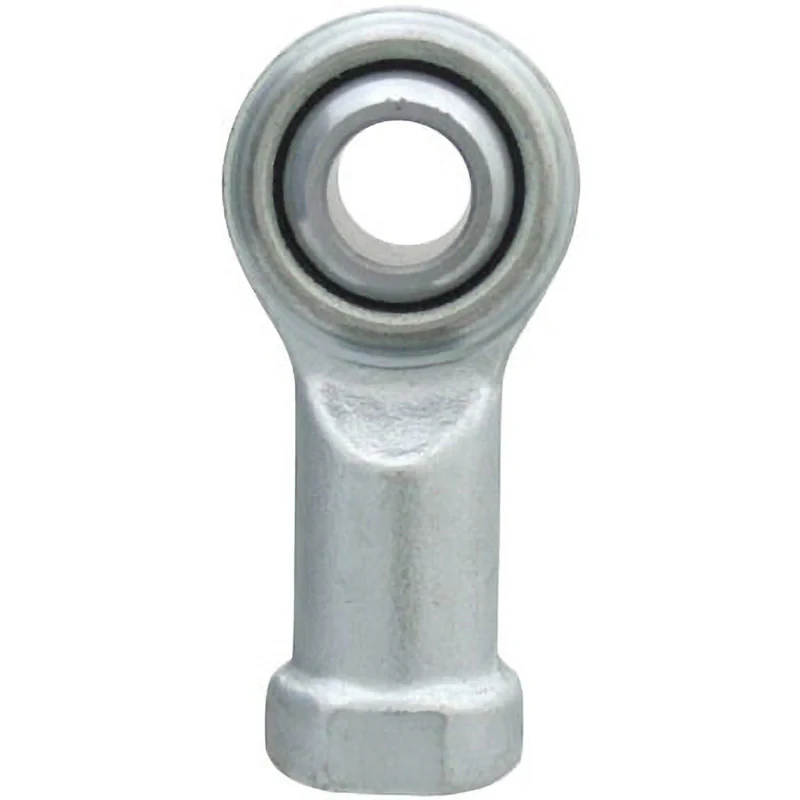

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and axial loads in both directions with a small capacity.
The pillow ball Rod End｣ｬ has either an internal or external thread processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ packaging machines｣ｬ and others.
