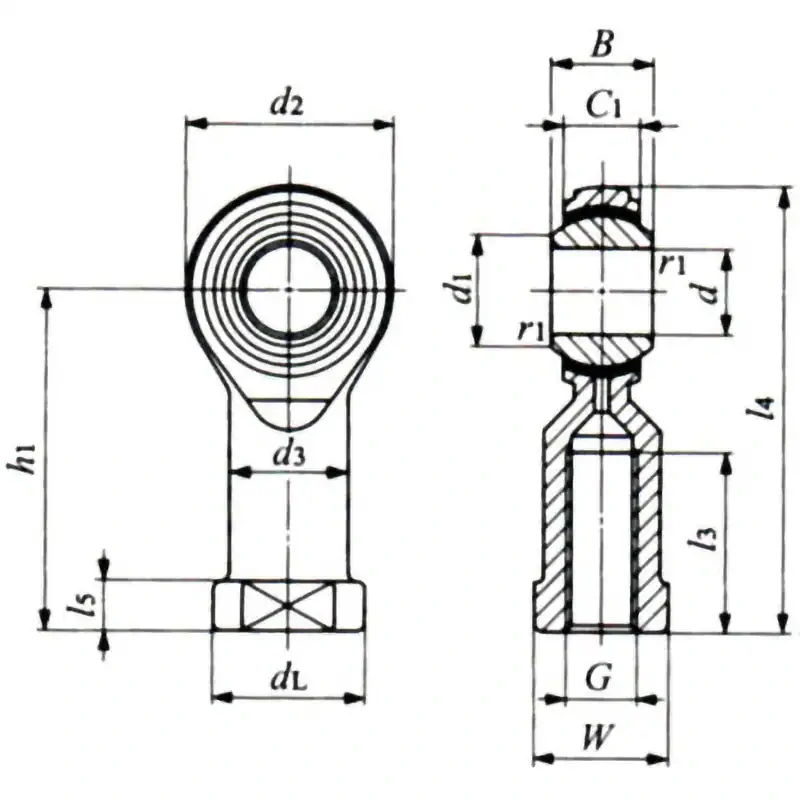

Description
Dimension B (mm): 21
Dimension C1 (mm): 15
Dimension G (mm): M16*2
Dimension W (mm): 22
Dimension d (mm): 16
Dimension d1 (mm): 19.4
Dimension d2 (mm): 38
Dimension d3 (mm): 22
Dimension dL (mm): 27
Dimension h1 (mm): 64
Dimension l3 (mm): 33
Dimension l4 (mm): 83
Dimension l5 (mm): 8
Chamfer Dimension r1 (mm): 0.2
Specification: 1 N is approximately equal to 0.102 kgf
Material: Chrome Plating (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 210
Type: With Female Thread
Material (Bushing): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 42000
Static Load Capacity (N): 21100
Ball Diameter (mm): 28.575

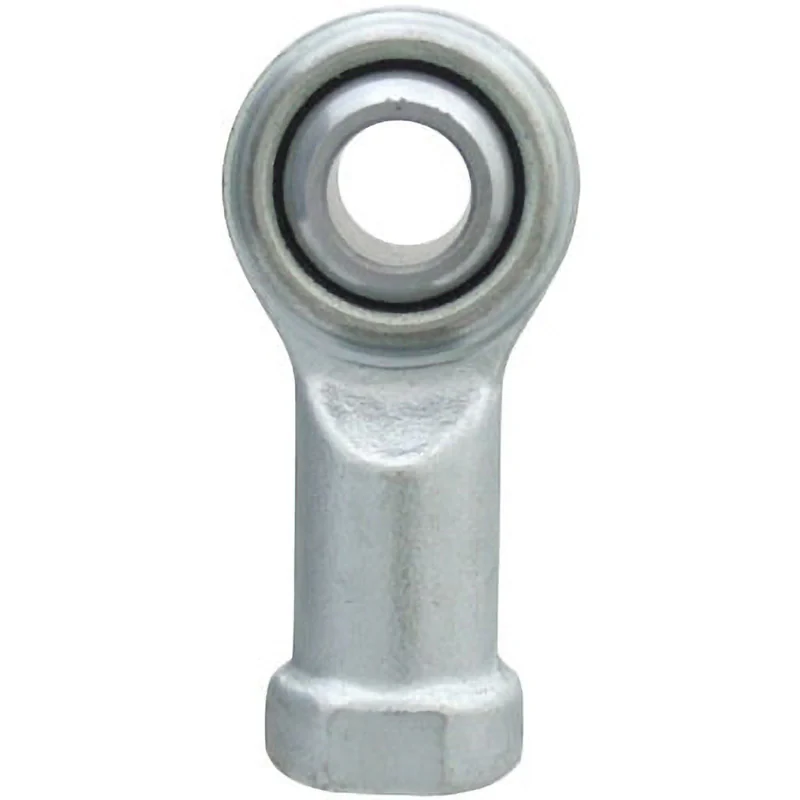

This is a self-aligning spherical sliding bearing that can simultaneously withstand large radial loads and axial loads in both directions with a small capacity.
The pillow ball Rod End｣ｬ has either a female or male thread processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
