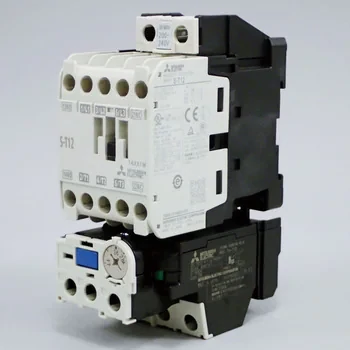

Mitsubishi Electric Open-Type Electromagnetic Contactor AC Operated Type MSO-T Series >MSO-T12 0.75KW 200V AC200V

¥5,038

999 in stock

SKU: r22127681fc7b Category:

Description

Description
Quantity: 1 piece
Coil rated voltage (V): AC200
Compatible motor capacity (200-240V) (kW): Three-phase squirrel cage motor (AC-3 grade): 2.7
Compatible motor capacity (380-440V) (kW): Three-phase squirrel cage motor (AC-3 grade): 4
Compatible motor capacity (500-550V) (kW): Three-phase squirrel cage motor (AC-3 grade): 5.5
Compatible motor capacity (200-220V) (kW): Three-phase squirrel cage motor (AC-3 grade): 2.7
Part number: MSO-T12 0.75KW 200V AC200V
Motor capacity (kW): 0.75
Auxiliary contacts: 1a1b
Frame: T12
Compatible thermal relay: 2-element thermal relay included, (model name): TH-T18
Heater rating (A): 3.6
Heat element rated setting range (A): 2.8-4.4
Coil rated voltage (V): AC200
Type: Open type
Category: Electromagnetic Contactor
Operation method: Non-reversible
Main circuit voltage (V): 200
Specifications: Terminal part specifications: Standard specifications, Operating coil input: Continuous/7VA, Instantaneous input/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.38
Mounting method: IEC 35mm rail, screw
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated insulation voltage (V): 690
Rated operating current (A): Three-phase squirrel cage motor (AC-3 grade): (200-220V) 13 / (380-440V) 9 / (500-550V) 9, Resistive load (AC-1 grade) (200-220V) 20 / (380-440V) 13
Mechanical durability: 10 million times
Electrical durability: AC-3 grade: 2 million times, AC-4 grade: 30,000 times, AC-1 grade: 500,000 times
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Switching frequency (times/hour): AC-3 grade: 1800, AC-4 grade: 300, AC-1 grade: 1200
Open thermal current (A): 20
Operation method: Operating coil, Operating circuit: Standard specifications
Compatible motor capacity (200-240V) (kW): Three-phase squirrel cage motor (AC-3 grade): 2.7
Compatible motor capacity (380-440V) (kW): Three-phase squirrel cage motor (AC-3 grade): 4
Compatible motor capacity (500-550V) (kW): Three-phase squirrel cage motor (AC-3 grade): 5.5
