Description
Capacity: 1 piece
Axis diameter (mm): 20
Load type: Light load

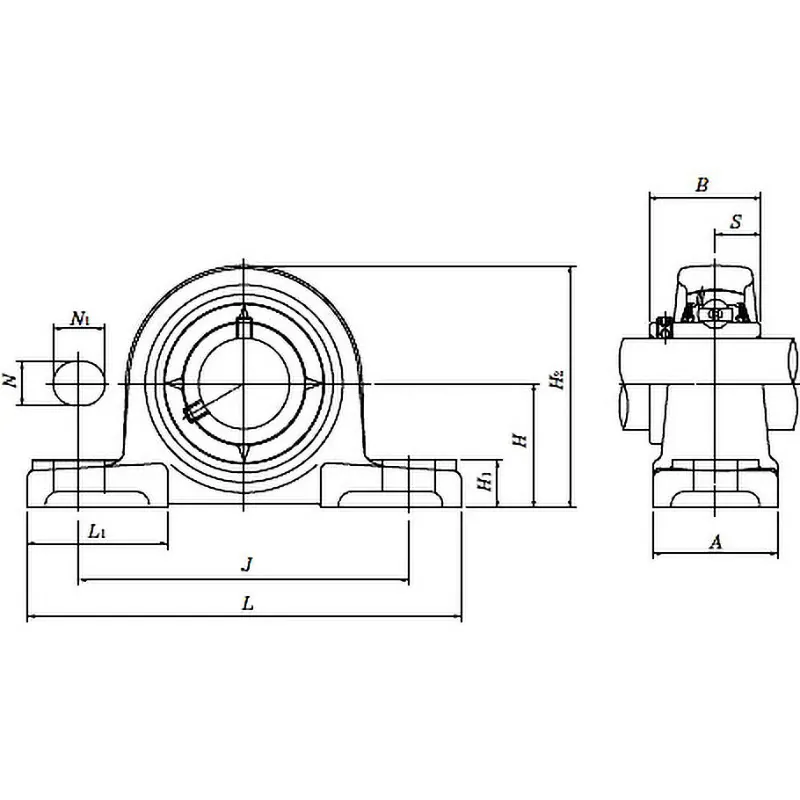

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 33.3
Dimension H1 (mm): 14
Dimension H2 (mm): 65
Dimension J (mm): 95
Dimension L (mm): 127
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 12.7
Axis diameter (mm): 20

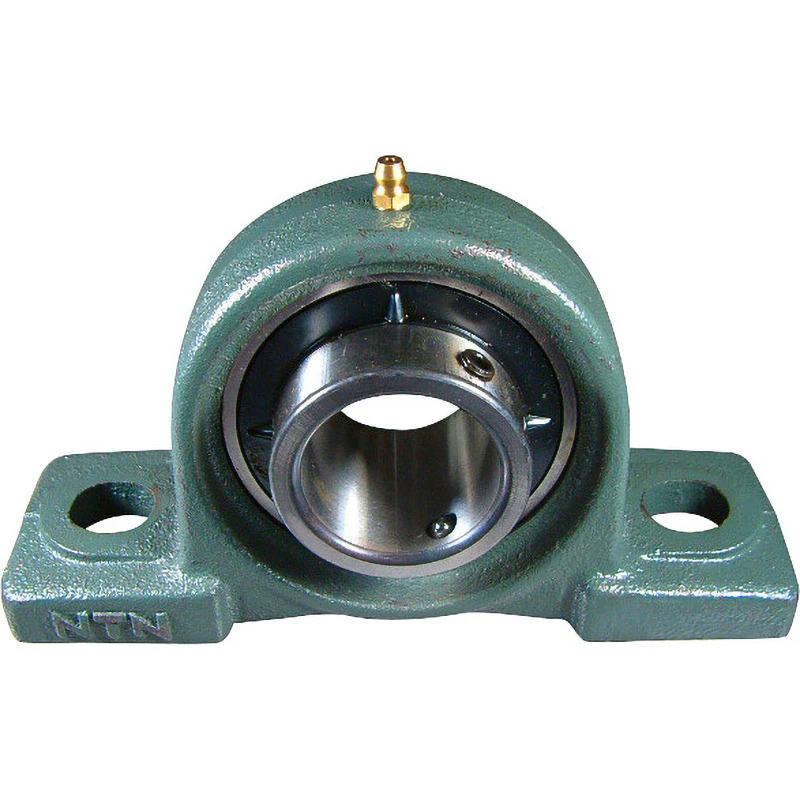

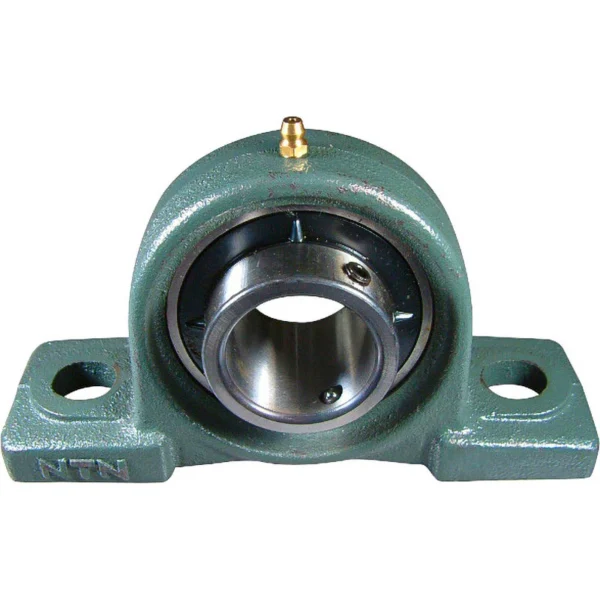

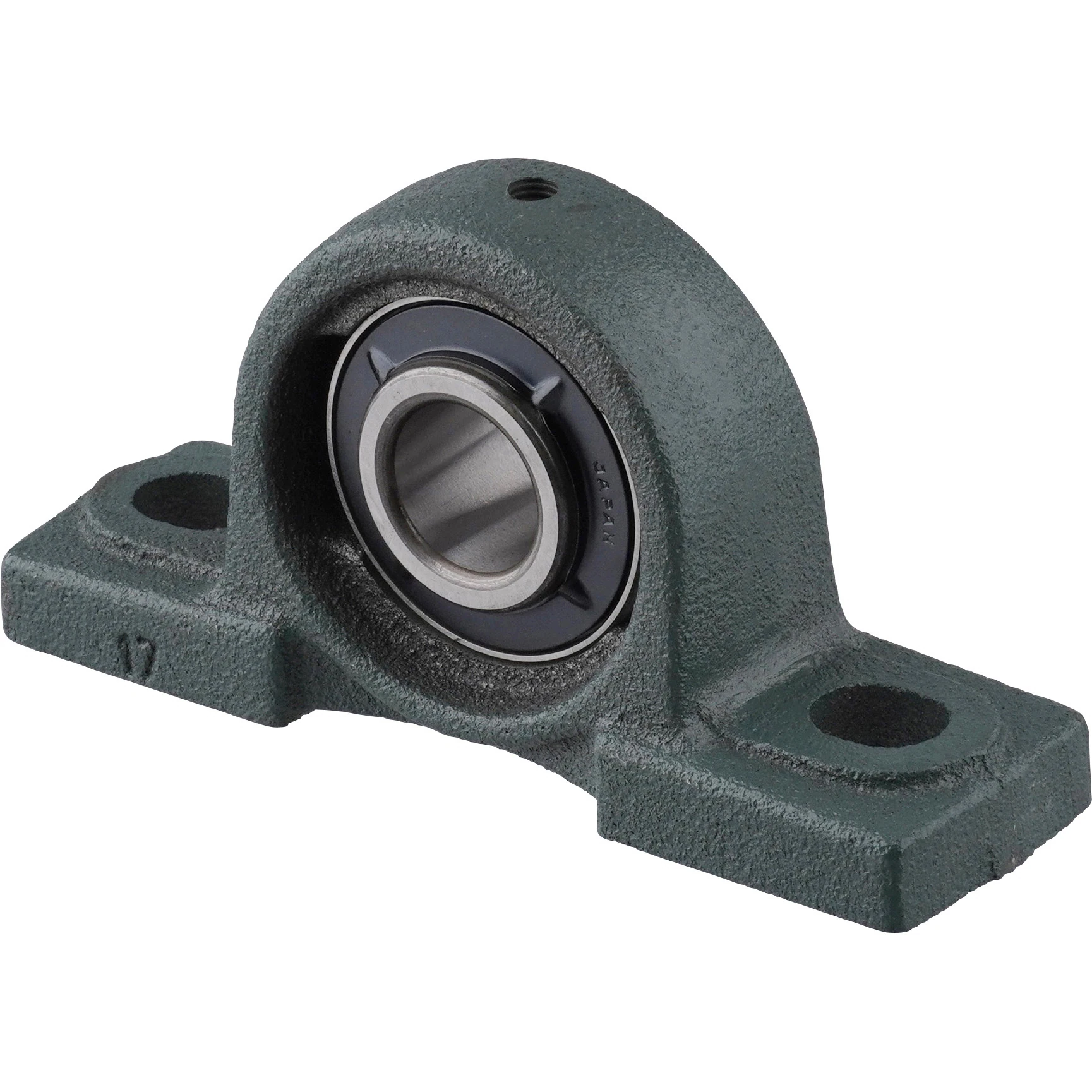

Shape: Pillow type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 0.7 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 6.65
Basic dynamic load rating (kN): 12.8
Mounting bolt designation: M10
This is a representative type of bearing unit, equivalent to the combination of the traditionally widely used plan block and self-aligning ball bearing, making it easy to mount on the shaft simply by tightening the set screw with a ball, and it is most commonly used in transmission devices and general machinery.
