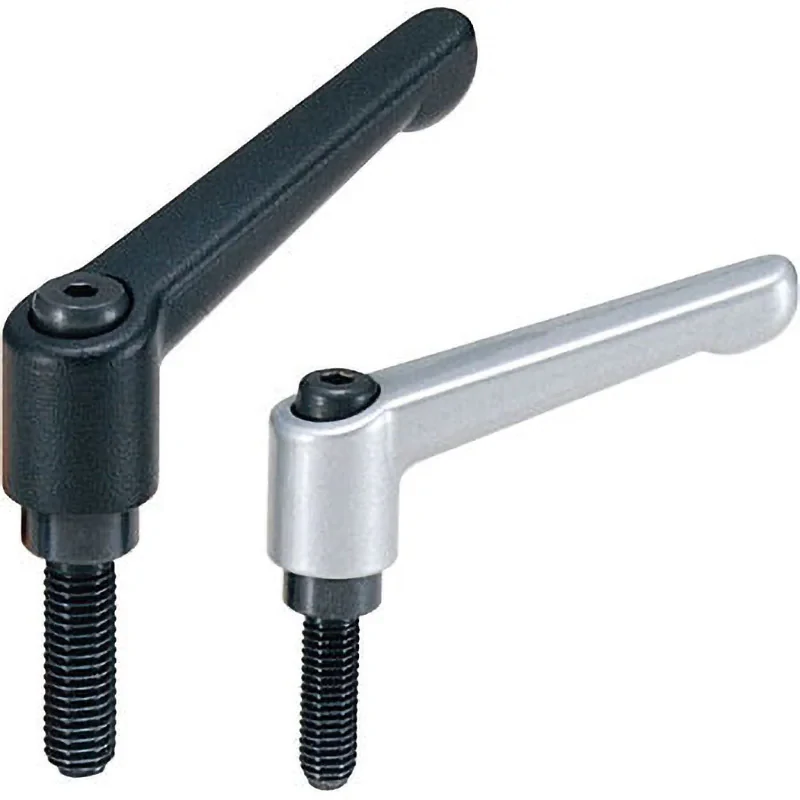

GEO.PRINCE TAKESHITA Clamp Lever LDM-5-25-OR

¥851

SKU: r2212647836f1 Category:

Description

Content: 1 piece
Mounting Hole Diameter (mm): M5
Mounting Length (mm): 25
Part Number: LDM-5-25-OR

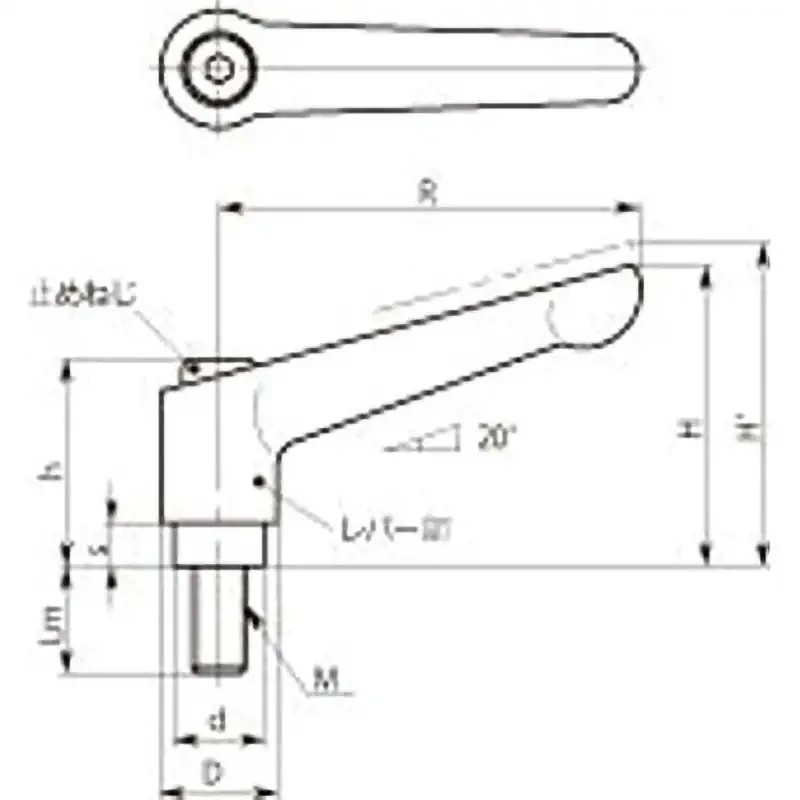

Dimension D (mm): 13
Dimension H’ (mm): 37.5
Dimension H (mm): 34
Dimension Lm (mm): 25
Dimension R (mm): 45
Dimension d (mm): 10
Dimension h (mm): 24.5
Dimension s (mm): 4
Type: Clamp Lever
Shape: L-shaped
Mounting Part: Male Thread
Mounting Hole Diameter (mm): M5
Mounting Length (mm): 25
Rotation Radius (mm): 45
Material (Main Body): Zinc Die-Cast
Number of Teeth: 18
Material (Thread Part): SUM22L
Surface Treatment (Lever Part): Electrostatic Coating
Maximum Load (N): 60
Maximum Tightening Force (kN): 3.9
Lever Color: Matte Orange
Material (Spring): Stainless Steel Wire or SWPB
As a Mechanical Assembly Part
As a Replacement Part for Existing Machinery
