Description

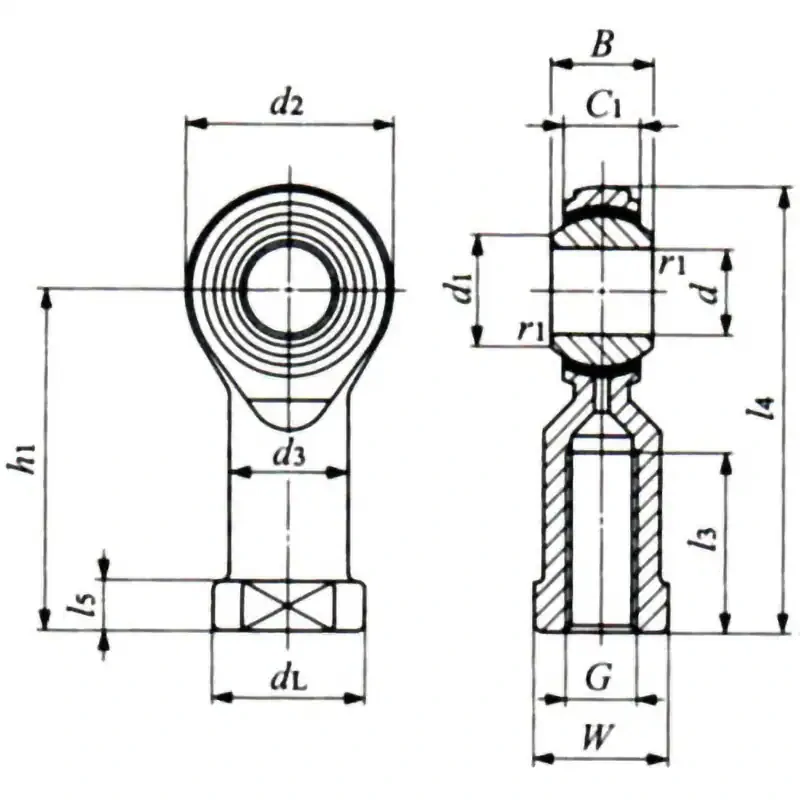

Dimension B (mm): 19
Dimension C1 (mm): 13.5
Dimension G (mm): M14*2
Dimension W (mm): 22
Dimension d (mm): 14
Dimension d1 (mm): 16.9
Dimension d2 (mm): 34
Dimension d3 (mm): 20
Dimension dL (mm): 25
Dimension h1 (mm): 57
Dimension l3 (mm): 27
Dimension l4 (mm): 74
Dimension l5 (mm): 8
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 160
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Oil Supply Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 33600
Static Load Capacity (N): 17200
Ball Diameter (mm): 25.400

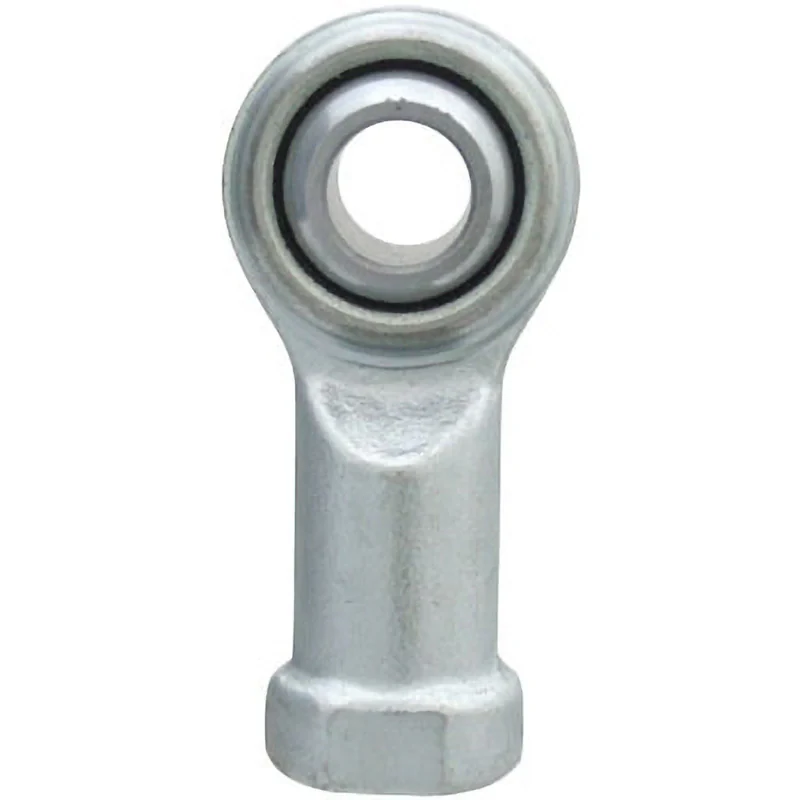

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has male or female threads processed into the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ and packaging machines.
