Description
Contents: 1 piece
Axle diameter (mm): 17
RoHS directive (10 substances compliance): Compliant
Load type: Light load

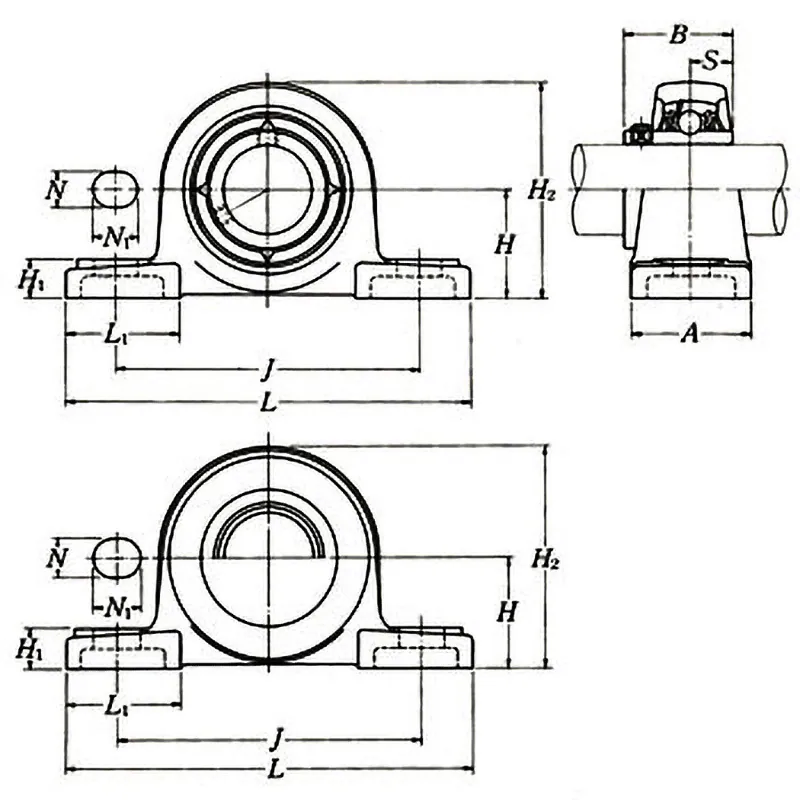

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 30.2
Dimension H1 (mm): 14
Dimension H2 (mm): 62
Dimension J (mm): 95
Dimension L (mm): 127
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 12.7
Axle diameter (mm): 17
Shape: Pillow shape unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axle hole type: Cylindrical hole type (with set screw)
Weight (kg): 0.7 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 6.65
Basic dynamic load rating (kN): 12.8
Mounting bolt specification: M10
RoHS directive (10 substances compliance): Compliant

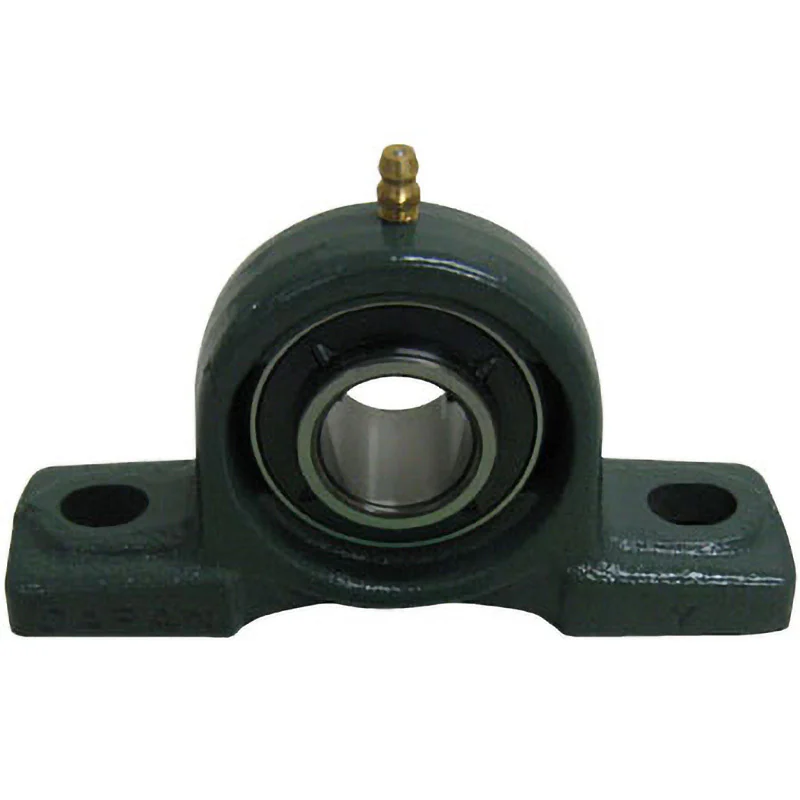

This is a representative type of bearing unit, corresponding to the combination of the conventional widely used plummer block and the self-aligning ball bearing, making it easy to install on the shaft by simply tightening the ball bearing set screw, and it is most commonly used in transmission devices and general machinery.
