Description

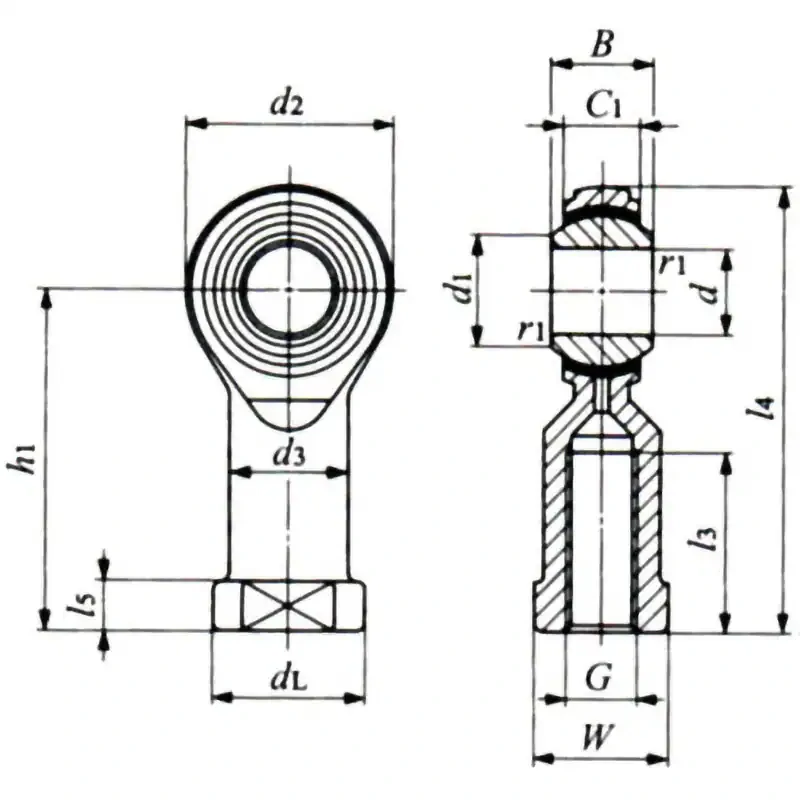

Dimension B (mm): 16
Dimension C1 (mm): 12
Dimension G (mm): M12*1.75
Dimension W (mm): 19
Dimension d (mm): 12
Dimension d1 (mm): 15.4
Dimension d2 (mm): 30
Dimension d3 (mm): 17.5
Dimension dL (mm): 22
Dimension h1 (mm): 50
Dimension l3 (mm): 24
Dimension l4 (mm): 65
Dimension l5 (mm): 6.5
Chamfer dimension r1 (mm): 0.2
Specification 1N is approximately equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 107
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 26200
Static Load Capacity (N): 13700
Ball Diameter (mm): 22.225

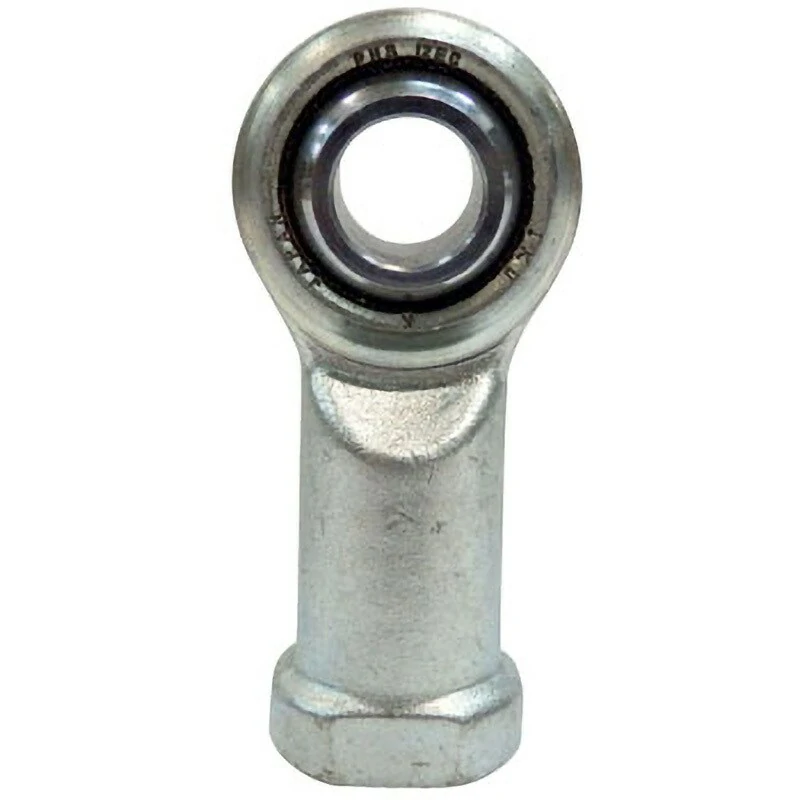

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The Pillow Ball Rod End｣ｬ has male or female threads processed in the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
