Description
Capacity: 1 piece
Axis diameter (mm): 15
RoHS directive (10 substances compliance): Compliance
Load type: Light load

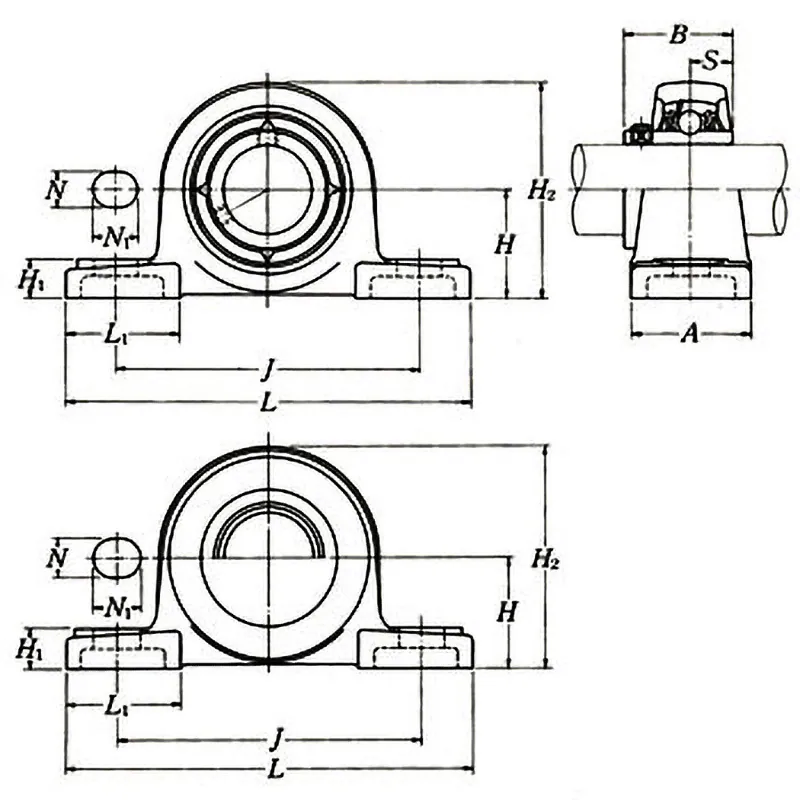

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 30.2
Dimension H1 (mm): 14
Dimension H2 (mm): 62
Dimension J (mm): 95
Dimension L (mm): 127
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 12.7
Axis diameter (mm): 15

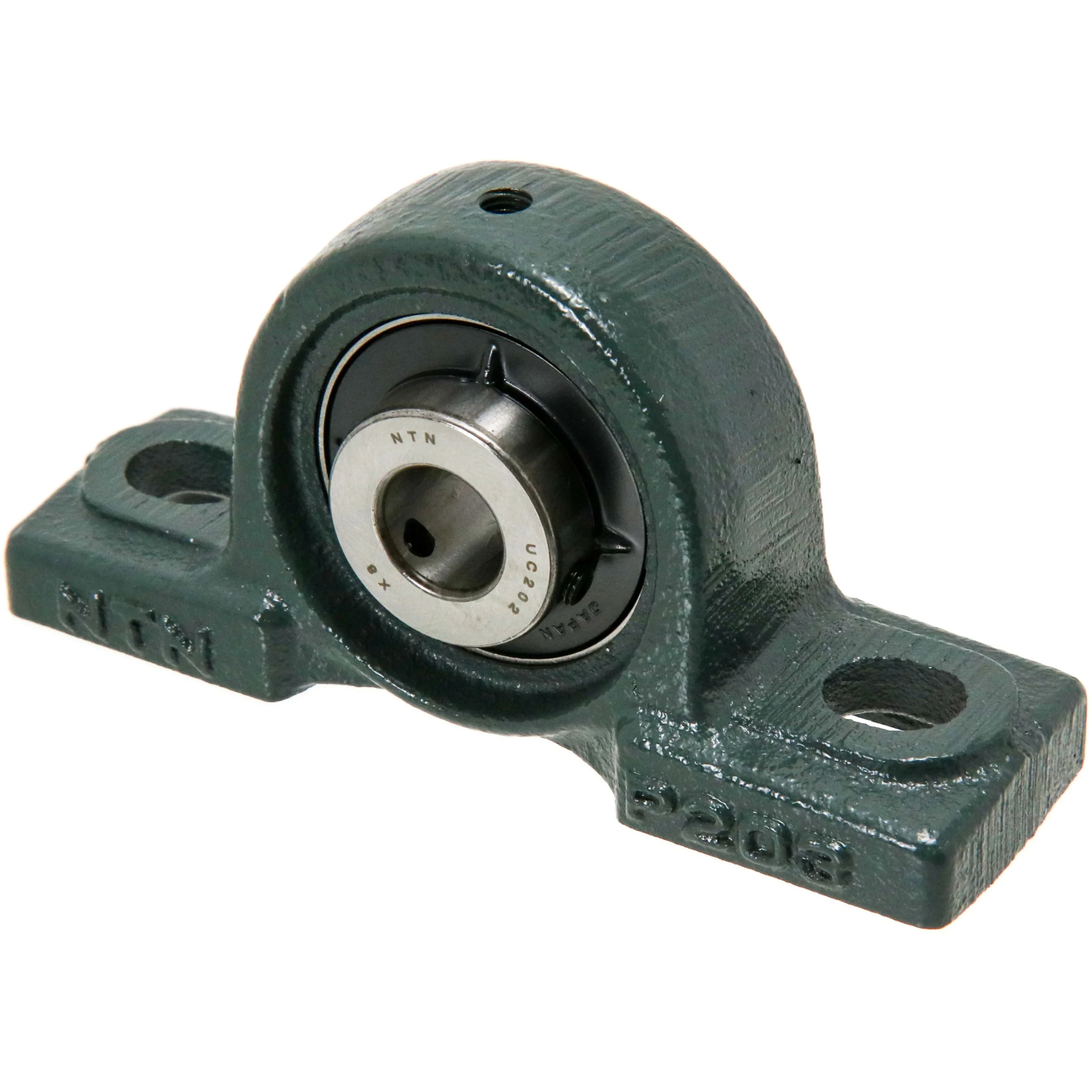

Shape: Pillow block unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 0.7 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 6.65
Basic dynamic load rating (kN): 12.8
Mounting bolt designation: M10
RoHS directive (10 substances compliance): Compliance
This is a typical type of bearing unit, equivalent to the widely used plain block and self-aligning ball bearings combination, and can be easily mounted onto the shaft by tightening the set screw with the ball, making it most commonly used in transmission equipment and general machinery.
