Description
Contents: 1 piece
Axis diameter (mm): 12
Load type: Light load

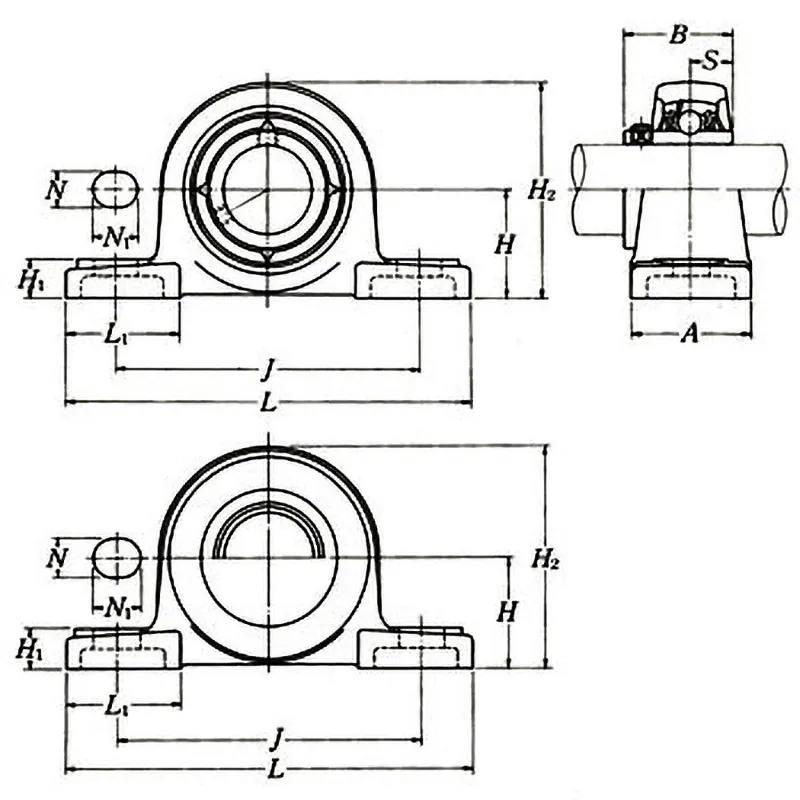

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 30.2
Dimension H1 (mm): 14
Dimension H2 (mm): 62
Dimension J (mm): 95
Dimension L (mm): 127
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 12.7
Axis diameter (mm): 12
Shape: Pillow-type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Mass (kg): 0.7 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 6.65
Basic dynamic load rating (kN): 12.8
Mounting bolt designation: M10

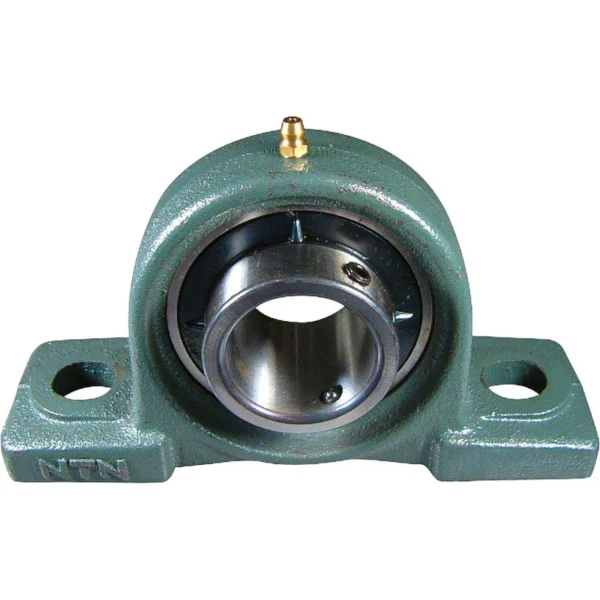

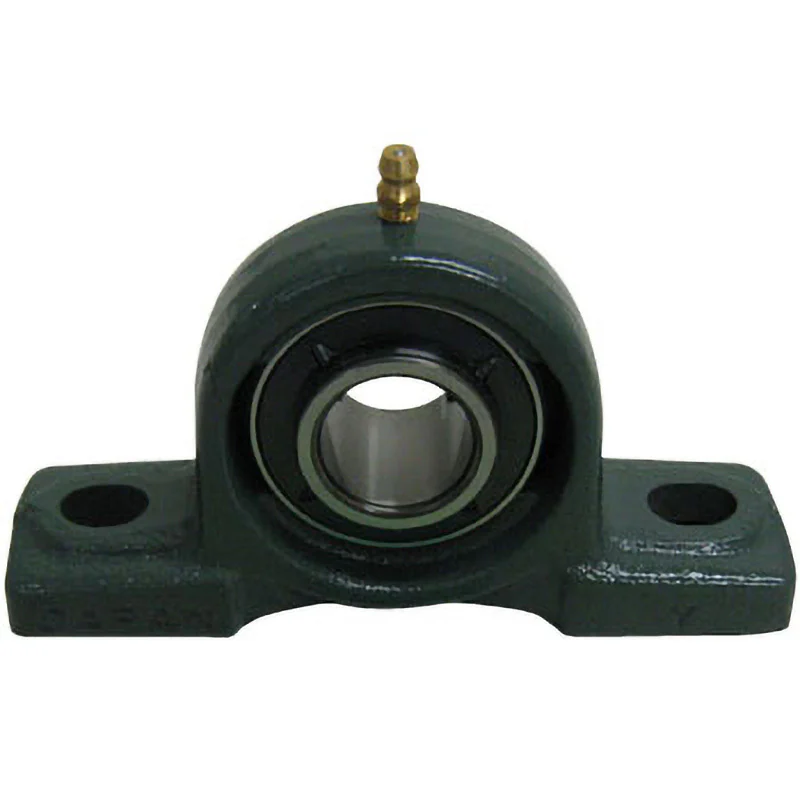

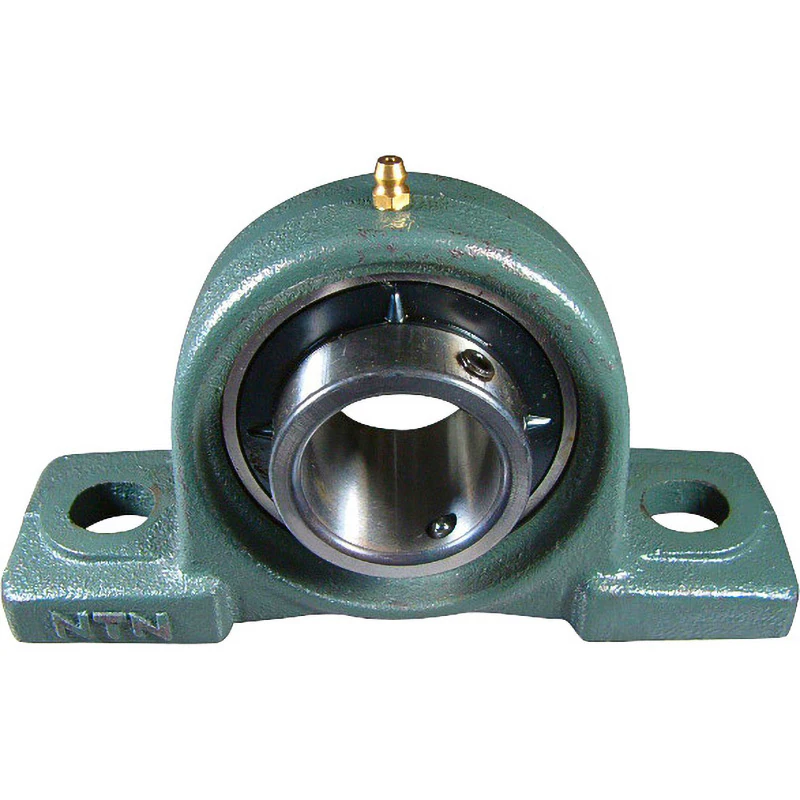

This is a representative type of bearing unit, equivalent to the combination of the traditionally widely used plummer block and self-aligning ball bearing, making it easy to mount on the shaft simply by tightening the ball-inserted set screw, and it is most commonly used in transmission devices and general machinery.
