Description

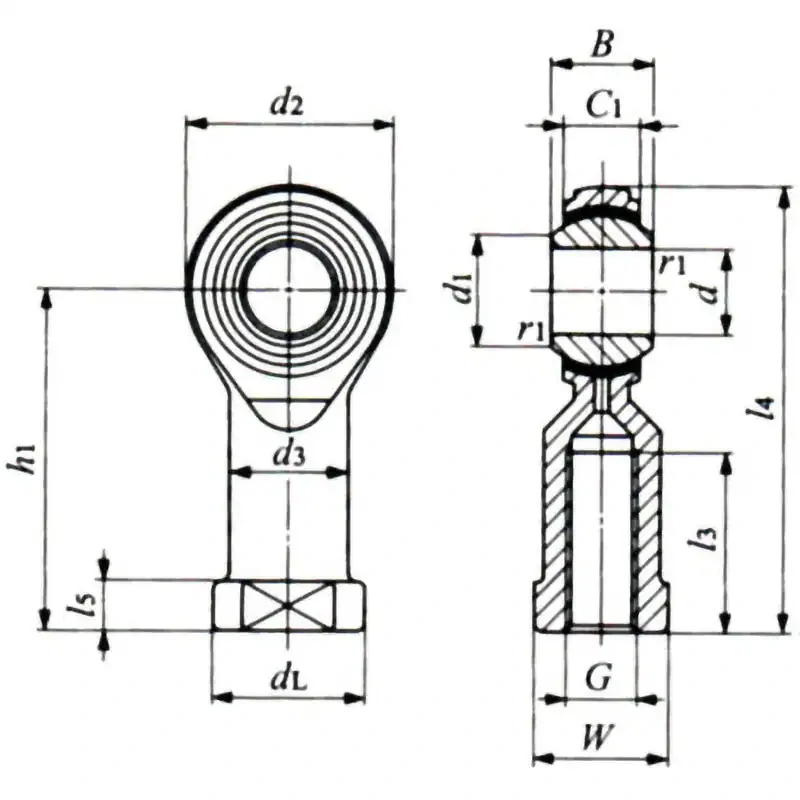

Dimension B (mm): 14
Dimension C1 (mm): 10.5
Dimension G (mm): M10*1.5
Dimension W (mm): 17
Dimension d (mm): 10
Dimension d1 (mm): 12.9
Dimension d2 (mm): 26
Dimension d3 (mm): 15
Dimension dL (mm): 19
Dimension h1 (mm): 43
Dimension l3 (mm): 19.5
Dimension l4 (mm): 56
Dimension l5 (mm): 6.5
Chamfer Dimension r1 (mm): 0.2
Specification: 1 N is approximately equal to 0.102 kgf
Material: Chrome Plating (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 72
Type: With Female Thread
Material (Bushing): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 19600
Static Load Capacity (N): 10500
Ball Diameter (mm): 19.050

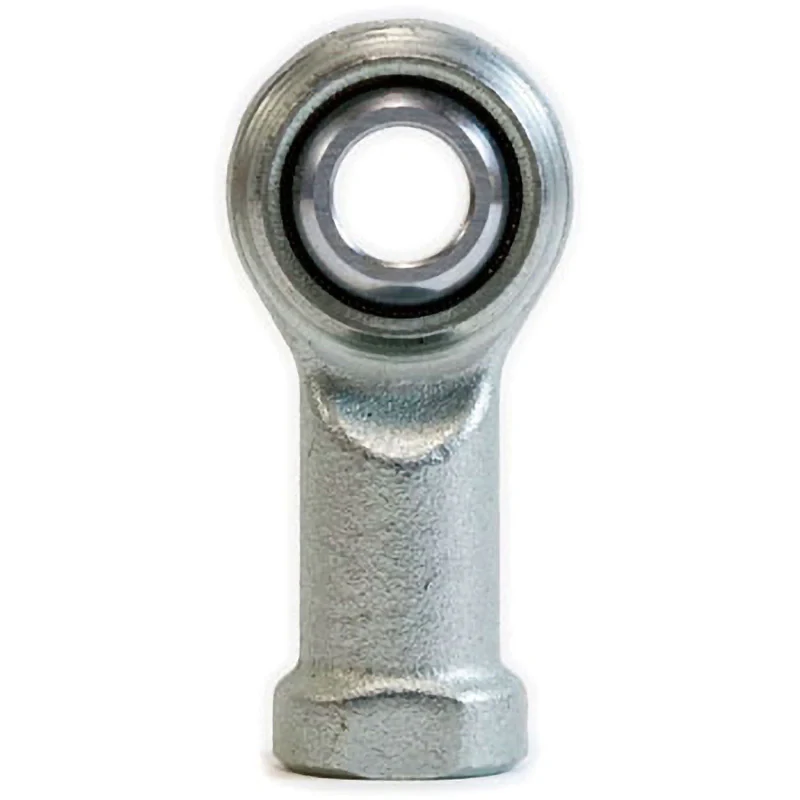

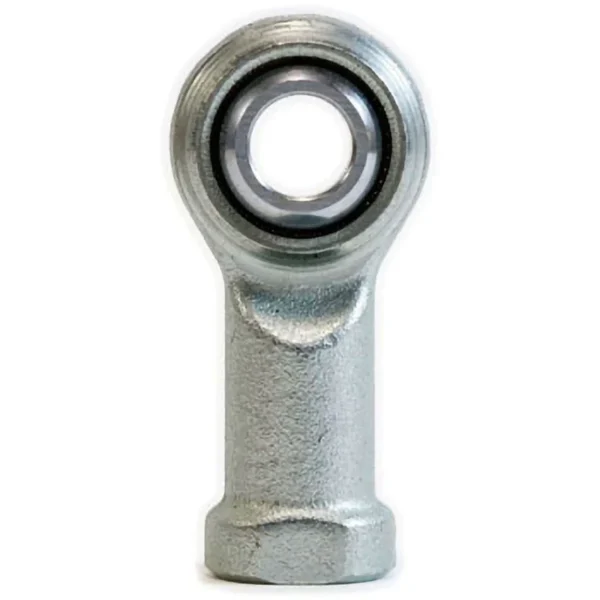

This is a self-aligning spherical plain bearing that can simultaneously support large radial loads and bidirectional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has either a female or male thread processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ packaging machines｣ｬ and others.
