Description

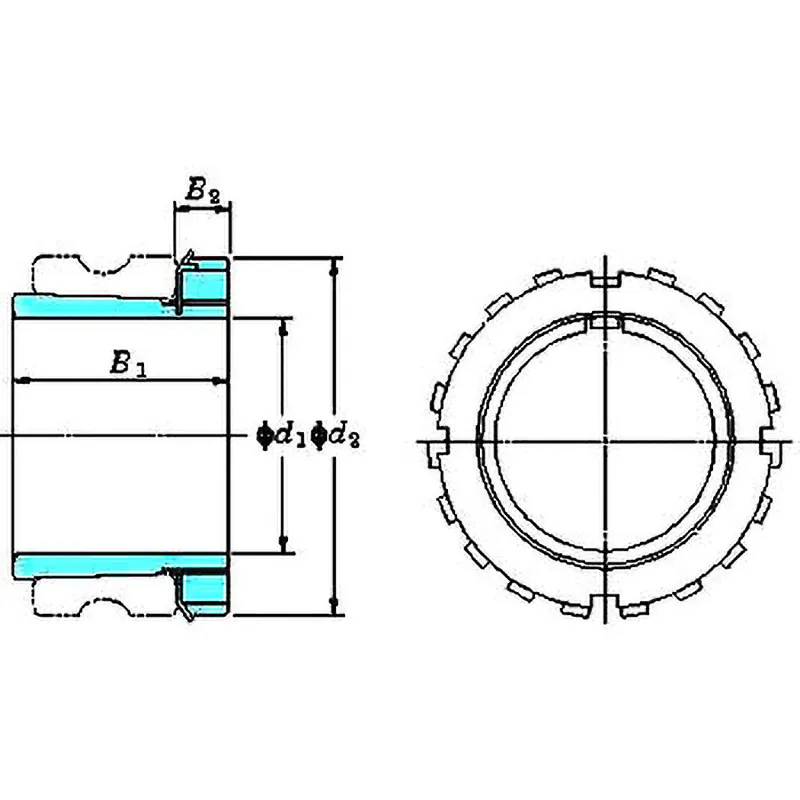

Dimensions B1 (mm): 131
Dimensions B2 (mm): 24
Dimensions d2 (mm): 180
Axis hole diameter d1 (mm): 125
Usage: Fixing the axis

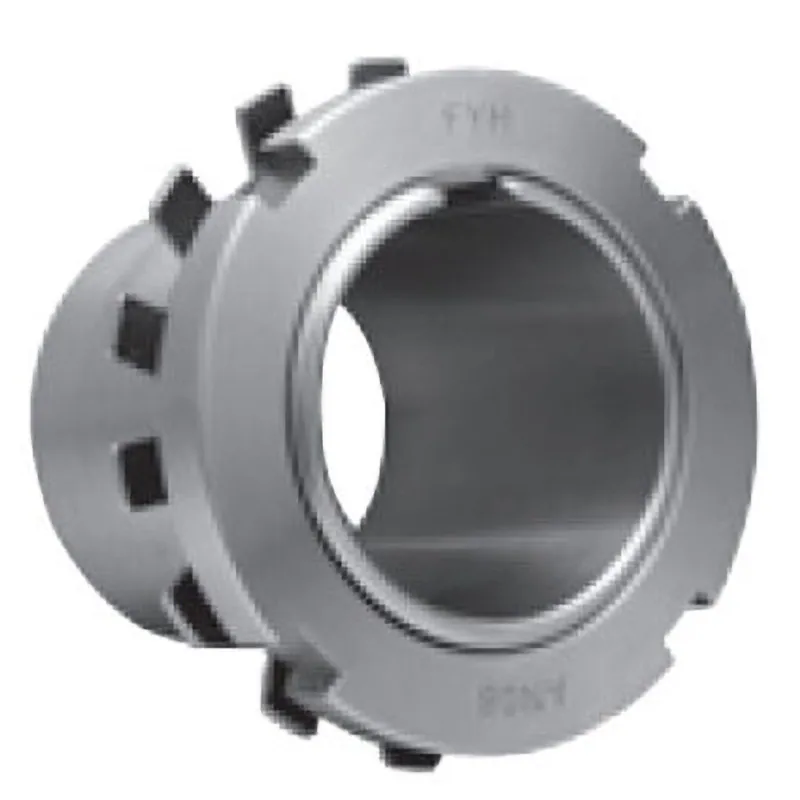

Type: Adapter
Type H
Compatibility: Sleeve A2328X
RoHS directive (10 substances compliance): Compliant
Compatibility: Bearing UK328, UKP328, UKF328
Used nut: AN28
Used washer: AW28
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
