Description
Inner diameter d (mm): 4;
Outer diameter D (mm): 7;
Width B (mm): 2.5;
Shield shape: Double-sided steel plate shield type (fixed by snap ring);
Material: (Main body) Martensitic stainless steel;

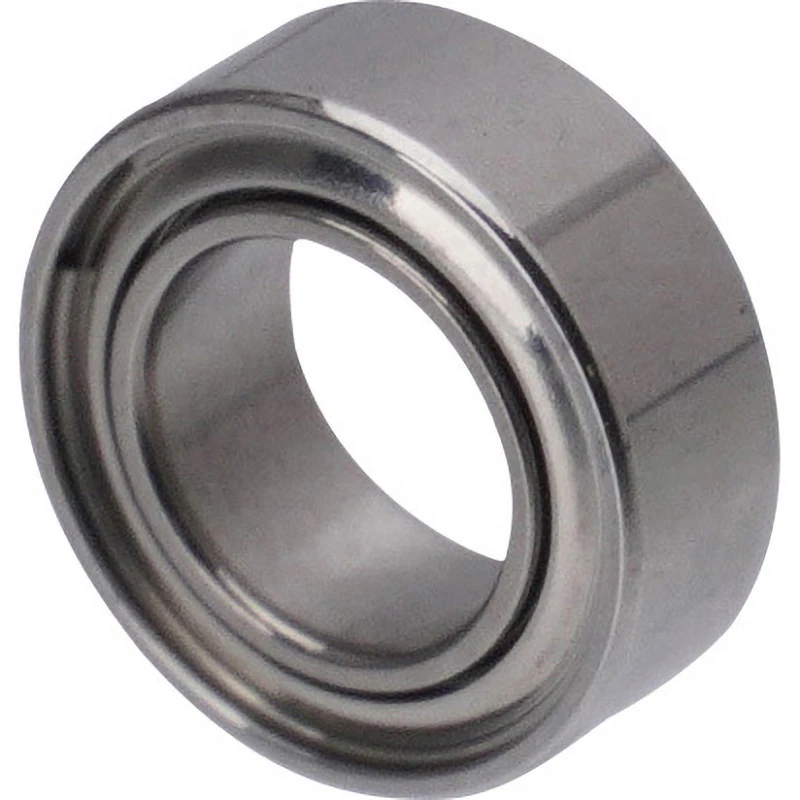

Bearing Designation: 674ZZ;
Compliant with RoHS Directive (corresponding to 10 substances);
Basic dynamic load rating Cr (N): 252;
Basic static load rating Cor (N): 106;
JIS grade: 0;
Load direction: Radial;
Outer ring type: Flat;
Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material:Martensitic stainless steel
