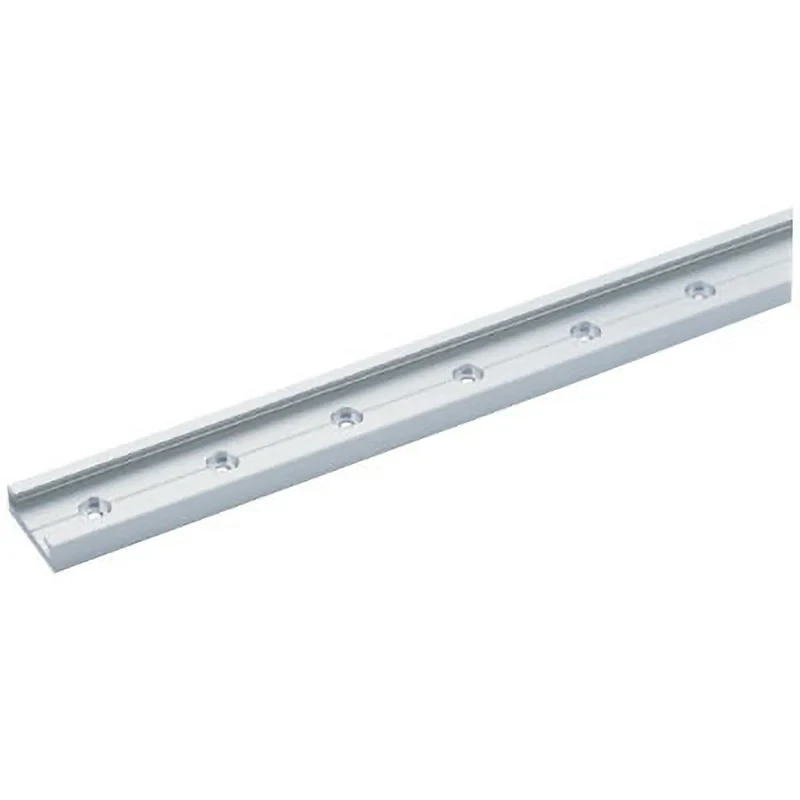

Description
Width W (mm): 8.2
Type: Linear
Rail Length (mm): 2000
Material: (Rail) Aluminum Alloy
Surface Treatment: (Rail) Silver Anodized Treatment
Dimension A (mm): 20
Dimension B (mm): 2000
Dimension C (mm): 25
Dimension D (mm): 50
Dimension F (mm): 7.2
Dimension E (mm): 12.4
Dimension G (mm): 8.5
Dimension J (mm): 40
Finish: Silver Anodized Treatment
Dimension H (mm): 1.6
Material: Aluminum Alloy
Weight (g): 400
Recommended Screw: Hex Socket Button Bolt M4
Application: For Mini Guide Carriage MR-20CS
Trusco Part Number: 377-0311
RoHS Directive (10 Substances Compliance): Compliant
Due to the use of a special polyethylene resin with good sliding characteristics, there is no need for grease or oil application.
The special polyethylene resin has excellent chemical resistance and is stable against various chemical agents.
Flame Retardancy: UL94HB
There is also a preloaded type carriage with minimal play.
The rail is recyclable.
