Description

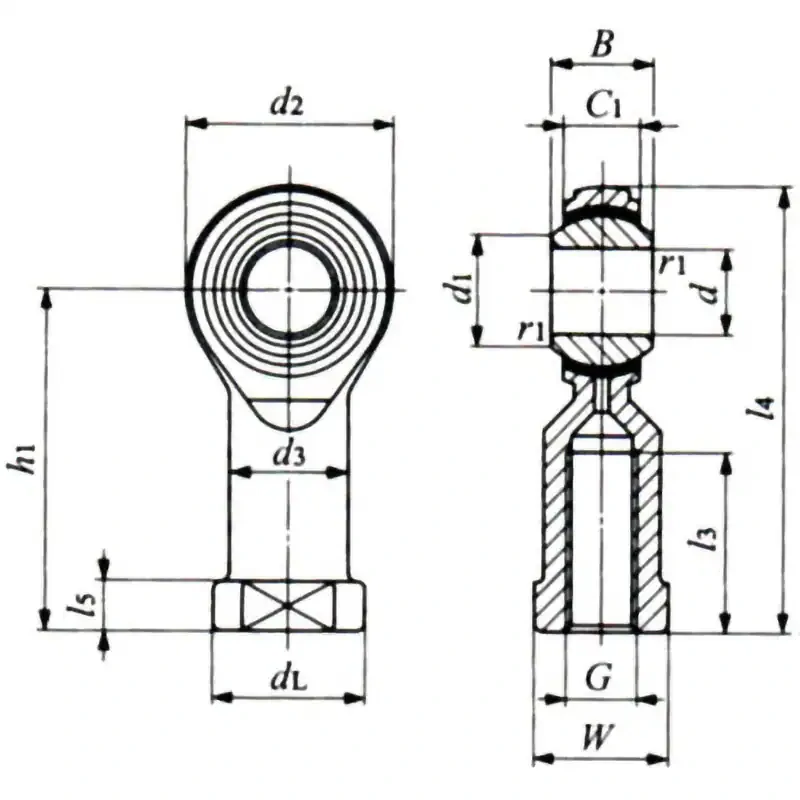

Dimension B (mm): 12
Dimension C1 (mm): 9
Dimension G (mm): M8*1.25
Dimension W (mm): 14
Dimension d (mm): 8
Dimension d1 (mm): 10.4
Dimension d2 (mm): 22
Dimension d3 (mm): 12.5
Dimension dL (mm): 16
Dimension h1 (mm): 36
Dimension l3 (mm): 16
Dimension l4 (mm): 47
Dimension l5 (mm): 5
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Mass (g): 43
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 14000
Static Load Capacity (N): 7760
Ball Diameter (mm): 15.875
This is an automatically self-aligning spherical sliding bearing capable of bearing large radial loads and bi-directional axial loads simultaneously with a small capacity.

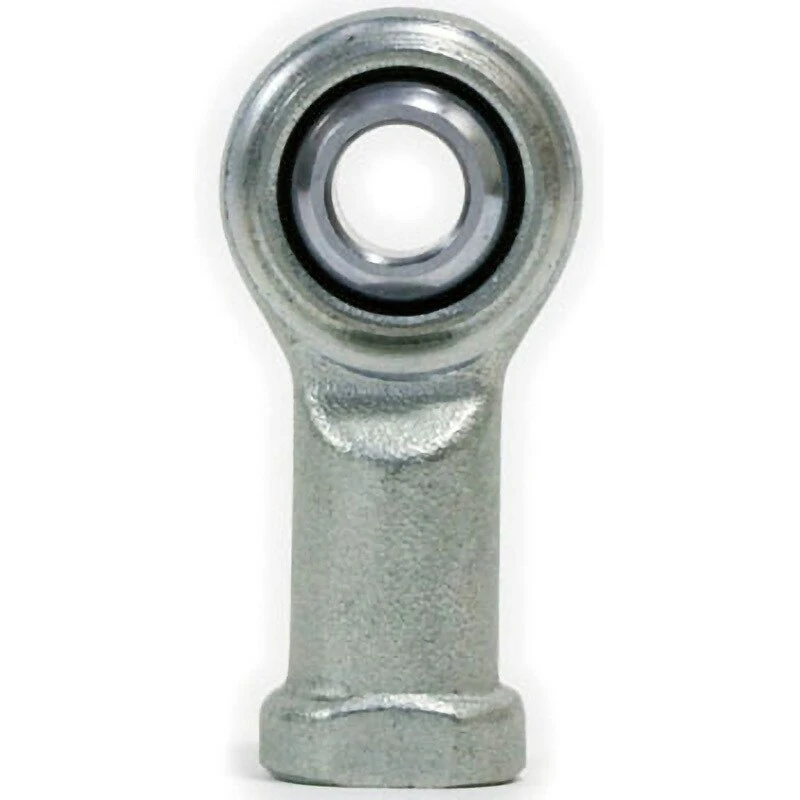

Pillow ball Rod End｣ｬs have male or female threads processed into the body｣ｬ making installation easy.
Used in control mechanisms and linkage mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
