Description

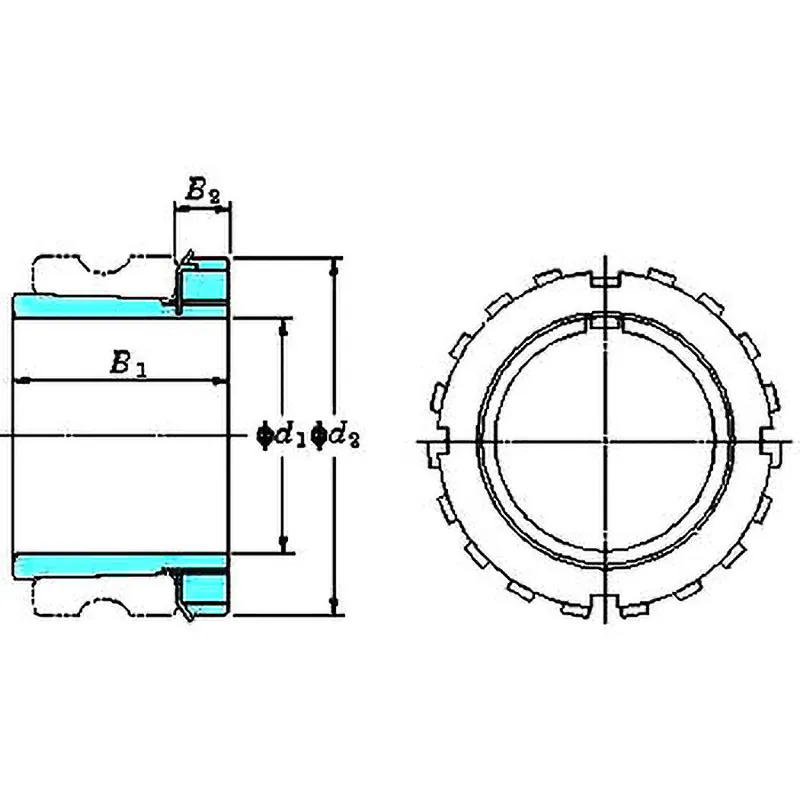

Dimensions B1 (mm): 121
Dimensions B2 (mm): 23
Dimensions d2 (mm): 165
Axis hole diameter d1 (mm): 115
Purpose: Fixing the axis

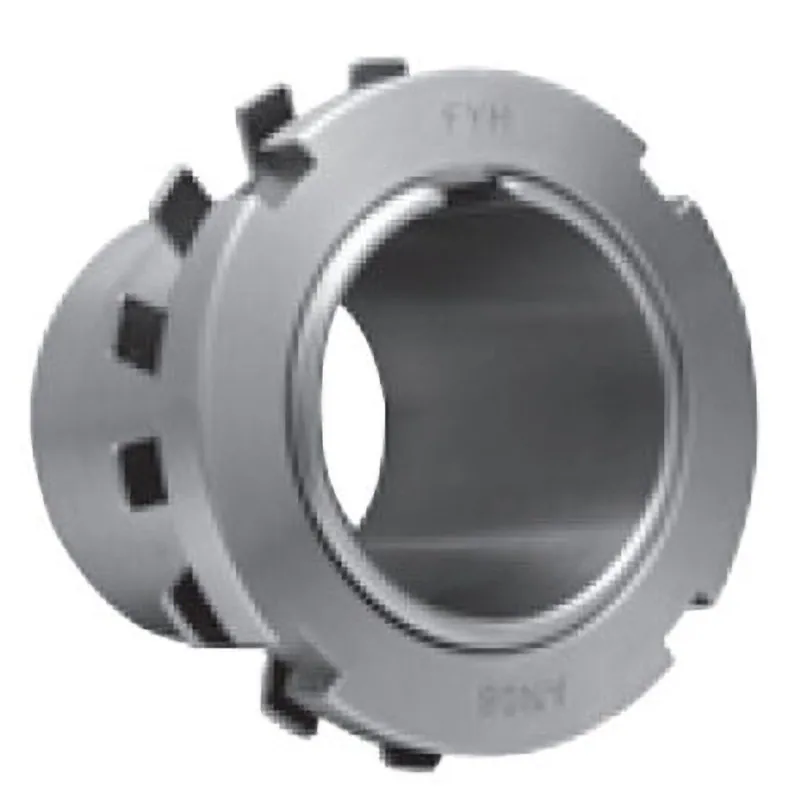

Type: Adapter
Type H
Compatibility: Sleeve A2326X
RoHS Directive (10 substances compliance): Compliant
Compatibility: Bearing UK326, UKP326, UKF326
Used Nut: AN26
Used Washer: AW26
Manufacturer
Washers, sleeves, and lock nuts are individually replaceable.
