Description
Description: Quantity: 1 piece
Coil Rated Voltage (V): AC100
Compatible Motor Capacity (200-240V) (kW): Three-phase Squirrel Cage Motor (AC-3 Grade): 5.5
Compatible Motor Capacity (380-440V) (kW): Three-phase Squirrel Cage Motor (AC-3 Grade): 11
Compatible Motor Capacity (500-550V) (kW): Three-phase Squirrel Cage Motor (AC-3 Grade): 11
Compatible Motor Capacity (200-220V) (kW): Three-phase Squirrel Cage Motor (AC-3 Grade): 5.5

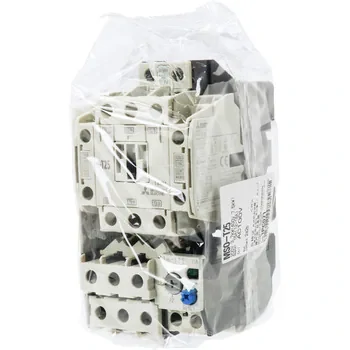

Model Number: MSO-T25 3.7KW 200V AC100V
Motor Capacity (kW): 3.7
Auxiliary Contacts: 2a2b
Frame: T25
Compatible Thermal Relay: 2-element thermal relay included, (Model Name): TH-T25
Heater Call (A): 15
Heat Element Rated Setting Range (A): 12-18
Coil Rated Voltage (V): AC100
Type: Open Type
Category: Electromagnetic Contactor
Operating Method: Non-reversible
Main Circuit Voltage (V): 200
Specifications: Terminal section specifications: Standard specifications, Operating coil input: Continuous/7VA, Instant activation/75VA
Length (mm): 128
Width (mm): 63
Thickness (mm): 82
Weight (kg): 0.58
Mounting Method: IEC 35mm Rail, Screw
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated Insulation Voltage (V): 690
Rated Operating Current (A): Three-phase Squirrel Cage Motor (AC-3 Grade): (200-220V) 26 / (380-440V) 25 / (500-550V) 20, Resistive Load (AC-1 Grade) (200-240V): 32 / (380-440V): 32
Mechanical Durability: 10 million cycles
Electrical Durability: AC-3 Grade: 2 million cycles, AC-4 Grade: 30,000 cycles, AC-1 Grade: 500,000 cycles
Rated Impulse Withstand Voltage (kV): 6
Pollution Degree (Operating Environment): 3
Switching Frequency (cycles/hour): AC-3 Grade: 1800, AC-4 Grade: 300, AC-1 Grade: 1200
Open Thermal Current (A): 32
Operating Method: Operating Coil, Operating Circuit: Standard Specifications
Compatible Motor Capacity (200-240V) (kW): Three-phase Squirrel Cage Motor (AC-3 Grade): 5.5
