Description

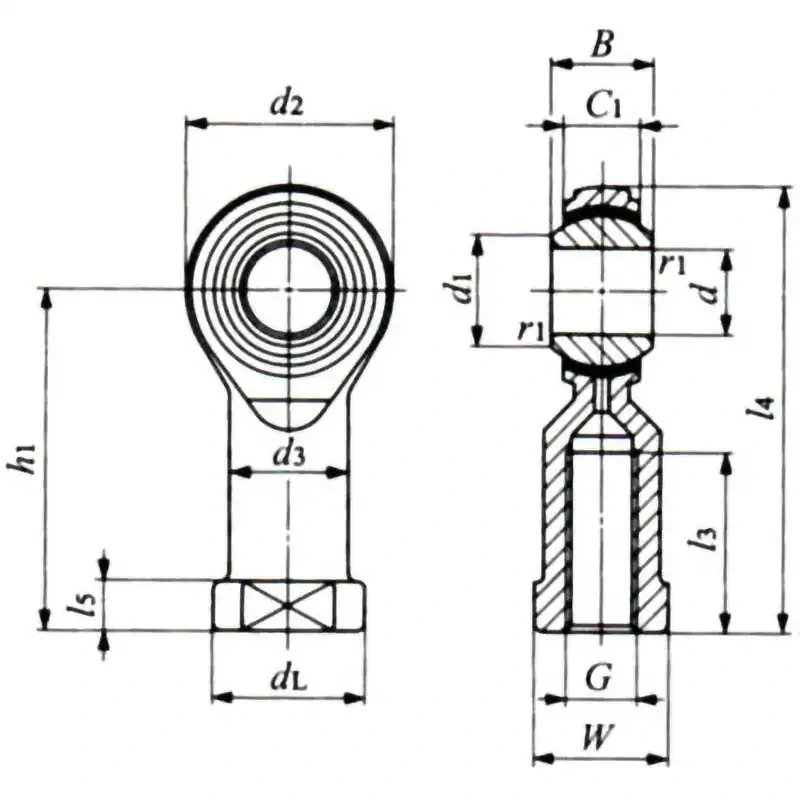

Dimension B (mm): 9
Dimension C1 (mm): 6.75
Dimension G (mm): M6*1
Dimension W (mm): 11
Dimension d (mm): 6
Dimension d1 (mm): 9
Dimension d2 (mm): 18
Dimension d3 (mm): 10
Dimension dL (mm): 13
Dimension h1 (mm): 30
Dimension l3 (mm): 13.5
Dimension l4 (mm): 39
Dimension l5 (mm): 5
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 25
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 8410
Static Load Capacity (N): 4940
Ball Diameter (mm): 12.700

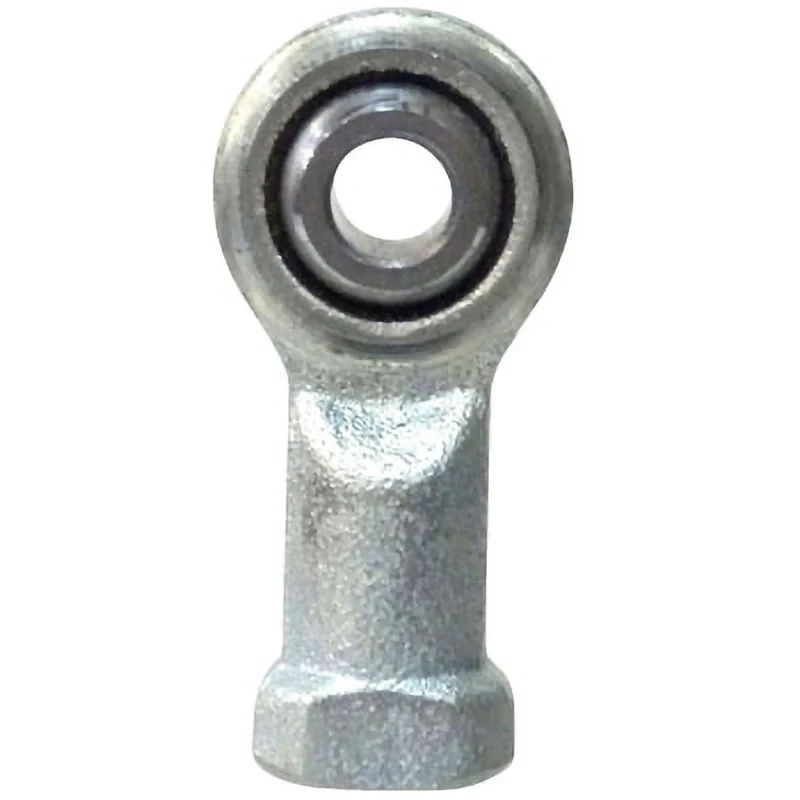

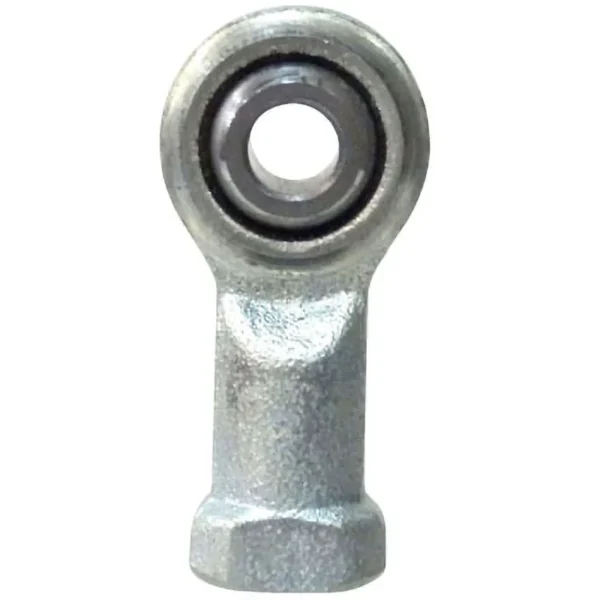

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has male or female threads processed on the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms for machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
