Description

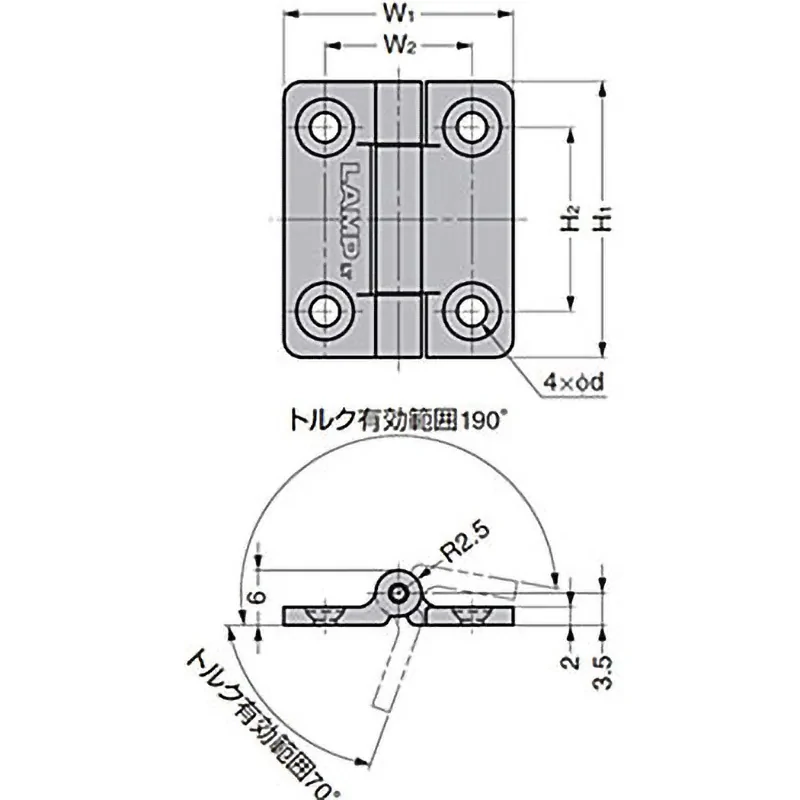

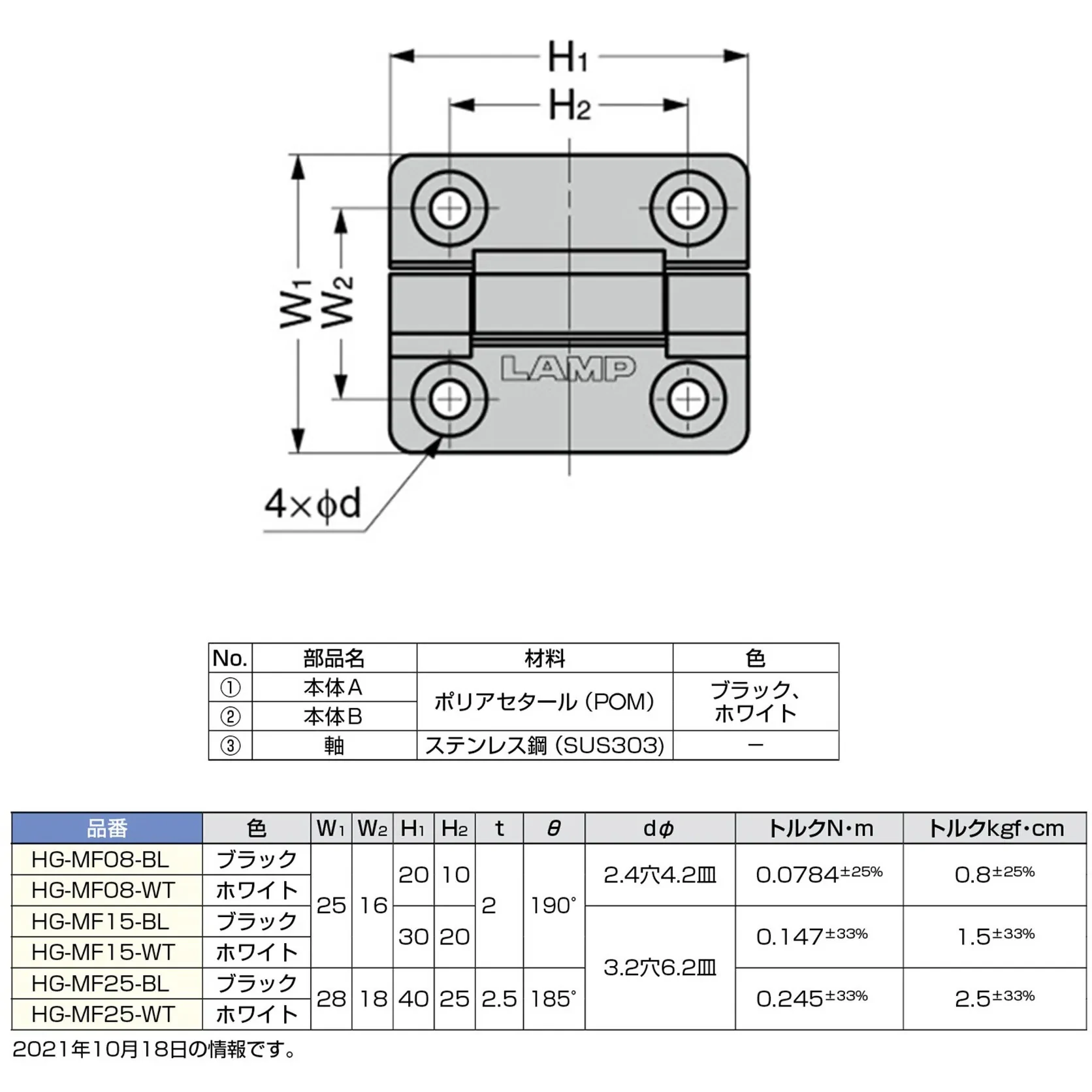

Dimensions H1 (mm): 40
Dimensions H2 (mm): 25
Dimensions W1 (mm): 28
Dimensions W2 (mm): 18
Dimensions d (mm): 3.2 hole 6.2 dish
Dimensions t (mm): 2.5
Material: (Body A, Body B) Polyacetal (POM), (Axis) Stainless Steel (SUS304)
Color: Black
Usage: Small lightweight doors for office equipment and store fixtures
Trusco Part Number: 486-0934
Weight (g): 5
Type: Flat hinge type
Torque Value N*cm (kgf cm): 24.5 (2.5)
The manufacturer has passed a 20,000 open and close test.

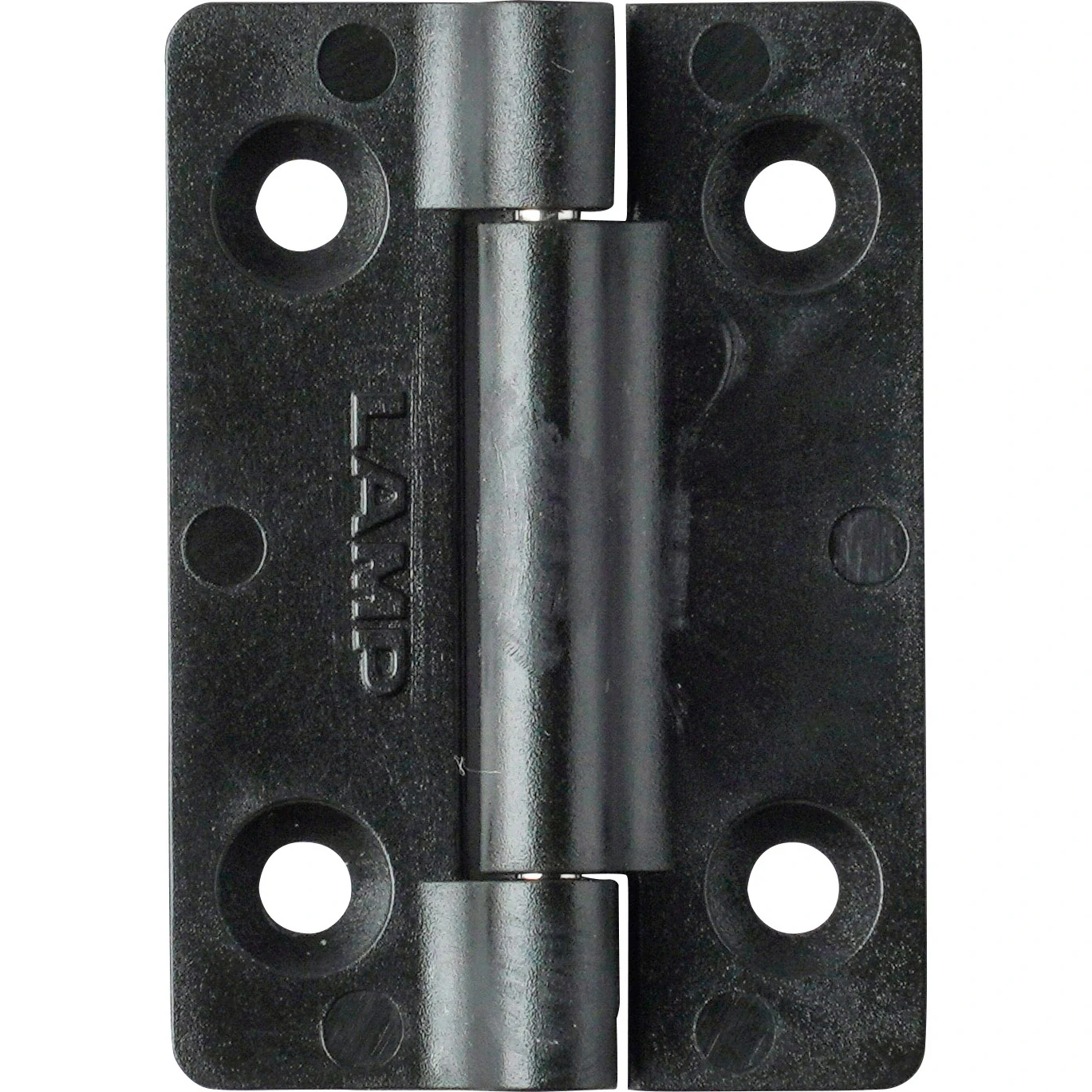

This is a small torque hinge made of resin.
