Description
Description
Quantity: 1 piece

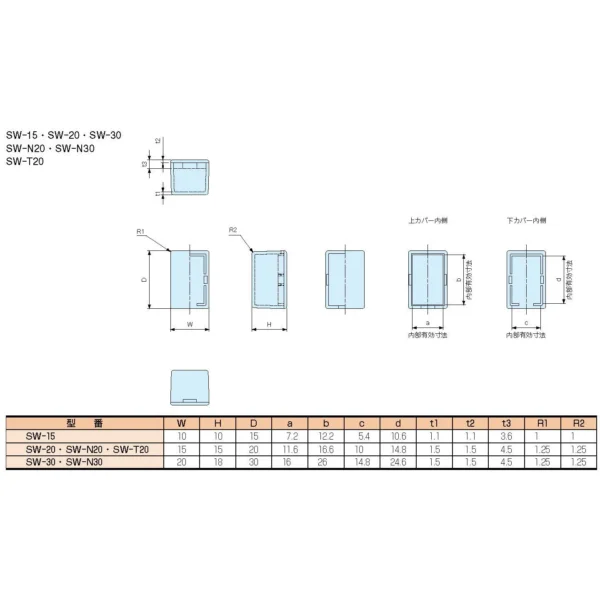

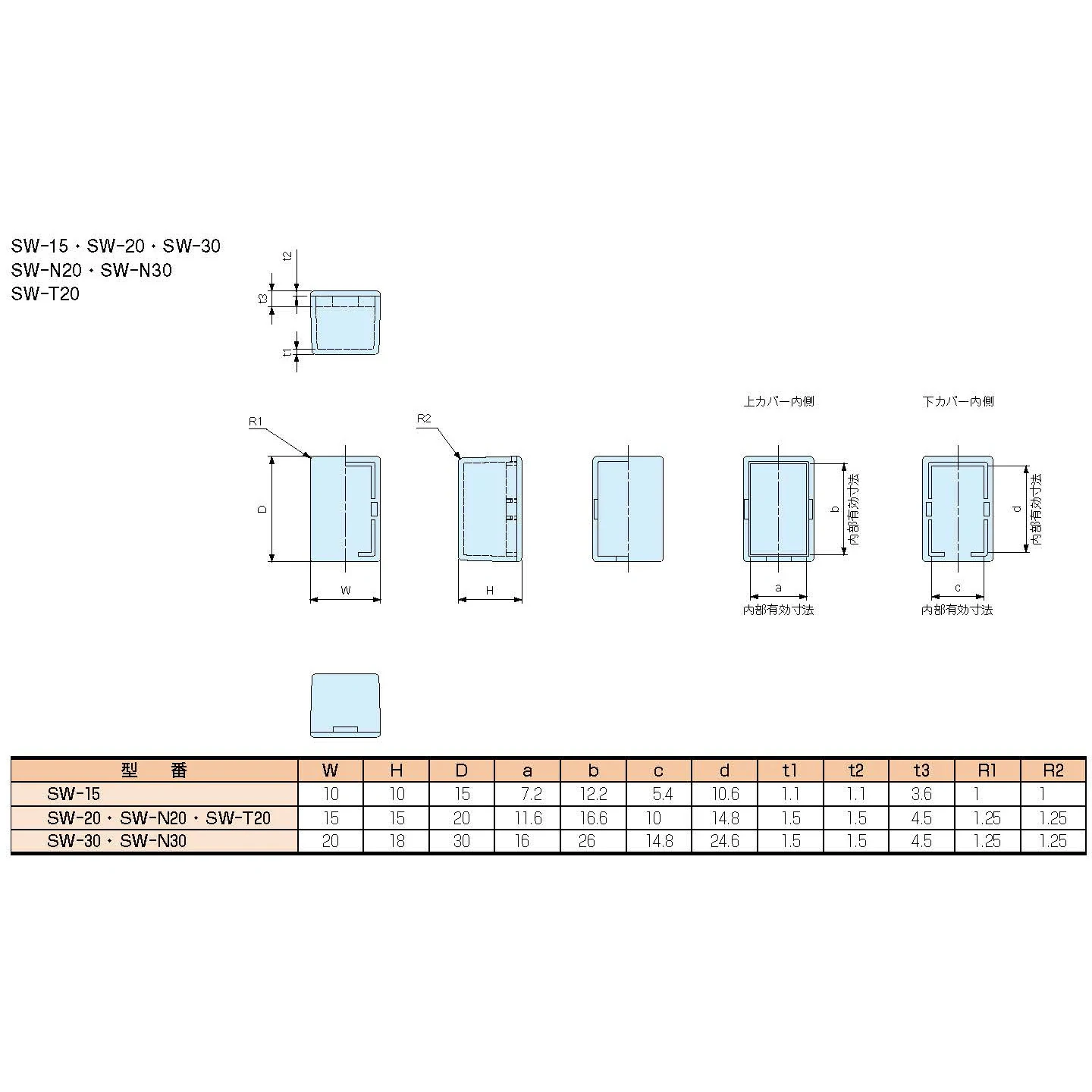

External dimensions D (mm): 30
Material (Cover): ABS resin UL94HB
Material (Body): ABS resin (UL94HB)
Part number: SW-30B
Type: Type B
Operating temperature range (Celsius degrees): -10 to 60
External dimensions D (mm): 30
External dimensions W (mm): 20
External dimensions H (mm): 18
Finish: Overall textured finish
Material (Cover): ABS resin UL94HB
Flame retardancy: –
Material (Body): ABS resin (UL94HB)
Dimension R1 (mm): –
Dimension R2 (mm): –
Dimension t1 (mm): –
Dimension t2 (mm): –
Dimension t3 (mm): –
Color (Cover): Black
Corresponding body color: Black
RoHS Directive (10 substances compliance): Compliant
Characteristics: General-Purpose type
Weight (g): 4
Effective dimension (Width) (mm): 14.8 (Internal)
Effective dimension (Depth) (mm): 24.8 (Internal)
Effective dimension (Height) (mm): 12 (Internal)

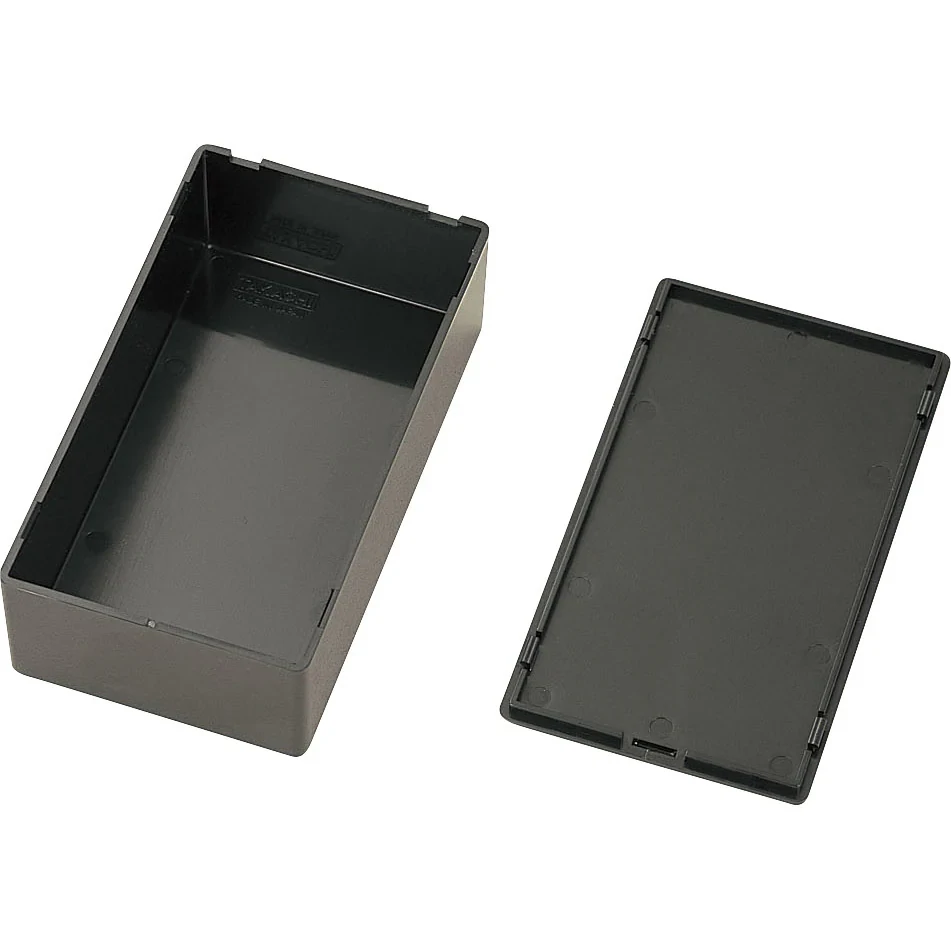

One-touch Open-Close structure.
Internal space is spacious and usable.
Compact case with multi-purpose type.
