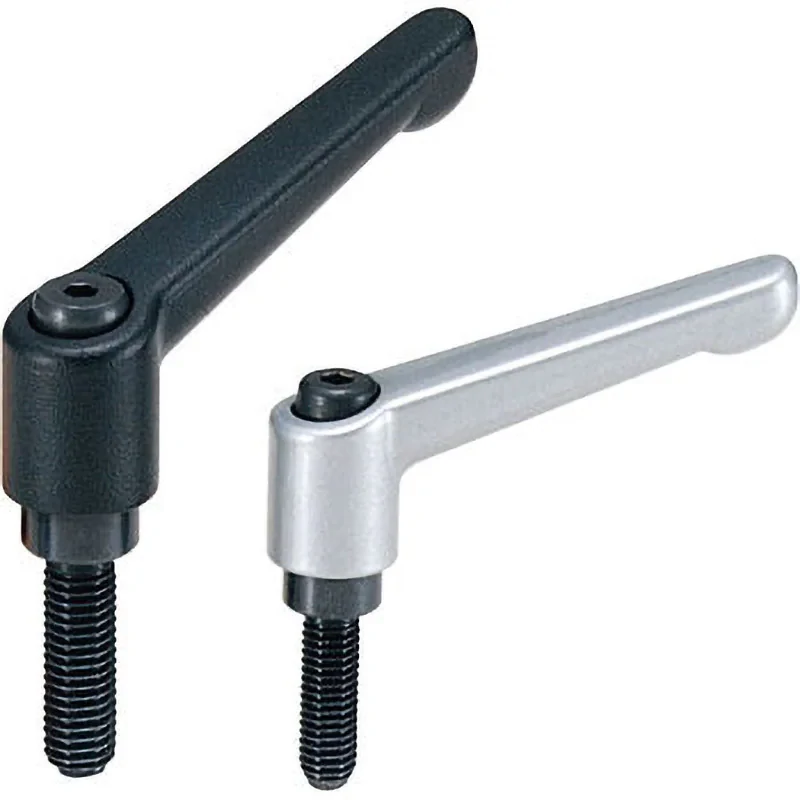

GEO.PRINCE TAKESHITA Clamp Lever LDM-5-20-BK

¥851

SKU: r22122274c207 Category:

Description

Content: 1 piece
Mounting Hole Diameter (mm): M5
Mounting Length (mm): 20
Part Number: LDM-5-20-BK

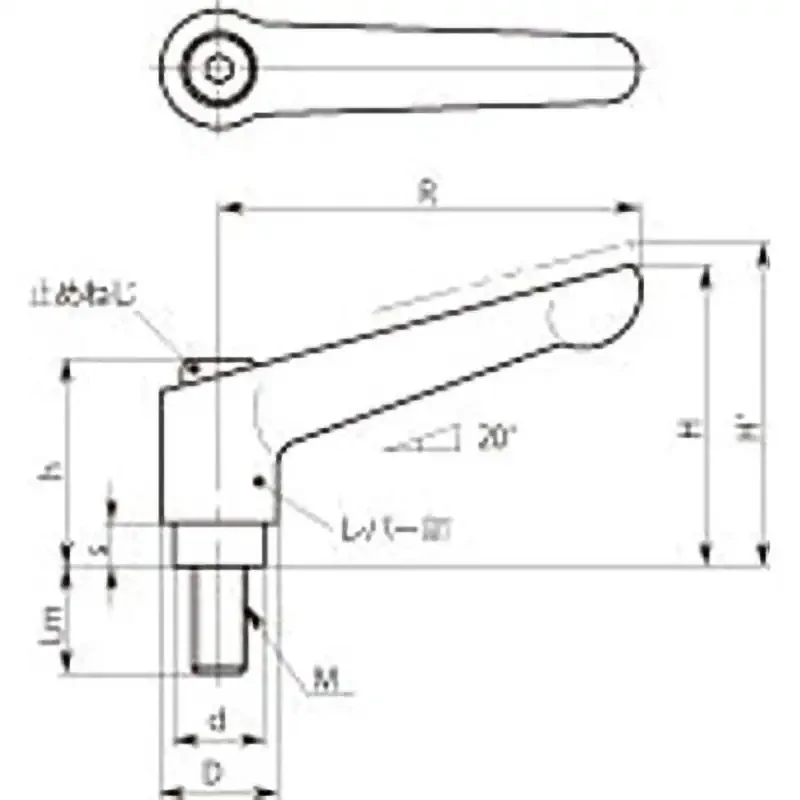

Dimension D (mm): 13
Dimension H’ (mm): 37.5
Dimension H (mm): 34
Dimension Lm (mm): 20
Dimension R (mm): 45
Dimension d (mm): 10
Dimension h (mm): 24.5
Dimension s (mm): 4
Type: Clamp Lever
Shape: L-Shaped
Mounting Section: Male Thread
Mounting Hole Diameter (mm): M5
Mounting Length (mm): 20
Turning Radius (mm): 45
Material (Main Body): Zinc Die-Cast
Number of Teeth: 18
Material (Thread Section): SUM22L
Surface Treatment (Lever Section): Electrostatic Painting
Maximum Load (N): 60
Maximum Tightening Force (kN): 3.9
Lever Color: Matte Black
Material (Spring): Stainless Steel Wire or SWPB
As a machine assembly component
As a replacement part for existing machinery
