Description

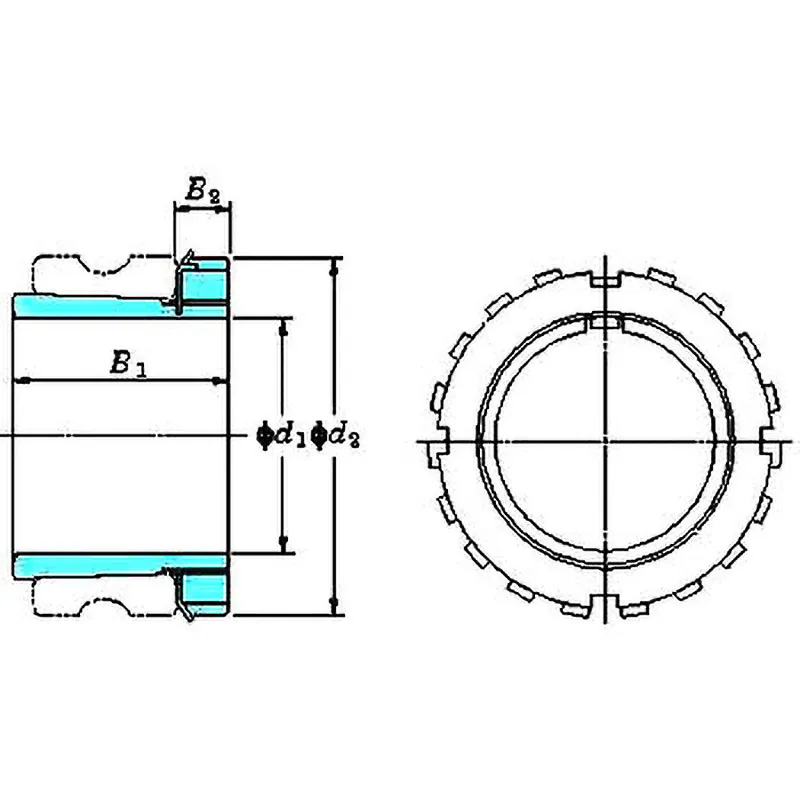

Dimension B1 (mm): 105
Dimension B2 (mm): 21
Dimension d2 (mm): 145
Axis hole diameter d1 (mm): 100
Usage: Fixing the axis

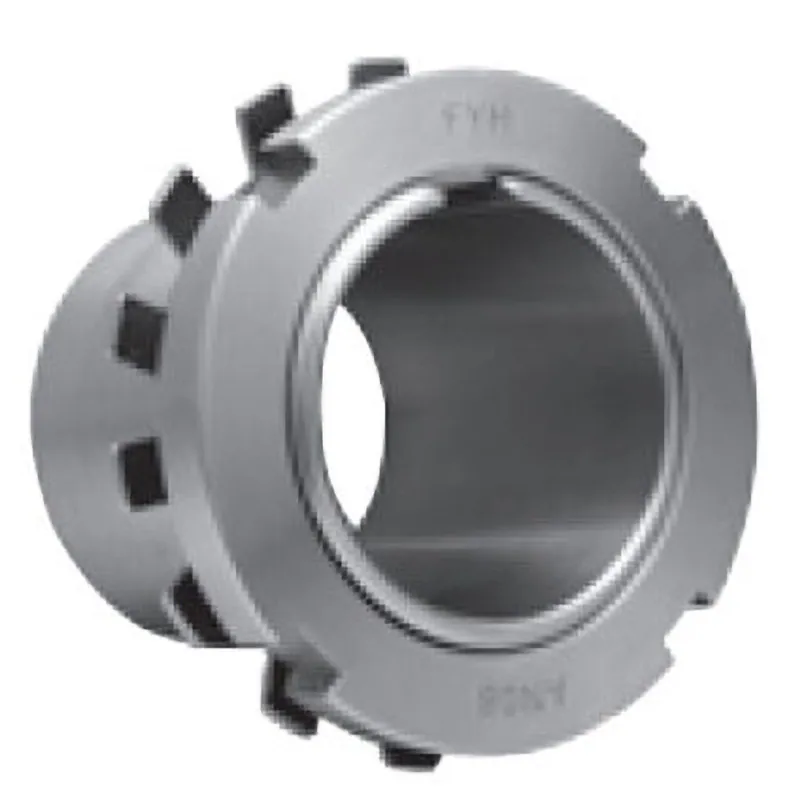

Type: Adapter
Type H
Compatibility: Sleeve A2322X
RoHS Directive (10 substances compliance): Compliant
Compatibility: Bearing UK322, UKP322, UKF322
Used Nut: AN22
Used Washer: AW22X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
