Description

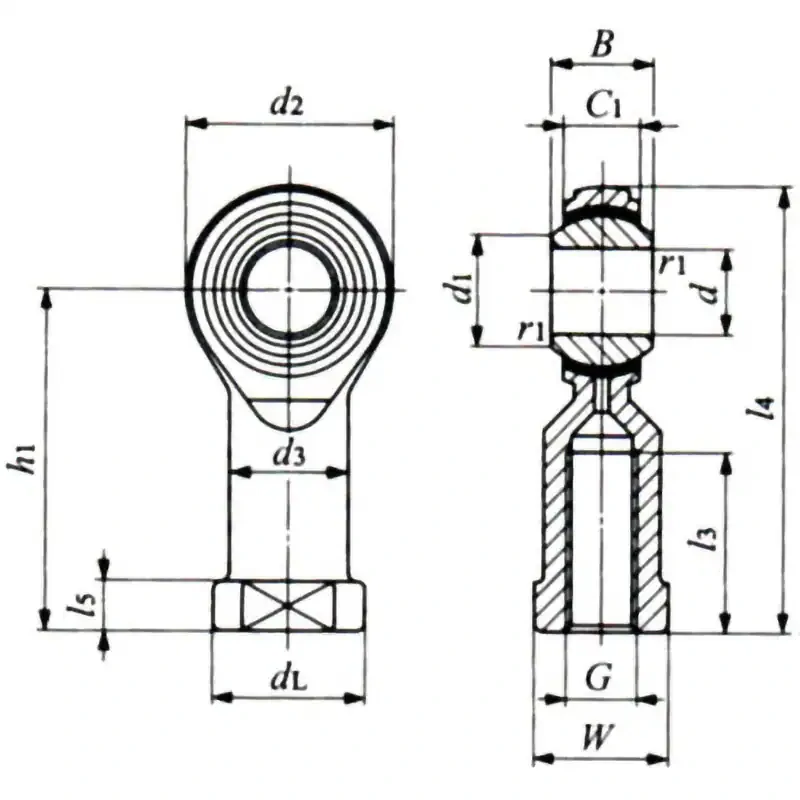

Dimensions B (mm): 7
Dimensions C1 (mm): 5.3
Dimensions G (mm): M4*0.7
Dimensions W (mm): 8
Dimensions d (mm): 4
Dimensions d1 (mm): 6.5
Dimensions d2 (mm): 14
Dimensions d3 (mm): 8
Dimensions dL (mm): 9.5
Dimensions h1 (mm): 24
Dimensions l3 (mm): 12
Dimensions l4 (mm): 31
Dimensions l5 (mm): 4
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome plated (spherical inner ring)
Material (main body): Zinc chromate
Weight (g): 11.9
Type: With Female Thread
Material (bush): Special copper alloy
Thread direction: Right thread
Lubrication type: Lubrication-Free｣ｬtype
Dynamic load capacity (N): 4950
Static load capacity (N): 3260
Ball diameter (mm): 9.525

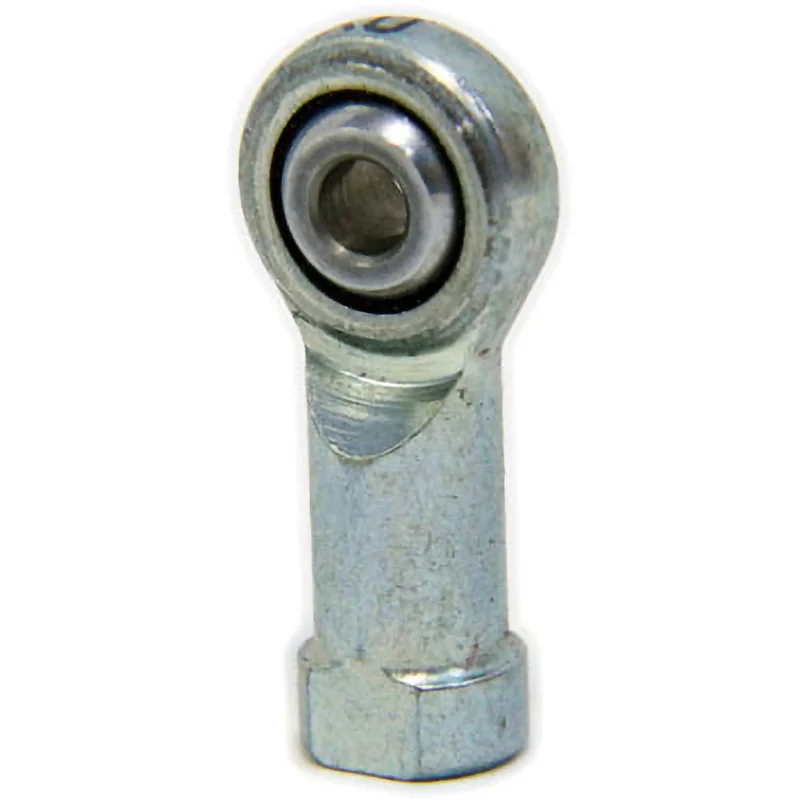

This is a self-aligning spherical sliding bearing that can simultaneously support a large radial load and bi-directional axial loads with a small capacity.
Pillow ball Rod End｣ｬs have internal or external threads processed in the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ and packaging machines.
