Description

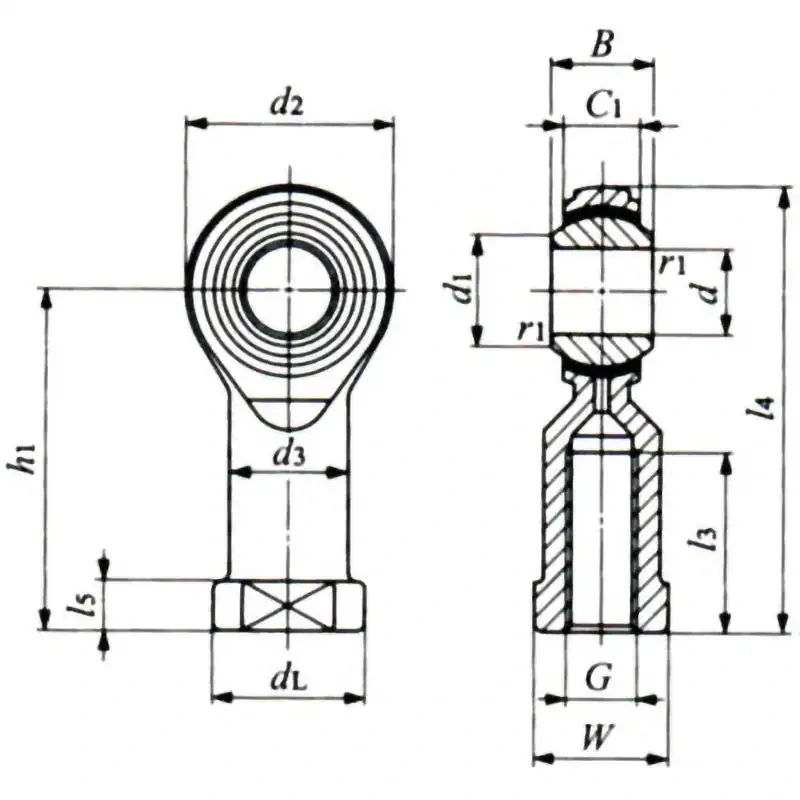

Dimension B (mm): 6
Dimension C1 (mm): 4.5
Dimension G (mm): M3*0.5
Dimension W (mm): 5.5
Dimension d (mm): 3
Dimension d1 (mm): 5.2
Dimension d2 (mm): 12
Dimension d3 (mm): 5
Dimension dL (mm): 6.5
Dimension h1 (mm): 21
Dimension l3 (mm): 10
Dimension l4 (mm): 27
Dimension l5 (mm): 3
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome-plated (spherical inner ring)
Material (main body): Zinc chromate
Weight (g): 5.7
Type: with Female Thread
Material (bush): special copper alloy
Thread direction: right thread
Oil supply type: Lubrication-Free｣ｬtype
Dynamic load capacity (N): 3500
Static load capacity (N): 2480
Ball diameter (mm): 7.938

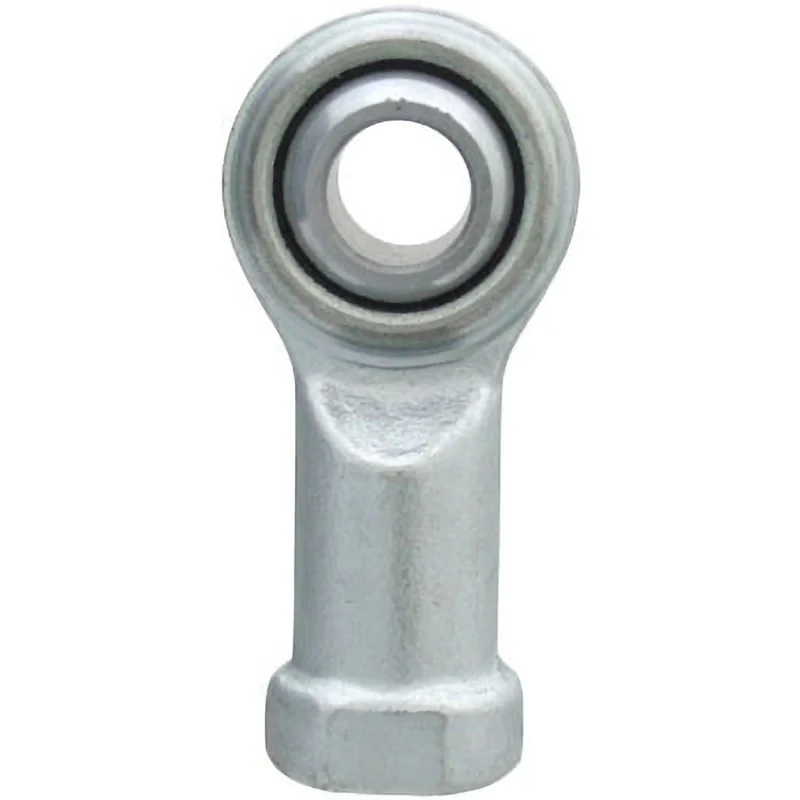

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has internal or external threads processed into the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ and packaging machines.
