Description

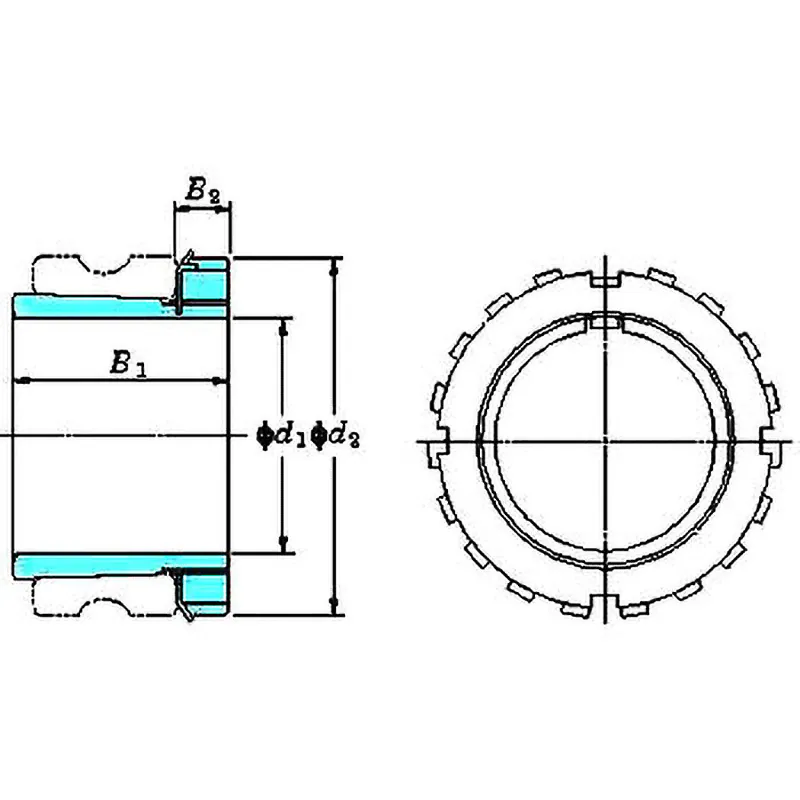

Dimensions B1 (mm): 90
Dimensions B2 (mm): 19
Dimensions d2 (mm): 125
Axis hole diameter d1 (mm): 85
Usage: Fixing the axis
Type: Adapter
Type H
Compatibility: Sleeve A2319X
RoHS Directive (10 substances compliance): Compliant
Compatibility: Bearing UK319, UKP319, UKF319
Used nut: AN19
Used washer: AW19X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
