Description

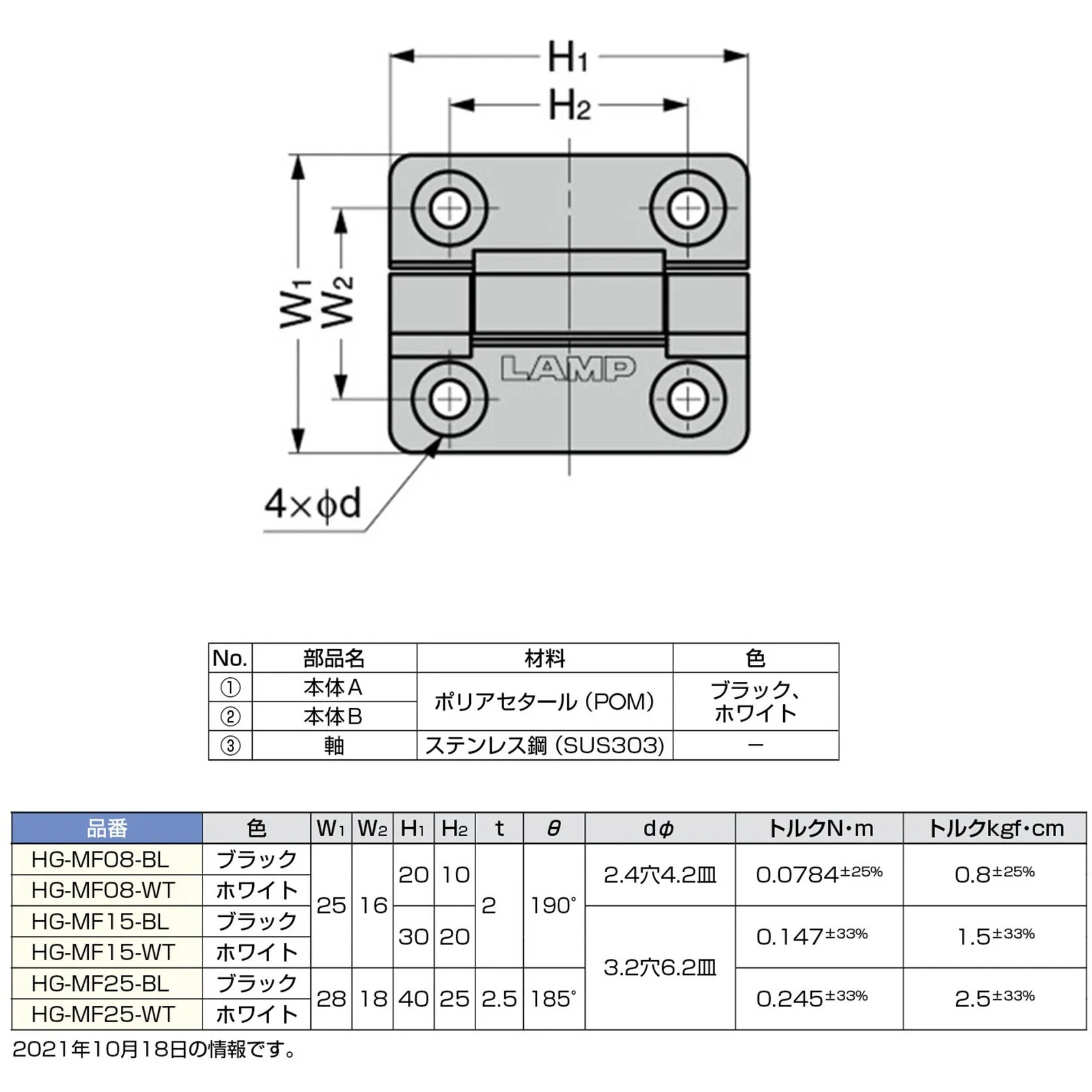

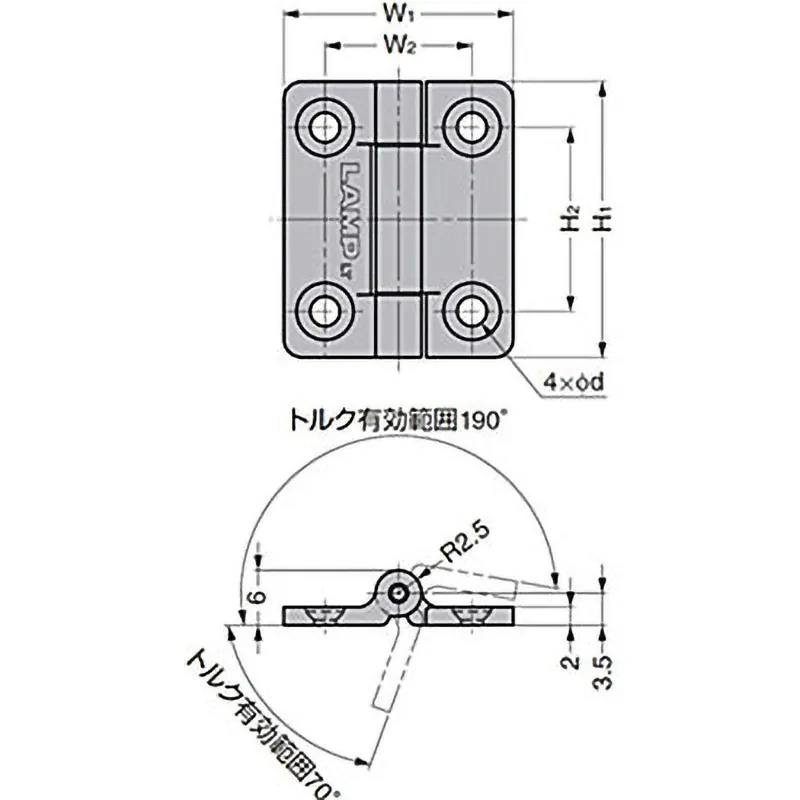

Dimensions H1 (mm): 20
Dimensions H2 (mm): 10
Dimensions W1 (mm): 25
Dimensions W2 (mm): 16
Dimensions d (mm): 2.4 hole 4.2 plate
Dimensions t (mm): 2
Material: (Main body A, Main body B) Polyacetal (POM), (Shaft) Stainless Steel (SUS304)
Color: Black
Application: Small lightweight doors for office equipment and store fixtures
Trusco part number: 486-0918
Weight (g): 2
Type: Flat hinge type
Torque value N*cm (kgf cm): 7.84 (0.8)
The manufacturer has passed a 20,000 opening and closing test.

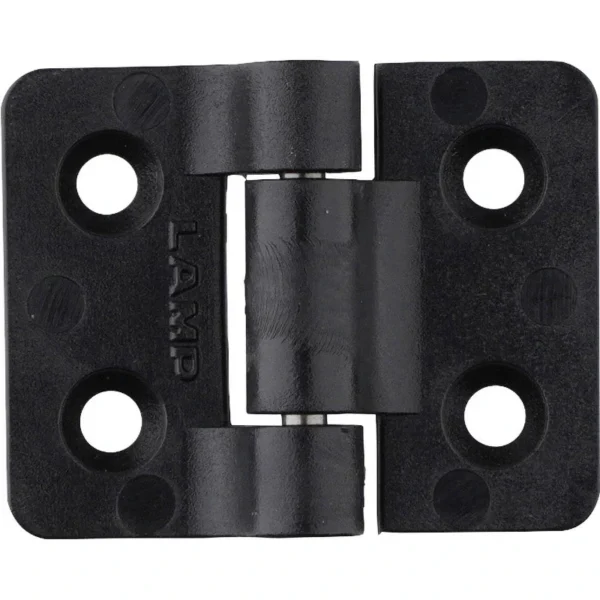

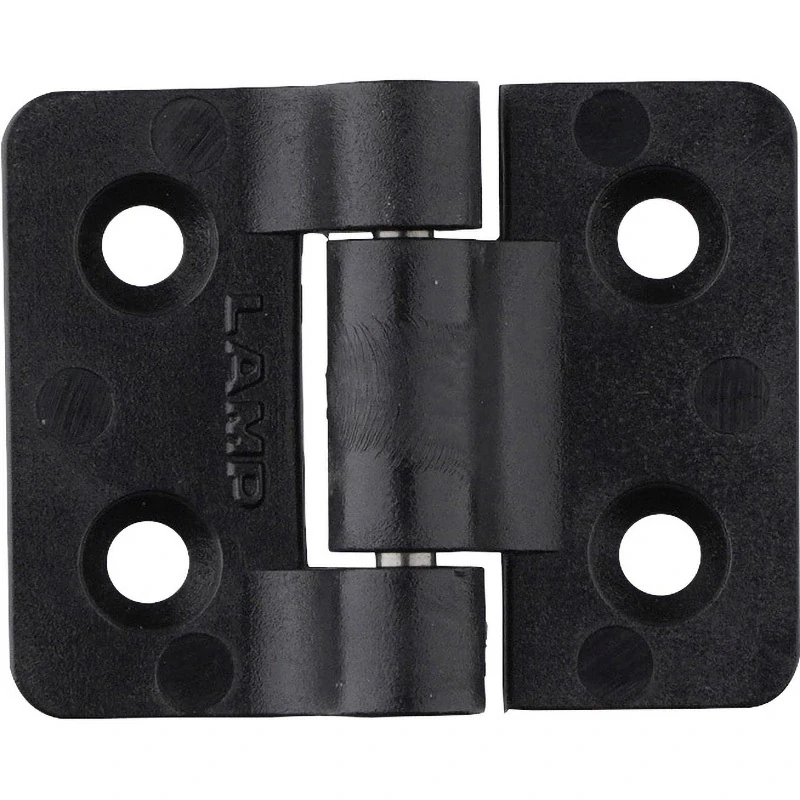

This is a compact Torque Hinge made of Resin.
