Description

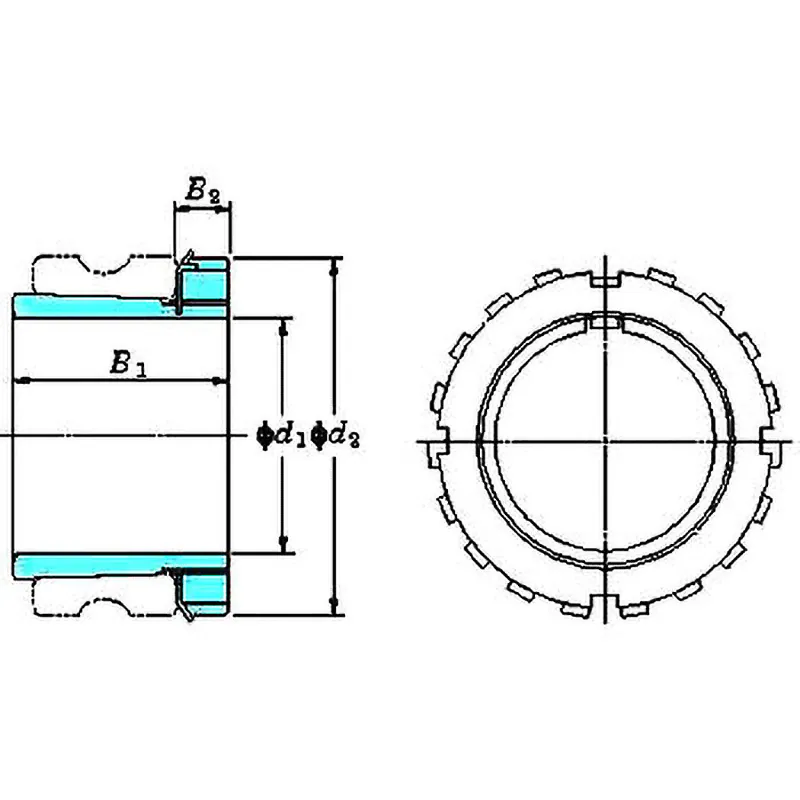

Dimensions B1 (mm): 65
Dimensions B2 (mm): 18
Dimensions d2 (mm): 120
Axle hole diameter d1 (mm): 80
Usage: Fixing the axle

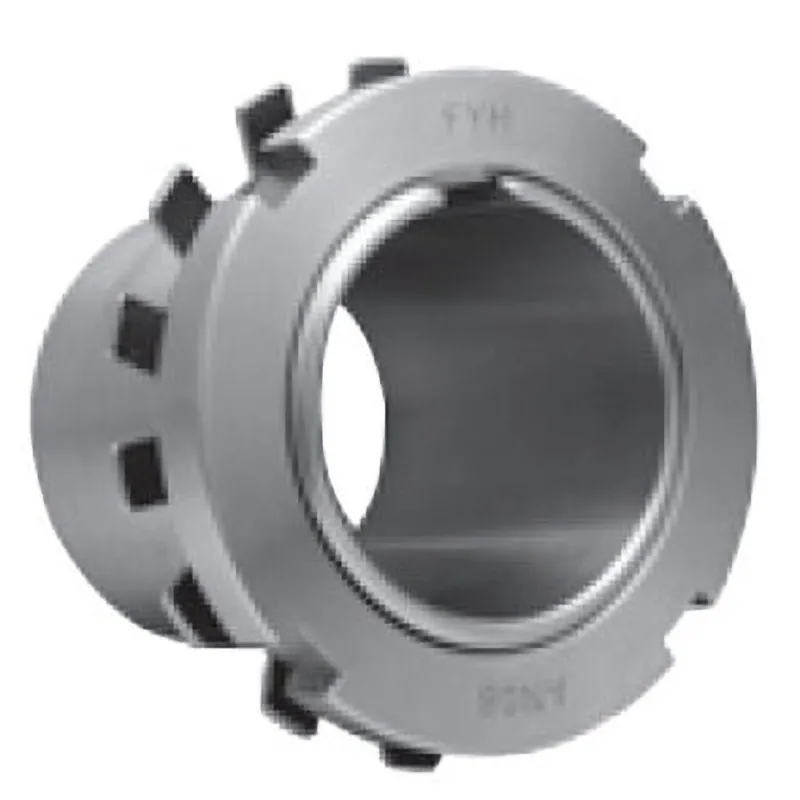

Type: Adapter
Type H
Compatibility: Sleeve A318X
RoHS directive (10 substances compliant): Compliant
Compatibility: Bearing UK218, UKP218, UKF218
Nut used: AN18
Washer used: AW18X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
