Description
Description
Quantity: 1 piece
External Dimension D (mm): 20
Material (Cover): ABS Resin UL94HB
Material (Body): ABS Resin (UL94HB)
Part Number: SW-20B
Type: Type B
Operating Temperature Range (Celsius degrees): -10 to 60
External Dimension D (mm): 20
External Dimension W (mm): 15
External Dimension H (mm): 15
Finish: Full Surface Textured Finish
Material (Cover): ABS Resin UL94HB
Flammability: –
Material (Body): ABS Resin (UL94HB)

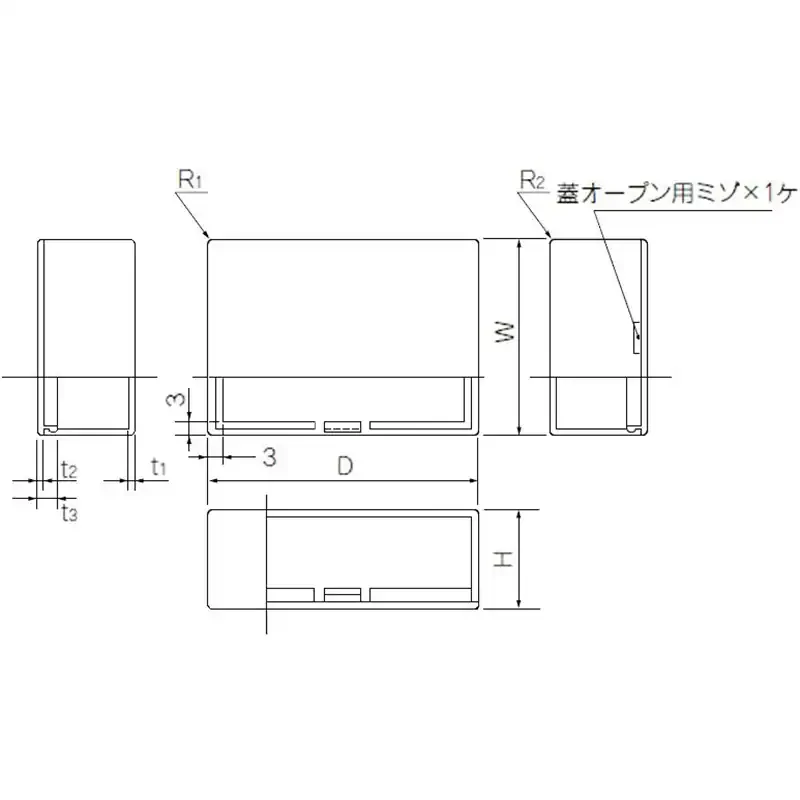

Dimension R1 (mm): 1.25
Dimension R2 (mm): 1.25
Dimension t1 (mm): 1.3
Dimension t2 (mm): 1.3
Dimension t3 (mm): 4.5
Color (Cover): Black
Compatible Body Color: Black
RoHS Directive (10 Substances Compliance): Compliant
Characteristics: General-Purpose Type
Weight (g): 2
Effective Dimension (Width) (mm): 10 (Internal)
Effective Dimension (Depth) (mm): 14.8 (Internal)
Effective Dimension (Height) (mm): 9 (Internal)

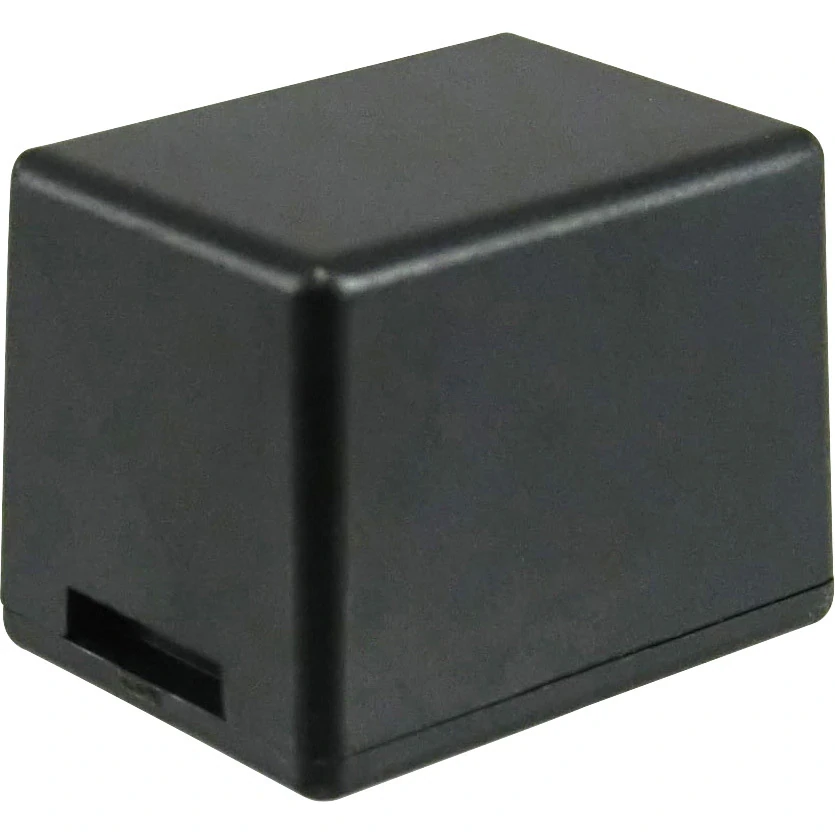

One-touch Open-Close Structure.
Spacious internal space available for use.
Small case with multi-purpose type.
