Description

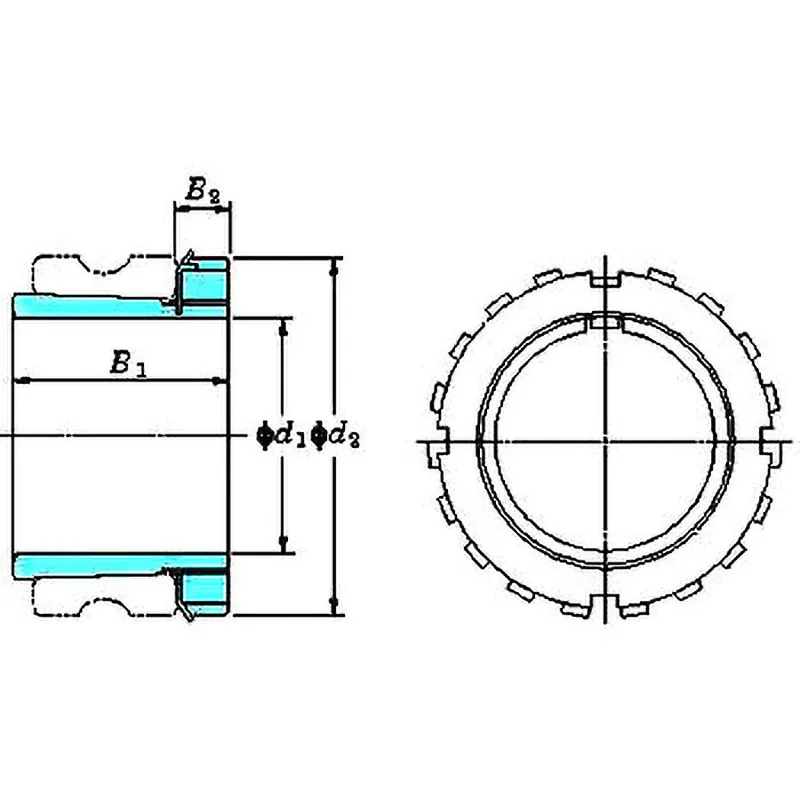

Dimensions B1 (mm): 82
Dimensions B2 (mm): 18
Dimensions d2 (mm): 110
Axis hole diameter d1 (mm): 75
Usage: Fixing the axis

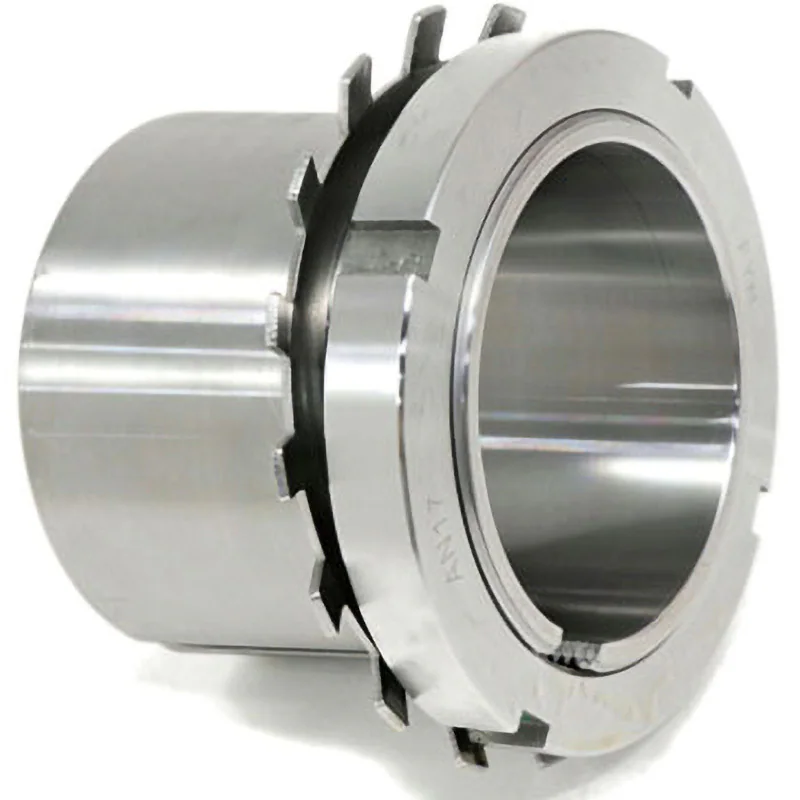

Type: Adapter
Type H
Compatibility: Sleeve A2317X
RoHS Directive (10 substances compliant): Compliant
Compatibility: Bearing UK217, UKP217, UKF217
Used nut: AN17
Used washer: AW17X
Manufacturer
Washers, sleeves, and lock nuts can be replaced individually.
