Description
Material: Cold Rolled Steel Plate (SPCC)
Compatible Door Height (mm): 400
Compatible Door Width (mm): 200
Compatible Door Weight (kg): 11

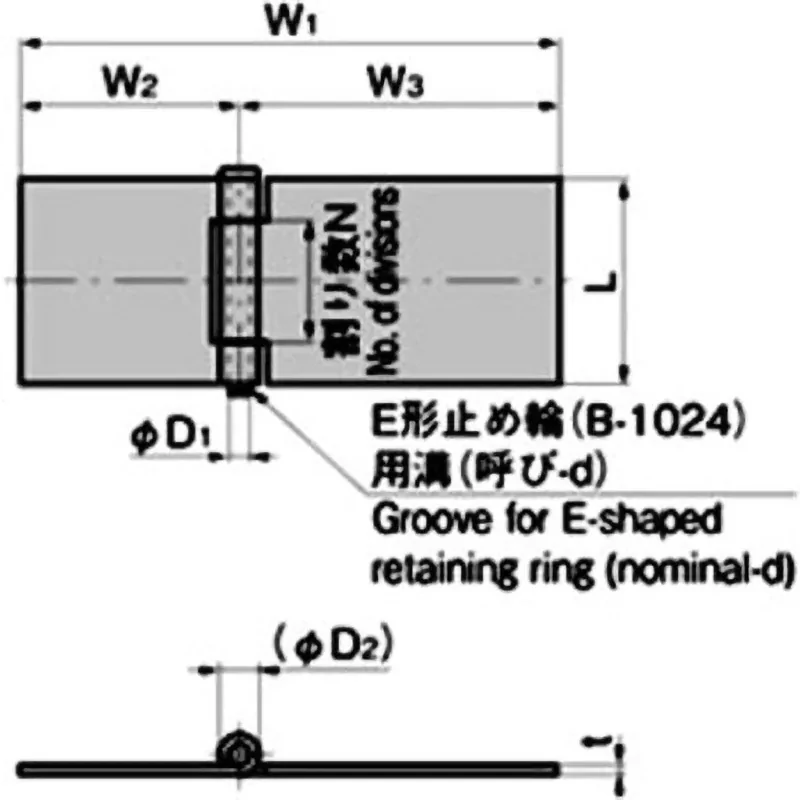

Dimension L (mm): 51
Dimension W1 (mm): 128
Dimension W2 (mm): 52
Dimension W3 (mm): 76
Weight (kg): Door: 11
Weight (g): 120
Dimension t (mm): 2
Dimension D1 (mm): 5
Dimension D2 (mm): 9.5
Dimension N (mm): 3
Door Dimensions (Vertical * Horizontal) (mm): 400 * 200
Surface Finish: Zinc Plated Chromate Treatment (MFZn-C)
Takigen Code: 10142
