Description
Material: Cold Rolled Steel Plate (SPCC)
Compatible Door Height (mm): 400
Compatible Door Width (mm): 200
Compatible Door Weight (kg): 26

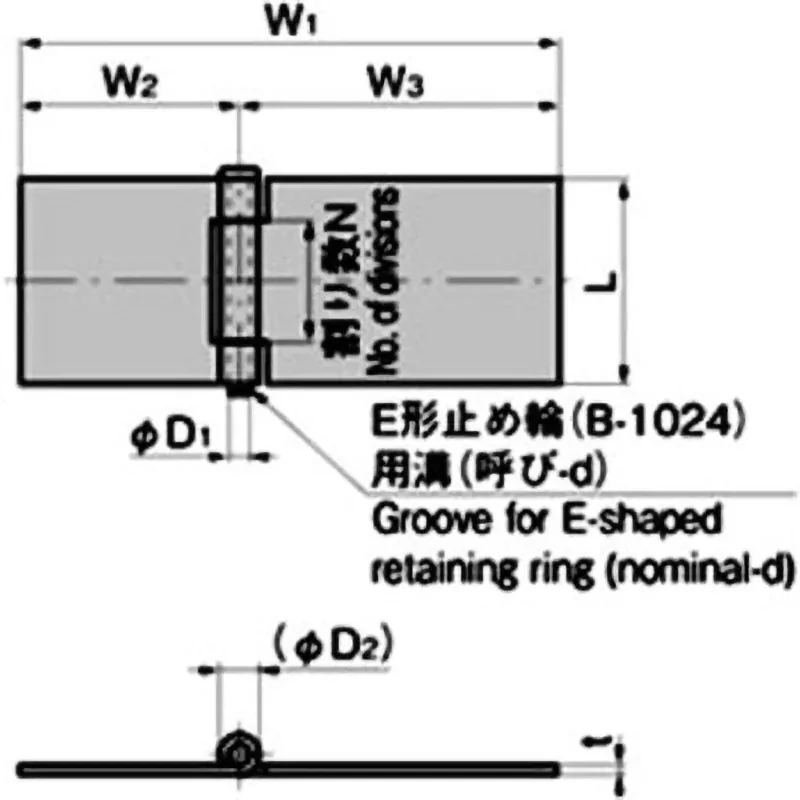

Dimension L (mm): 65
Dimension W1 (mm): 185
Dimension W2 (mm): 30
Dimension W3 (mm): 153
Weight (kg): Door: 26
Weight (g): 310
Dimension t (mm): 3
Dimension D1 (mm): 6
Dimension D2 (mm): 12.5
Dimension N (mm): 5
Door Dimension (Vertical*Horizontal) (mm): 400*200
Surface Finish: Zinc Plated Chromate Treatment (MFZn-C)
Takigen Code: 10141
